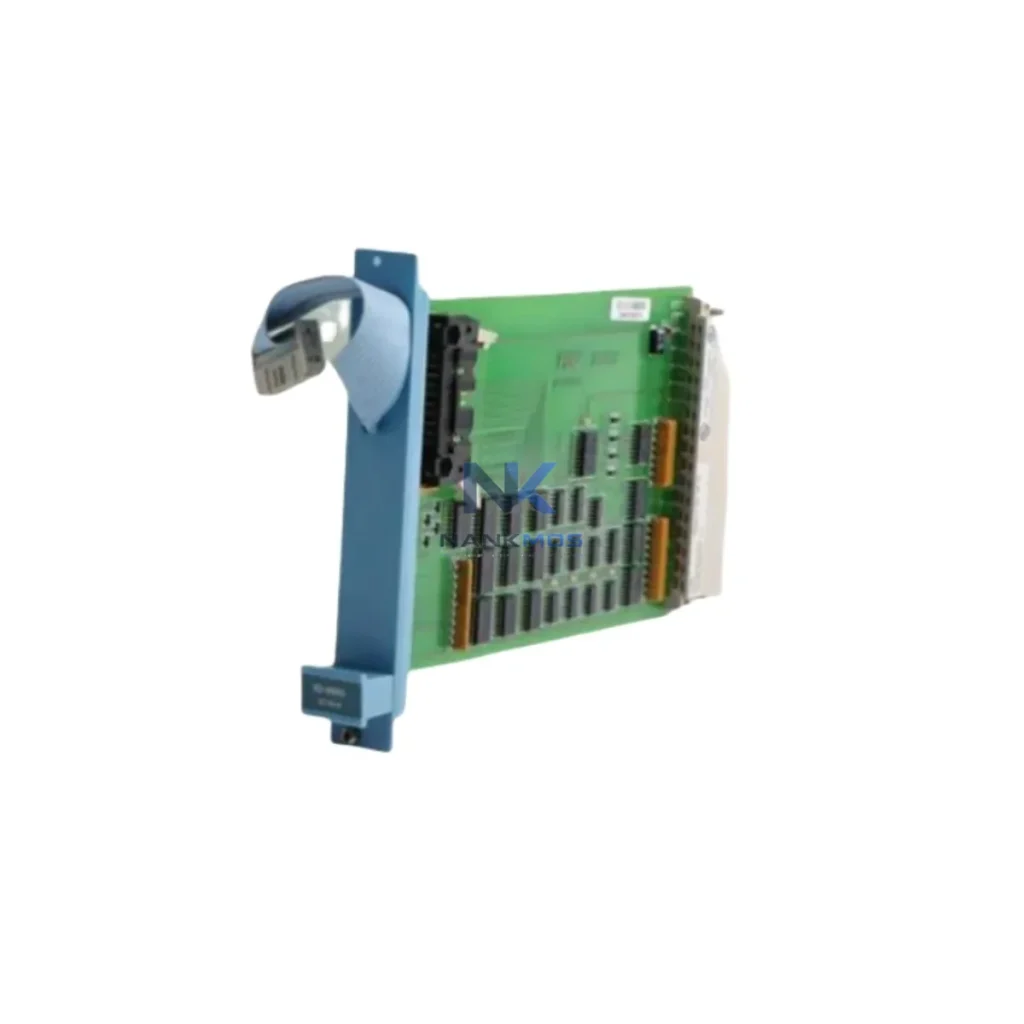

Honeywell FS-SDI-1624 Safety PLC Module

Product Details

FS-SDI-1624 Product Description

The Honeywell FS-SDI-1624 is a 16-channel safety-rated digital input module engineered for seamless integration within the Honeywell Safety Manager FS platform — a high-integrity safety instrumented system (SIS) widely deployed across oil & gas, petrochemical, power generation, and process industries. Designed to meet IEC 61511 and IEC 61508 functional safety requirements, the FS-SDI-1624 serves as a critical field interface layer within a layered safety control architecture, acquiring discrete on/off signals from field-mounted sensors, emergency shutdown (ESD) devices, pressure switches, and position transmitters, then delivering them with deterministic reliability to the Safety Manager FS CPU for real-time safety logic execution.

In modern safety-critical automation environments, the digital input layer is not merely a signal conduit — it is the first line of architectural integrity. The FS-SDI-1624 is built to sustain this role across demanding operational cycles, offering robust signal conditioning, channel-level diagnostics, and fault-tolerant design that supports both simplex and redundant I/O configurations. Its modular form factor integrates directly into the Safety Manager FS chassis, enabling engineers to scale I/O capacity without disrupting the existing control architecture or requiring additional marshalling infrastructure.

The FS-SDI-1624 achieves its full architectural value when deployed as part of a cohesive Safety Manager FS system. At the control layer, the Honeywell FS-CPU-0001 (Safety Manager FS Central Processing Unit) executes the safety application logic, processing all digital input states acquired by the FS-SDI-1624 against pre-configured safety function blocks and cause-and-effect matrices. The CPU communicates with I/O modules via the internal backplane, ensuring deterministic scan cycle performance even under high-channel-count configurations.

For power distribution, the Honeywell FS-PSU-0024 (24 VDC Power Supply Unit) provides regulated, redundant power to the chassis, ensuring that the FS-SDI-1624 and co-resident modules maintain continuous operation during utility fluctuations or single-supply failures. Redundant power architectures are strongly recommended in SIL 3 applications where power loss to the I/O layer could compromise safety function availability.

On the output side, the Honeywell FS-SDO-0824 (Safety Digital Output Module) works in tandem with the FS-SDI-1624 to complete the safety loop — receiving commands from the CPU and actuating final elements such as solenoid valves, motor contactors, and ESD actuators. The pairing of digital input and digital output modules within the same chassis minimizes signal latency and simplifies loop integrity verification during commissioning and periodic proof testing.

For analog field signals — such as 4–20 mA transmitters measuring pressure, temperature, or flow — the Honeywell FS-SAI-1620 (Safety Analog Input Module) complements the FS-SDI-1624 within the same rack, providing a unified I/O architecture that handles both discrete and continuous process variables under a single safety controller. This co-location reduces wiring complexity and supports a consistent diagnostic framework across all I/O types.

Communication beyond the local safety controller is managed through the Honeywell FS-COM-0001 (Communication Gateway Module), which bridges the Safety Manager FS platform to plant-wide DCS networks, SCADA systems, and historian servers via Modbus TCP, PROFIBUS DP, or OPC DA/UA protocols. This gateway enables the FS-SDI-1624's channel status and diagnostic data to be surfaced in operator workstations and asset management systems without compromising the safety network's isolation integrity.

For HMI integration, the Honeywell Experion PKS operator station or compatible third-party SCADA platforms can display real-time digital input states, alarm conditions, and module health indicators sourced from the FS-SDI-1624, enabling operators to monitor safety system status from the control room. In facilities requiring local panel indication, the Honeywell FS-DIM-0001 (Diagnostic Interface Module) provides on-chassis LED status and fault annunciation for rapid field-level troubleshooting without requiring a laptop or engineering workstation connection.

Chassis expansion is supported through the Honeywell FS-REM-0001 (Remote I/O Expansion Module), which allows additional FS-SDI-1624 units to be deployed in remote marshalling cabinets while maintaining synchronous communication with the central Safety Manager FS CPU. This architecture is particularly valuable in large-footprint facilities — such as offshore platforms, LNG terminals, or refinery units — where field devices are distributed across multiple process areas.

Terminal block assemblies, including the Honeywell FS-TBK series, provide the field wiring interface for the FS-SDI-1624, supporting both screw-type and spring-clamp terminations for reliable, vibration-resistant connections in industrial cabinet environments. Proper terminal block selection and torque specification are essential for maintaining channel-level contact integrity across the module's rated service life.

Oil & Gas and Petrochemical: In upstream and downstream hydrocarbon processing, the FS-SDI-1624 is deployed within Emergency Shutdown (ESD) and Fire & Gas (F&G) systems to monitor high-integrity discrete inputs — including wellhead pressure switches, pipeline isolation valve position feedback, gas detector relay outputs, and manual call point signals. Its SIL 2/3 capability ensures that safety functions such as blowdown initiation, compressor trip, and flare system activation are executed with the required probability of failure on demand (PFD) performance.

Power Generation and Utilities: In thermal power plants, combined-cycle facilities, and grid substations, the FS-SDI-1624 acquires turbine protection signals, generator breaker status, and transformer fault relay outputs, feeding them into the Safety Manager FS for turbine trip logic and load shedding functions. Its high diagnostic coverage supports the periodic proof test intervals required by IEC 61511 for safety instrumented functions (SIFs) in power generation applications.

Chemical and Pharmaceutical Manufacturing: Batch and continuous chemical processes rely on the FS-SDI-1624 to monitor reactor interlock inputs — including agitator run confirmation, cooling water flow switches, and pressure relief valve position — ensuring that process safety management (PSM) requirements under OSHA 1910.119 and equivalent international standards are met. The module's channel-level diagnostics support the documentation requirements of functional safety audits and safety case reviews.

Water and Wastewater Treatment: In municipal and industrial water treatment facilities, the FS-SDI-1624 monitors pump run/fail status, valve open/close confirmation, and level switch inputs for overflow and dry-run protection functions. Its robust operating temperature range and sealed module design support deployment in humid, chemically aggressive cabinet environments typical of water treatment infrastructure.

Mining and Metals: In underground mining and surface mineral processing, the FS-SDI-1624 supports conveyor belt safety interlock systems, hoisting equipment emergency stop circuits, and ventilation fan status monitoring. Its ability to operate reliably in high-vibration, dusty environments — when properly installed within sealed control enclosures — makes it a preferred choice for safety system integrators in the mining sector.

Q1: Can the FS-SDI-1624 be used in a redundant I/O configuration with the Safety Manager FS, and what are the wiring implications? Yes. The Safety Manager FS platform supports redundant I/O configurations where two FS-SDI-1624 modules are installed in parallel, each reading the same field signals through separate field termination assemblies. In a 1oo2 (one-out-of-two) or 2oo3 voting architecture, redundant digital input modules eliminate single-point-of-failure risks at the I/O layer. Wiring must be routed through separate cable trays and terminated on independent terminal blocks to maintain physical separation between redundant channels. Consult the Safety Manager FS System Engineering Manual for chassis slot assignment rules and redundancy configuration parameters.

Q2: How does the FS-SDI-1624 support proof testing requirements under IEC 61511, and what is the recommended test interval? The FS-SDI-1624 incorporates automatic online diagnostics that continuously verify channel integrity, input signal plausibility, and internal module health without interrupting safety function execution. These diagnostics contribute to the module's diagnostic coverage (DC) metric, which reduces the required manual proof test frequency. For most SIL 2 applications, a proof test interval of 1 to 3 years is achievable, depending on the overall SIF architecture and PFD target. Manual proof testing involves injecting known input states at the field terminal and verifying correct response at the CPU logic level. NANKMOS supplies FS-SDI-1624 units with full factory acceptance test (FAT) documentation to support your proof test baseline records.

Q3: What is the lead time and warranty coverage for the FS-SDI-1624 supplied by NANKMOS, and is expedited shipping available for critical maintenance requirements? NANKMOS maintains ready stock of the FS-SDI-1624 to support both planned procurement and emergency maintenance requirements. All units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures, with pre-shipment functional verification testing performed on every unit. Expedited global shipping is available to all major industrial regions, including North America, Europe, the Middle East, and Asia-Pacific. For urgent requirements, contact NANKMOS directly to confirm current stock availability and arrange priority dispatch. Each shipment includes a test report and traceability documentation to support your site acceptance testing (SAT) and maintenance records.
