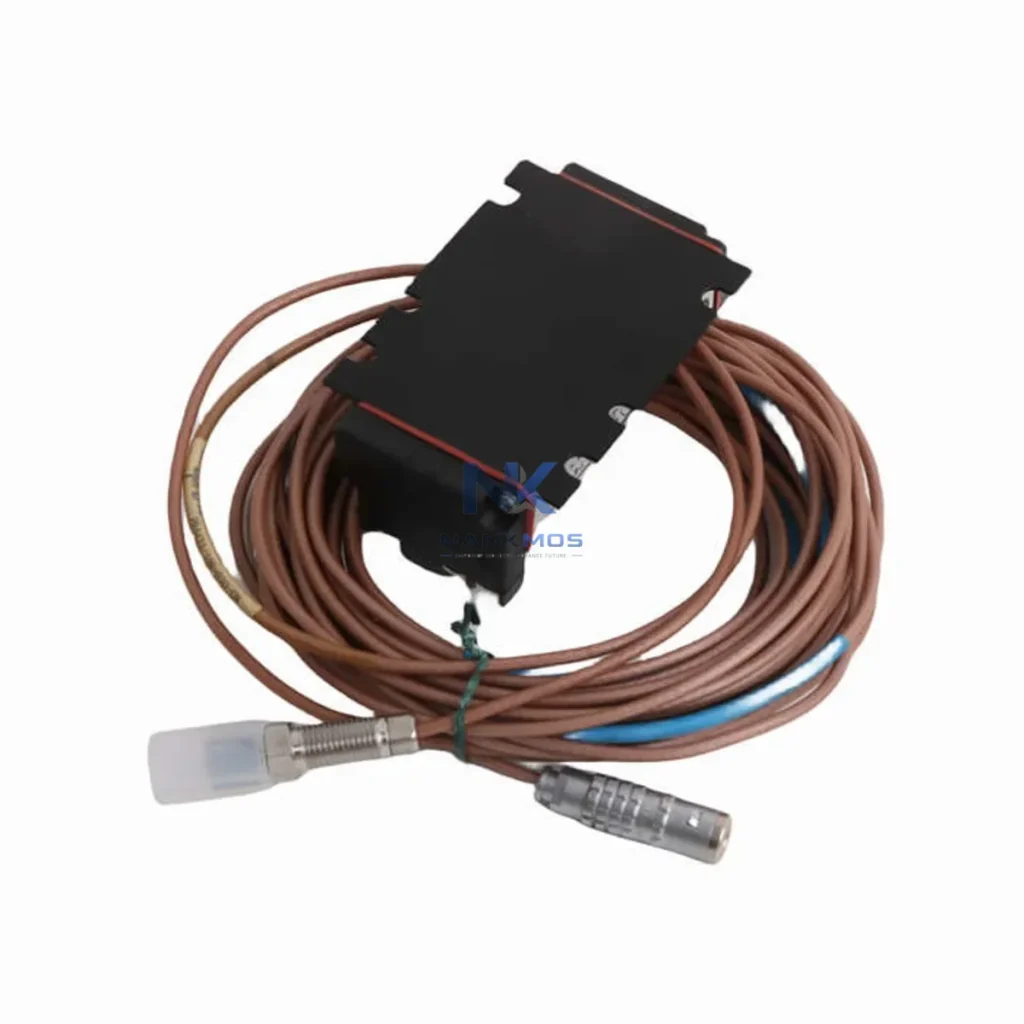

Epro PR6423/10R-141 CON031 Eddy Current Sensor

Product Details

PR6423/10R-141 CON031 Product Description

The Epro PR6423/10R-141 CON031 eddy current sensor is not a standalone measurement device — it is a precision front-end transducer engineered to operate as an integral node within a layered machinery protection and condition monitoring architecture. Its system value is fully realized only when deployed alongside the complementary modules that form a complete vibration monitoring and control platform.

At the signal acquisition layer, the PR6423/10R-141 CON031 probe works in direct coordination with the PR6426 driver/oscillator module, which supplies the high-frequency excitation current to the probe coil and conditions the raw gap-voltage signal for downstream processing. The CON031 connector configuration ensures mechanical and electrical compatibility with the PR6426 driver, maintaining signal chain integrity across the full cable run. This probe-driver pairing is the foundational measurement cell of the PR6423 series architecture.

At the signal processing and monitoring layer, the conditioned output from the PR6426 driver feeds directly into rack-mounted monitor modules such as the Bently Nevada 3500/42M or 3500/40M proximity monitor cards, which perform real-time vibration amplitude analysis, gap measurement, and alarm/trip logic. These monitors integrate into the Bently Nevada 3500 Series rack system — a modular, 19-inch rack platform that accommodates power supply modules, communication gateway cards, and I/O interface modules in a unified chassis. The rack's 3500/15 power supply module provides regulated DC power to all installed cards, ensuring stable operation across the full sensor-to-monitor signal chain.

At the communication and control integration layer, the 3500 rack system connects to plant-level DCS or safety systems via the 3500/92 communication gateway, which supports Modbus TCP, Profibus DP, and OPC-DA protocols. This gateway enables the vibration data acquired by the PR6423/10R-141 CON031 to be transmitted in real time to ABB System 800xA, Emerson DeltaV, or Siemens PCS 7 distributed control systems, where it is integrated into plant-wide process control and safety interlock logic. The seamless data flow from the eddy current probe through to the DCS historian ensures that machinery health data is available for both real-time operator response and long-term trend analysis.

At the safety and protection layer, the vibration signals from the PR6423/10R-141 CON031 are routed through the monitor's relay output cards — such as the 3500/32 relay module — to hardwired trip circuits connected to turbine trip solenoids, compressor anti-surge valves, or pump shutdown contactors. This direct hardwired protection path operates independently of the DCS communication network, ensuring that machinery protection response times remain within the millisecond range required by API 670 machinery protection standards.

At the HMI and diagnostics layer, operators interact with the vibration monitoring system through System 1 Evolution condition monitoring software or the Bently Nevada TDIXconnX interface, which provides real-time Bode plots, orbit diagrams, trend displays, and alarm management dashboards. These tools allow maintenance engineers to correlate the PR6423/10R-141 CON031 sensor data with process variables — speed, load, temperature — to identify developing faults such as rotor imbalance, misalignment, oil whirl, or bearing wear before they escalate to unplanned shutdowns.

At the field wiring and installation layer, the PR6423/10R-141 CON031's 10-meter rigid extension cable is routed through conduit to a PR9376 junction box or terminal head assembly, where field wiring is terminated and shielded against electromagnetic interference from adjacent motor drives, transformers, and high-current bus bars. Proper grounding of the cable shield at a single point — typically at the junction box — is essential to prevent ground loop noise from corrupting the low-level gap voltage signal.

This contextual integration approach — spanning the probe, driver, monitor, rack, gateway, DCS, safety relay, HMI, and field wiring layers — defines the Epro PR6423/10R-141 CON031's role not as a commodity sensor but as a precision architecture component whose performance is inseparable from the system it serves.

The Epro PR6423/10R-141 CON031 eddy current sensor is deployed across a wide range of heavy industrial rotating machinery applications where continuous, non-contact shaft monitoring is required to maintain operational safety and equipment reliability.

In power generation — including gas turbines, steam turbines, and hydro generators — the PR6423/10R-141 CON031 monitors shaft radial vibration and axial position at critical bearing locations. Turbine OEMs and power plant operators rely on the PR6423 series to meet API 670 and ISO 7919 machinery protection requirements, with the sensor's high-temperature probe tip rating supporting installation in hot-section bearing pedestals where ambient temperatures can exceed 80°C.

In petrochemical and refinery applications, the PR6423/10R-141 CON031 is installed on centrifugal compressors, expanders, and high-speed pumps in ATEX/IECEx Zone 1 and Zone 2 classified areas. The sensor's non-contact measurement principle eliminates mechanical wear and ensures continuous monitoring without process interruption, supporting the extended run-length targets of modern refinery turnaround programs.

In LNG and gas processing plants, the PR6423/10R-141 CON031 is used on main refrigerant compressor trains — including MCR and propane compressors — where shaft vibration monitoring is a critical input to the compressor control system's anti-surge and load-sharing logic. The sensor's signal is integrated with the Compressor Control Corporation (CCC) Tri-Sen or Woodward ProTech turbine control systems to provide coordinated machinery protection and process optimization.

In mining and minerals processing, the PR6423/10R-141 CON031 monitors large SAG mill pinion bearings, ball mill trunnion bearings, and crusher main shaft assemblies, where early detection of bearing defects and shaft misalignment can prevent catastrophic failures that result in weeks of unplanned downtime and multi-million-dollar repair costs.

In marine and offshore applications — including LNG carrier propulsion systems, offshore platform gas compression, and FPSO power generation — the PR6423/10R-141 CON031 operates in high-vibration, high-humidity environments where its robust stainless steel probe body and sealed cable assembly provide reliable long-term performance without maintenance intervention between dry-dock inspection intervals.

Q1: Is the PR6423/10R-141 CON031 directly compatible with Bently Nevada 3500 series monitor racks, and what driver module is required? The PR6423/10R-141 CON031 probe is designed for use with the PR6426 driver/oscillator module, which provides the excitation signal and signal conditioning required for the 3500 series proximity monitor cards (3500/40M, 3500/42M). The CON031 connector configuration is compatible with standard PR6426 driver input connectors. When integrating into a Bently Nevada 3500 rack, verify that the monitor card's input configuration matches the PR6426 driver's output voltage range (typically -18V DC gap voltage at 200 mV/mil sensitivity). All units supplied by NANKMOS are pre-shipment tested for signal chain continuity and covered by a 12-Month Warranty.

Q2: Can the PR6423/10R-141 CON031 be used as a direct replacement for existing PR6423 series probes in a running plant without recalibration of the monitor system? Yes — provided the replacement probe is the same model (PR6423/10R-141 CON031) with the same cable length (10R = 10 meters) and connector configuration (CON031). The PR6423 series uses a standardized sensitivity coefficient (200 mV/mil or 8 V/mm) that is matched to the PR6426 driver and 3500 monitor card calibration. Substituting a different cable length or probe tip diameter would require recalibration of the monitor's gap voltage-to-displacement conversion. NANKMOS supplies verified, OEM-specification stock to ensure drop-in compatibility with existing PR6423 architecture installations.

Q3: What is the recommended maintenance and inspection interval for the PR6423/10R-141 CON031 in a continuous-duty turbine application, and how does NANKMOS support long-term spare parts availability? For continuous-duty turbine and compressor applications, the PR6423/10R-141 CON031 probe and extension cable should be inspected during each planned maintenance outage (typically every 2–4 years for gas turbines, annually for steam turbines in cycling service). Inspection should include visual examination of the probe tip for erosion or contamination, cable jacket integrity check, and connector pin condition assessment. The PR6426 driver module should be bench-tested against a reference gap standard to verify sensitivity coefficient stability. NANKMOS maintains verified inventory of PR6423 series probes, drivers, and connector assemblies to support both planned outage spares and emergency replacement requirements, with all stock covered by a 12-Month Warranty from date of dispatch.
