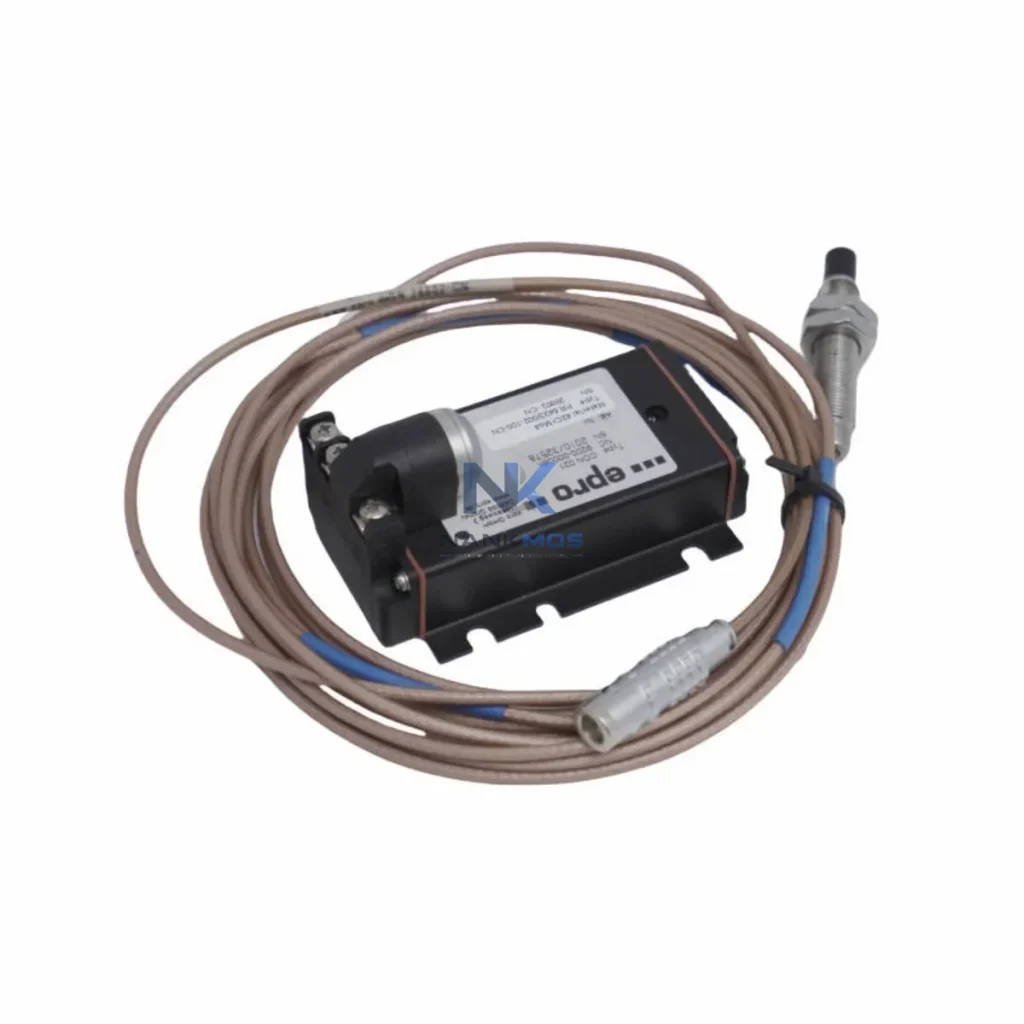

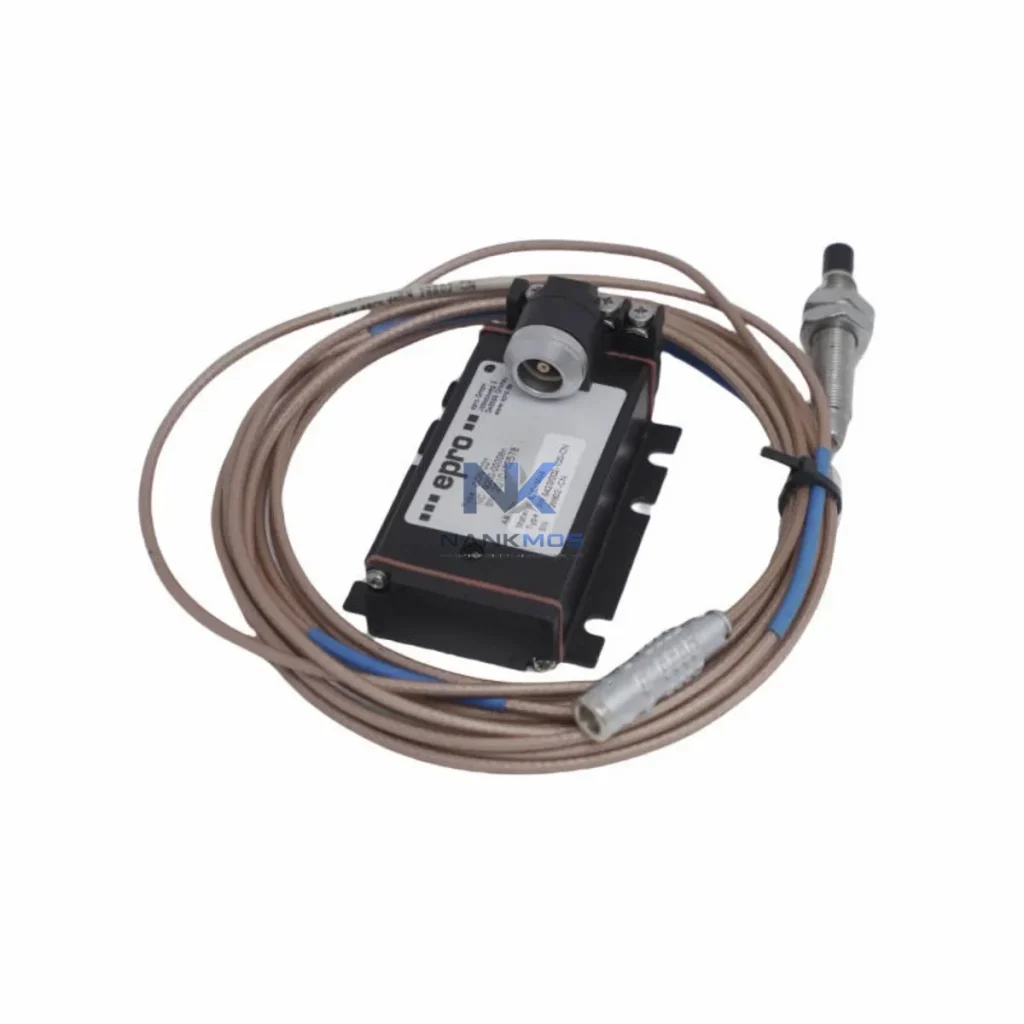

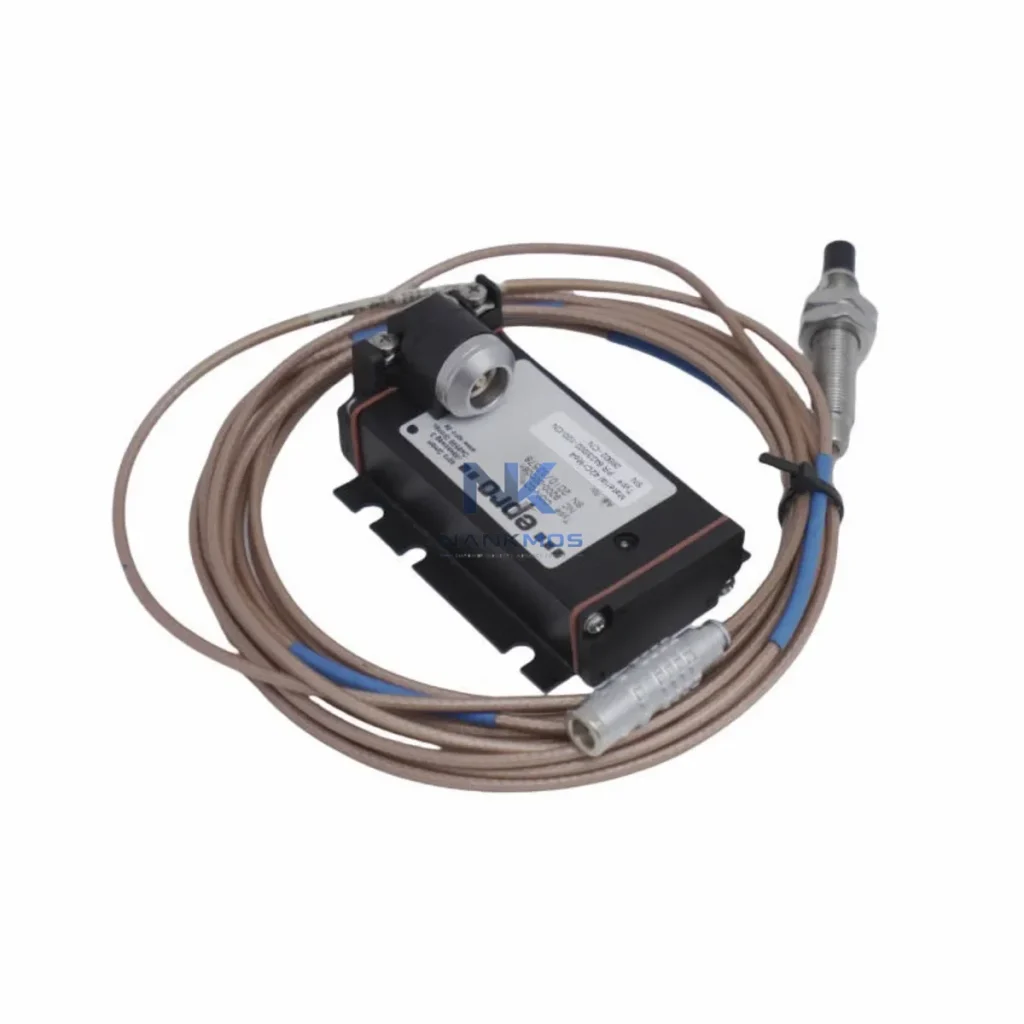

EPRO PR6424/000-000 CON21 Eddy Current Sensor

Product Details

PR6424/000-000 CON21 Product Description

The EPRO PR6424/000-000 CON21 is a precision eddy current displacement sensor engineered for seamless integration into the MMS6000 modular machinery monitoring system. Designed to deliver continuous, non-contact shaft displacement and vibration measurements, this sensor plays a critical role in the control architecture of rotating machinery protection systems across heavy industry. Its system-matched signal output, robust mechanical construction, and validated compatibility with the MMS6000 platform make it an essential component for engineers building or maintaining high-availability monitoring architectures.

In modern industrial automation, no sensor operates in isolation. The PR6424/000-000 CON21 is conceived as a layered system element — one that contributes to signal integrity at the I/O layer, feeds structured data to the control layer, and supports diagnostic and protection decisions at the HMI and execution layers. Understanding its role within the full automation stack is essential for correct deployment, long-term reliability, and efficient maintenance planning.

The PR6424/000-000 CON21 achieves its full value when deployed within a coherent MMS6000 architecture. At the control layer, the MMS6000 central processing unit — such as the MMS6823 or MMS6312 signal conditioning module — receives the analog displacement signal from the PR6424 sensor and converts it into a calibrated engineering value. This value is then made available to the plant DCS or PLC via the MMS6350 PROFIBUS gateway module or the MMS6360 Modbus TCP communication module, enabling real-time integration with Siemens S7-400 or ABB AC800M control platforms.

At the I/O layer, the PR6424/000-000 CON21 pairs with the MMS6220 dual-channel vibration input module or the MMS6110 proximity input module, which provides the excitation signal and processes the raw sensor output. Correct channel assignment and cable routing — typically via PR9376 extension cables — are critical to maintaining signal linearity and minimizing electromagnetic interference in high-noise environments such as motor control centers or variable frequency drive (VFD) cabinets.

The power layer is served by the MMS6004 power supply module, which delivers regulated 24 VDC to the sensor excitation circuit and the signal conditioning modules. Redundant power configurations using dual MMS6004 units with automatic switchover are recommended for critical machinery protection applications in oil and gas or power generation facilities.

At the HMI layer, the processed displacement and vibration data from the PR6424 sensor chain is visualized on the MMS6823 display module or forwarded to plant-level SCADA systems via OPC-UA or Modbus TCP. Alarm thresholds — typically set at API 670 alert and danger levels — are configured within the MMS6000 system software and can trigger relay outputs through the MMS6840 relay output module for automatic machine trip or load shedding.

For redundancy and protection layer design, the PR6424/000-000 CON21 is often deployed in XY probe pairs alongside a PR6424/010-000 CON21 (10 mm range variant) or a PR6426 series thrust position sensor, providing full radial and axial shaft monitoring coverage. This multi-sensor architecture ensures that no single point of failure can compromise machinery protection, a requirement mandated by IEC 61511 and API 670 standards in critical rotating equipment applications.

At the maintenance and diagnostics layer, the MMS6000 system's built-in self-test and channel health monitoring functions allow maintenance engineers to verify sensor gap, cable continuity, and signal conditioning module status without interrupting machine operation. Integration with the System 1 Evolution condition monitoring software enables trend analysis, predictive maintenance scheduling, and automated work order generation based on vibration signature changes detected by the PR6424 sensor.

Power Generation: In gas turbine and steam turbine protection systems, the PR6424/000-000 CON21 monitors journal bearing shaft displacement in real time. Paired with the MMS6000 platform, it provides the continuous vibration data required for API 670-compliant overspeed and high-vibration trip logic, protecting multi-million-dollar assets in combined-cycle power plants.

Oil & Gas / Petrochemical: Centrifugal compressors and high-speed pumps in refinery and LNG processing facilities rely on eddy current sensors for non-contact rotor monitoring. The PR6424 CON21's stainless steel housing and wide operating temperature range make it suitable for hazardous area installations (ATEX/IECEx certified variants available), where signal reliability and long-term stability are non-negotiable.

Steel & Metallurgy: Rolling mill drive trains and continuous casting machine drives operate under extreme mechanical stress. The PR6424/000-000 CON21 provides the shaft eccentricity and bearing wear data needed to schedule predictive maintenance intervals, reducing unplanned downtime in high-throughput production environments.

Water & Wastewater Treatment: Large vertical pump stations and blower systems in municipal water treatment plants benefit from the PR6424's ability to detect early-stage bearing degradation. Integration with the MMS6000 system allows remote monitoring via SCADA, enabling lean maintenance teams to manage multiple pump stations from a central control room.

Marine & Offshore: Shipboard propulsion systems and offshore platform compressor trains require vibration monitoring solutions that can withstand high humidity, salt spray, and continuous mechanical vibration. The PR6424/000-000 CON21's robust IP67 construction and validated MMS6000 compatibility make it a preferred choice for DNV-GL and ABS-certified machinery monitoring installations.

Q1: Is the PR6424/000-000 CON21 directly compatible with the MMS6000 system without additional signal conditioning?A: The PR6424/000-000 CON21 is designed as a system-matched sensor for the MMS6000 platform. It requires connection to a compatible MMS6000 input module — such as the MMS6110 proximity input module or MMS6220 vibration input module — which provides the necessary oscillator excitation signal and performs signal linearization. The sensor cannot be used as a standalone 4–20 mA transmitter; it must operate within the MMS6000 signal chain to deliver calibrated displacement values. All cabling should use the specified PR9376 extension cable to maintain system accuracy across the full measurement range.

Q2: What is covered under the 12-Month Warranty, and how does it apply to installed units?A: The 12-Month Warranty covers manufacturing defects, signal output deviation beyond specified tolerances, and connector or housing integrity failures under normal operating conditions. The warranty period begins from the date of shipment. Units that have been mechanically damaged due to improper installation, exposed to chemicals outside the specified compatibility range, or operated beyond the rated temperature envelope are not covered. For installed units, warranty claims require the original shipment documentation and a completed failure report. NANKMOS provides pre-shipment functional testing and calibration verification for all PR6424/000-000 CON21 units to minimize field failure risk.

Q3: Can the PR6424/000-000 CON21 be integrated into a redundant monitoring architecture, and what is the recommended configuration?A: Yes. For critical machinery protection applications, the recommended configuration is an XY probe pair — two PR6424/000-000 CON21 sensors mounted 90° apart at each monitored bearing location — connected to separate MMS6000 input module channels. This arrangement provides full radial shaft orbit data and ensures that a single sensor failure does not result in loss of protection coverage. For axial thrust monitoring, the PR6424 radial sensors are complemented by a PR6426 series thrust position sensor on the same MMS6000 rack. The MMS6000 system's channel redundancy logic can be configured to maintain alarm and trip functionality even if one sensor channel reports a fault, in compliance with API 670 single-fault tolerance requirements.
