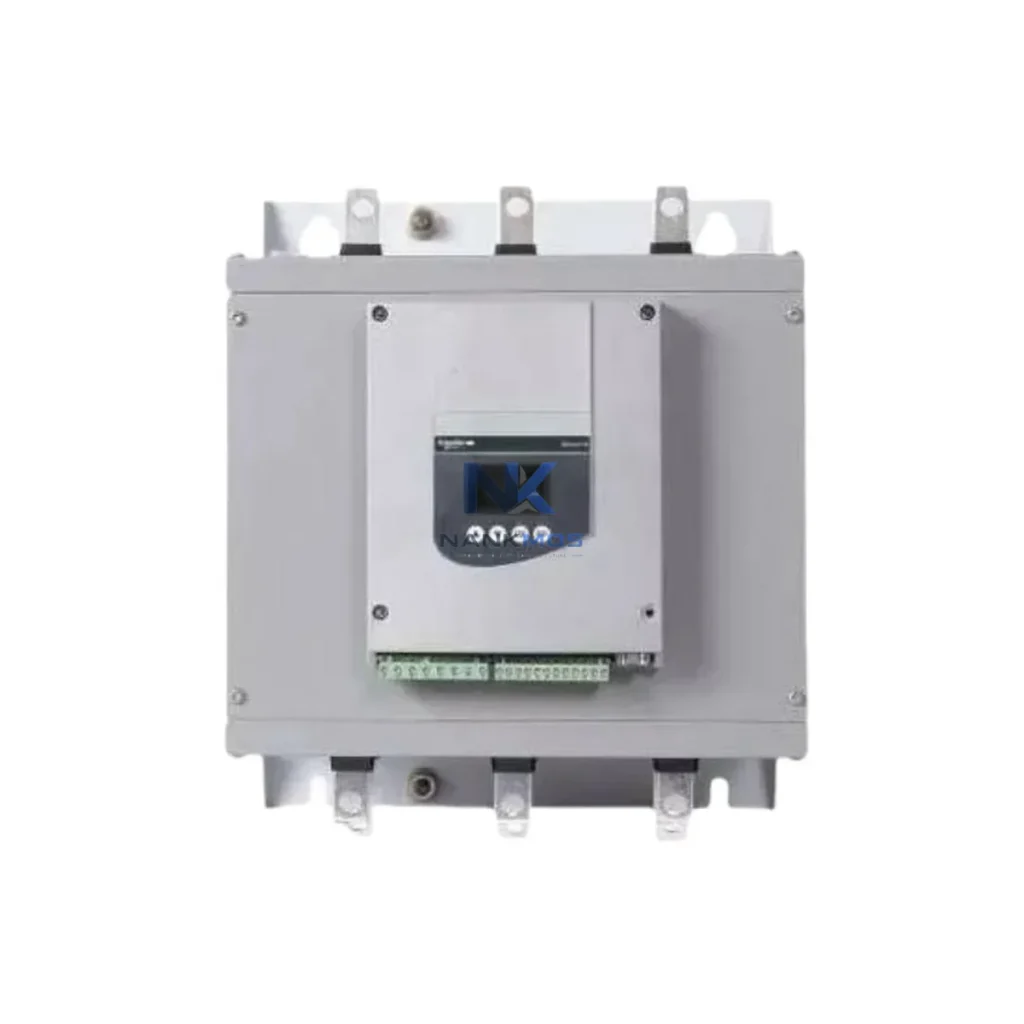

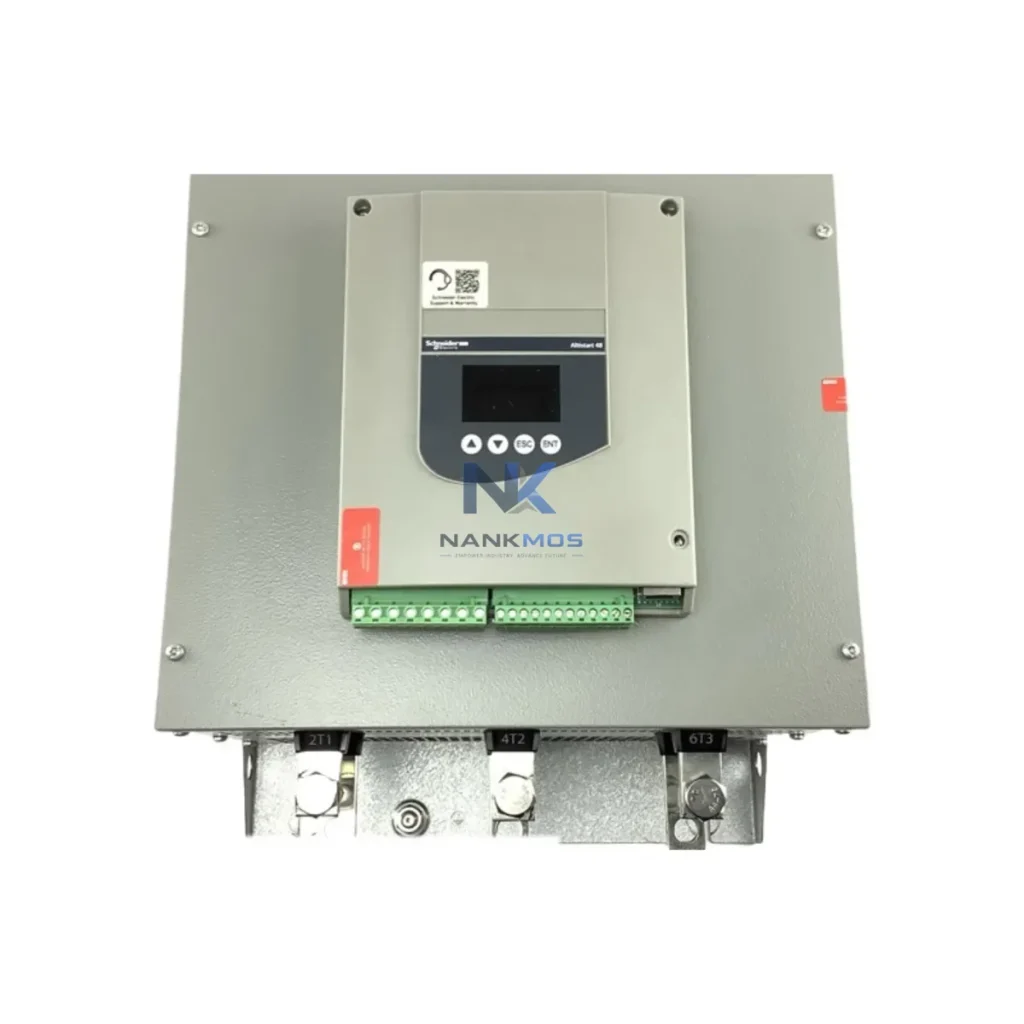

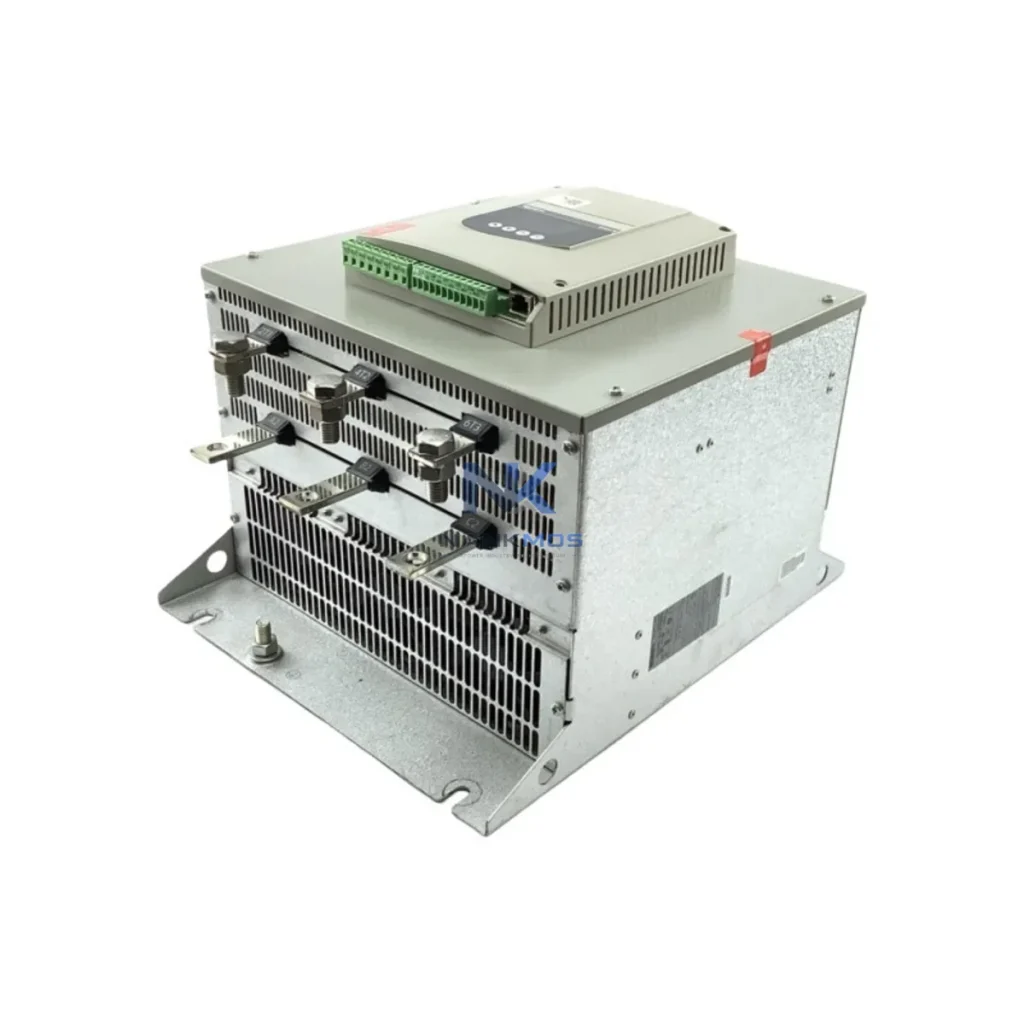

Schneider Electric ATS48C21Q Soft Starter

Product Details

ATS48C21Q Product Description

The Schneider ATS48C21Q is a high-performance soft starter from the ATS48 series, rated at 210A and engineered for energy-conscious industrial environments. Designed to control motor starting current and torque, it eliminates the mechanical and electrical stress associated with direct-on-line starts, delivering measurable reductions in energy consumption, thermal load, and equipment wear across demanding production line applications. Whether integrated into a new automation architecture or retrofitted into an existing motor control center, the ATS48C21Q provides a reliable, intelligent interface between your power supply infrastructure and your driven loads.

In a modern smart factory, energy efficiency is not a single-device achievement — it is a system-level discipline. The ATS48C21Q is most effective when deployed as part of a coordinated automation architecture. When paired with a Modicon M580 PLC (such as the BMEP582040), the soft starter can receive start/stop commands, speed references, and fault acknowledgment signals via hardwired I/O or Modbus RTU, enabling the controller to sequence motor starts across multiple production zones without creating simultaneous inrush current peaks that inflate peak demand charges.

For variable-speed applications running alongside the ATS48C21Q, Schneider Altivar ATV630 or ATV320 variable frequency drives handle loads requiring continuous speed regulation, while the soft starter manages fixed-speed motors that only need controlled starting and stopping. This hybrid approach — combining VFDs for variable loads and soft starters for fixed-speed loads — is a proven strategy for minimizing total system energy consumption without over-investing in drive hardware.

Power quality and consumption visibility are delivered through Schneider PowerLogic PM5000 series power monitoring modules, which can be installed at the MCC (motor control center) level to track real-time kW, kVAR, power factor, and harmonic distortion. When the ATS48C21Q's built-in energy optimizer detects a lightly loaded motor and reduces applied voltage accordingly, the PM5000 captures the resulting efficiency gain, feeding data upstream to a EcoStruxure Power SCADA Operation system for trend analysis and energy reporting.

On the I/O and field device side, the ATS48C21Q interfaces with Schneider Preventa XPS safety relays and standard digital I/O modules (such as those in the Modicon STB island bus range) to enforce safe-stop sequences during maintenance windows or emergency shutdowns. Temperature sensors and vibration transducers connected to the PLC's analog input modules provide the real-time motor health data needed to trigger predictive maintenance alerts before a thermal fault or bearing failure causes unplanned downtime.

For operator visibility, an Magelis HMIGTO series HMI panel can display motor current, thermal state, start count, and energy optimizer status in real time, giving line operators immediate feedback on motor health and energy performance without requiring access to the engineering workstation. This transparency supports both energy accountability and rapid fault diagnosis on the production floor.

When communication to a plant-level SCADA or MES is required, the optional VW3A58306 Modbus RTU communication module for the ATS48C21Q enables full parameter read/write access, fault logging, and remote reset capability — eliminating the need for a technician to physically access the panel for routine diagnostics. This connectivity is essential for facilities implementing ISO 50001 energy management systems, where metered data from every significant motor load must be captured and reported.

Uncontrolled motor starting is one of the most significant sources of avoidable energy waste in industrial facilities. A 110 kW motor started direct-on-line draws 6–8 times its rated current for several seconds, creating a thermal spike in the motor windings, a mechanical shock in the driven load, and a demand peak on the facility's electrical supply that can trigger peak demand tariff charges lasting an entire billing month. The ATS48C21Q eliminates this problem by ramping motor voltage smoothly from a configurable starting level to full voltage over an adjustable ramp time, limiting starting current to a programmable threshold (typically 2–4× rated current) and delivering a controlled torque profile that protects both the motor and the mechanical transmission.

Beyond the starting event, the ATS48C21Q's integrated motor energy optimizer continuously monitors the motor's power factor and load level during steady-state operation. When the motor is running at partial load — a common condition for pumps and fans operating below design flow — the optimizer reduces the applied voltage to the minimum level needed to maintain torque, reducing copper losses and motor temperature. This function alone can deliver 2–8% energy savings on lightly loaded motors running continuously, with the added benefit of lower operating temperature extending motor insulation life and reducing cooling system load in the electrical enclosure.

For production lines with multiple motor-driven stations — conveyors, indexing tables, assembly robots, and packaging machines — the ATS48C21Q enables staggered starting sequences coordinated by the PLC, ensuring that no two large motors start simultaneously. This load sequencing strategy flattens the facility's demand curve, reduces transformer and cable sizing requirements for new installations, and directly lowers electricity costs in tariff structures that penalize peak demand. Combined with real-time power monitoring and SCADA-level energy dashboards, the result is a production environment where energy consumption is visible, controllable, and continuously optimized.

Maintenance teams benefit equally from the ATS48C21Q's built-in protection suite: thermal overload protection with memory, phase loss and phase imbalance detection, undercurrent detection for pump dry-run protection, and a configurable number of automatic restart attempts after a fault. These features reduce the frequency and duration of unplanned stoppages, keeping production throughput stable and reducing the energy cost of restarting cold processes. All units supplied by NANKMOS are sourced from authorized distribution channels, tested prior to shipment, and covered by a 12-month warranty, with stock available for immediate dispatch to minimize lead times for maintenance and project requirements.

Q1: What energy savings can I realistically expect from the ATS48C21Q's motor energy optimizer? The built-in energy optimizer is most effective on motors that run continuously at partial load, such as pumps and fans operating below design point. In these conditions, savings of 2–8% of motor input power are typical. For motors that run at or near full load most of the time, the primary energy benefit comes from eliminating starting current peaks and the associated demand tariff charges, rather than steady-state efficiency improvement.

Q2: Is the ATS48C21Q compatible with my existing Modicon PLC and SCADA system? Yes. The ATS48C21Q provides hardwired I/O (digital inputs for run/stop/fault reset, relay outputs for run and fault status) that is compatible with any PLC I/O module. For full parameter access and remote diagnostics, the optional VW3A58306 Modbus RTU module integrates the soft starter into Modicon M340, M580, and Premium PLC networks, as well as any SCADA system supporting Modbus RTU or Modbus TCP (via a gateway). EcoStruxure-compatible DTM files are available for integration into SoMove and Unity Pro engineering environments.

Q3: Can the ATS48C21Q replace an existing star-delta starter or direct-on-line starter without rewiring the motor? In most cases, yes. The ATS48C21Q is designed for in-line installation between the main contactor and the motor terminals, replacing star-delta or DOL starters without requiring changes to the motor winding connections. The motor must be connected in delta configuration for the soft starter to function correctly. NANKMOS technical support can assist with application review and wiring verification prior to installation.

Q4: What is the warranty coverage and how does NANKMOS handle testing and shipping? All ATS48C21Q units supplied by NANKMOS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment, including power-up verification and I/O continuity checks. Stock is maintained for immediate dispatch, and expedited shipping options are available for urgent maintenance requirements. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
