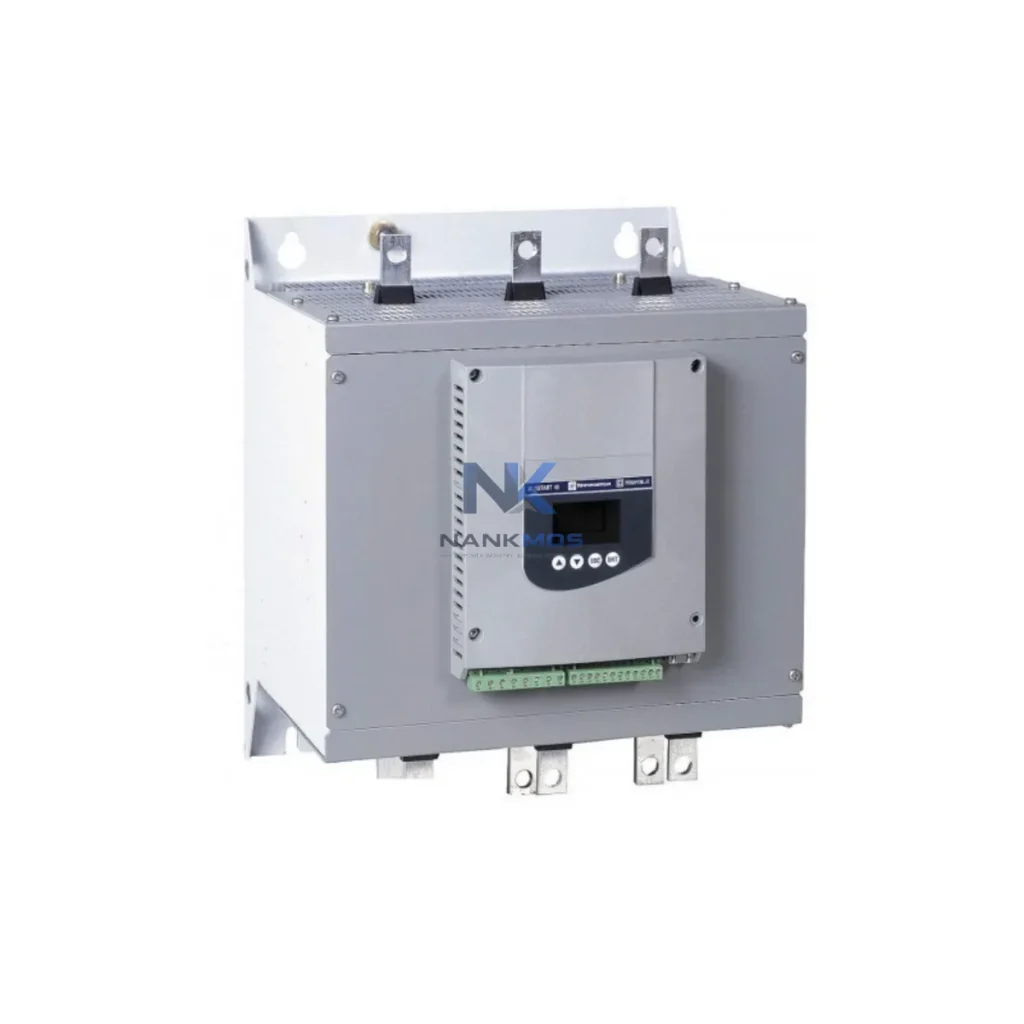

Schneider Electric ATS48C32Y Soft Starter

Product Details

ATS48C32Y Product Description

The Schneider Electric ATS48C32Y is a high-capacity soft starter from the Altistart 48 series, rated at 320A and 690V, engineered for seamless integration into industrial data networks and smart factory automation architectures. As motor control technology evolves toward fully connected production environments, the ATS48C32Y delivers not only precise motor ramp-up and ramp-down control but also acts as a critical node in the plant-wide communication chain — bridging field-level motor assets with supervisory control, SCADA platforms, and enterprise data systems via Modbus RTU protocol.

In modern smart factory deployments, every drive, starter, and actuator must participate in the data flow. The ATS48C32Y fulfills this role by exposing real-time motor status, current draw, thermal state, fault codes, and operational parameters directly to the control network. This enables plant engineers to monitor motor health continuously, trigger predictive maintenance workflows, and respond to fault conditions without dispatching field technicians — reducing unplanned downtime and extending equipment service life.

The ATS48C32Y sits at the intersection of power control and industrial data communication. In a typical smart factory data flow, the process begins at the field level: sensors and transmitters — such as pressure transducers, flow meters, and temperature probes — feed analog or digital signals into remote I/O modules or directly into a Modicon M340 or M580 PLC. The PLC processes these signals and issues motor start/stop commands to the ATS48C32Y via Modbus RTU over an RS-485 network segment.

As the soft starter executes the motor ramp sequence, it simultaneously reports back to the PLC: motor current (as a percentage of rated current), thermal accumulation, bypass relay status, and any active fault codes. This bidirectional data exchange is the foundation of closed-loop motor management. The PLC forwards aggregated data upstream to a SCADA gateway — for example, a Schneider Electric EcoStruxure Automation Server or a third-party Moxa MGate MB3180 Modbus-to-Ethernet gateway — which translates the RS-485 Modbus RTU frames into Modbus TCP/IP packets for distribution across the plant Ethernet backbone.

At the network layer, industrial managed switches — such as units from the Schneider Electric ConneXium series or equivalent DIN-rail switches with VLAN and QoS support — segment the automation traffic from office IT traffic, ensuring deterministic latency for time-critical control commands. The SCADA server, running platforms such as Ignition by Inductive Automation or Schneider Electric's EcoStruxure SCADA Expert Vijeo Citect, subscribes to the ATS48C32Y data tags and displays real-time motor dashboards on operator HMI panels.

HMI terminals — such as Schneider Electric Magelis GTU or HMIGTU series panels — display motor load curves, thermal bar graphs, and fault history logs directly on the production floor. Operators can acknowledge alarms, reset faults, and initiate controlled motor stops from the HMI without accessing the MCC panel. Meanwhile, edge computing nodes aggregate multi-drive data from several ATS48C32Y units running in parallel across pump stations, compressor banks, or conveyor systems, and push summarized KPIs to the MES or cloud analytics layer.

For installations requiring Profibus DP integration — common in legacy Siemens S7-300 or S7-400 environments — the ATS48C32Y accepts the VW3A58101 Profibus DP communication module, enabling the soft starter to appear as a standard Profibus slave on the DP network alongside Siemens ET 200S remote I/O stations and Siemens SINAMICS G120 variable frequency drives. This interoperability ensures that mixed-vendor automation sites can incorporate the ATS48C32Y without redesigning the existing fieldbus topology.

In CANopen-based machine control architectures — typical in packaging lines and material handling systems — the VW3A58102 CANopen module extends the ATS48C32Y's connectivity to CANopen master controllers, allowing the soft starter to participate in synchronized multi-axis motion sequences alongside servo drives and stepper controllers. Data from the ATS48C32Y is mapped to CANopen PDOs (Process Data Objects) for real-time exchange and SDOs (Service Data Objects) for parameter configuration and diagnostics.

The complete data chain — from motor current signal at the ATS48C32Y terminals, through Modbus RTU to PLC, through Ethernet gateway to SCADA, through managed switch to HMI, and through edge node to cloud dashboard — represents the full industrial IoT data pipeline that the ATS48C32Y enables in a smart factory context. Every data point is timestamped, logged, and available for trend analysis, alarm correlation, and predictive maintenance modeling.

Protocol Fragmentation: Many industrial sites operate mixed-protocol environments — Modbus RTU on legacy drives, Profibus DP on older PLCs, and Ethernet/IP on newer controllers. The ATS48C32Y addresses this by supporting native Modbus RTU and accepting optional fieldbus modules (Profibus DP, DeviceNet, CANopen), allowing it to integrate into virtually any existing automation network without requiring a full protocol migration. A Modbus-to-Ethernet gateway such as the Moxa MGate series can further bridge the ATS48C32Y into Modbus TCP/IP or OPC-UA environments.

Data Silos and Production Blind Spots: Without network-connected motor starters, motor health data remains trapped at the MCC panel — invisible to SCADA operators and maintenance teams. The ATS48C32Y eliminates this blind spot by continuously publishing motor current, thermal state, and fault status to the control network, making motor data available to every authorized system from the PLC to the cloud dashboard.

Remote Monitoring and Diagnostics: In geographically distributed facilities — water treatment plants, pipeline pump stations, offshore platforms — sending technicians to inspect individual motor starters is costly and slow. The ATS48C32Y's Modbus RTU interface enables remote fault reading, parameter adjustment, and motor restart commands from a central control room or via a remote access VPN, dramatically reducing mean time to repair (MTTR).

Production Line Transparency and Alarm Traceability: The ATS48C32Y logs fault events with fault codes that SCADA systems can capture and timestamp. This creates an auditable alarm history that maintenance engineers can analyze to identify recurring fault patterns — such as repeated thermal overloads indicating undersized motors or blocked ventilation — and take corrective action before catastrophic failure occurs.

System Scalability: As production capacity grows, additional ATS48C32Y units can be added to the Modbus RTU network (up to 247 nodes per RS-485 segment) without modifying the SCADA configuration — only new Modbus device addresses need to be registered. This plug-and-expand architecture supports phased factory expansion without network redesign.

Q1: What is the maximum Modbus RTU network length and how many ATS48C32Y units can share one RS-485 segment?RS-485 supports cable runs up to 1,200 meters at standard baud rates (9,600–19,200 bps). Up to 247 Modbus slave devices can share a single RS-485 segment, though practical deployments typically limit segments to 32 nodes for signal integrity. For larger networks, RS-485 repeaters or Modbus-to-Ethernet gateways are used to extend reach and node count.

Q2: Is the ATS48C32Y compatible with Siemens S7 PLCs and Profibus DP networks?Yes. With the optional VW3A58101 Profibus DP communication module installed, the ATS48C32Y operates as a standard Profibus DP slave device, fully compatible with Siemens S7-300, S7-400, and S7-1500 masters. GSD files are available from Schneider Electric for integration into Siemens TIA Portal and STEP 7 projects.

Q3: How does the ATS48C32Y support remote diagnostics and what data is accessible over the network?Over Modbus RTU (or optional fieldbus), the ATS48C32Y exposes a comprehensive register map including: motor current (% of In), thermal state (% of thermal capacity), supply voltage, output frequency, last 5 fault codes with fault type identifiers, run/stop/bypass status, and all configurable parameters (ramp times, current limits, motor protection thresholds). This data can be read by any Modbus master — PLC, SCADA gateway, or HMI — for real-time monitoring and remote parameter adjustment.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the ATS48C32Y?Every ATS48C32Y unit supplied by NANKMOS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes pre-shipment functional testing to verify power circuit integrity, control logic operation, and communication port functionality. RFQ responses are provided within 24 hours, and expedited shipping is available for urgent project requirements.
