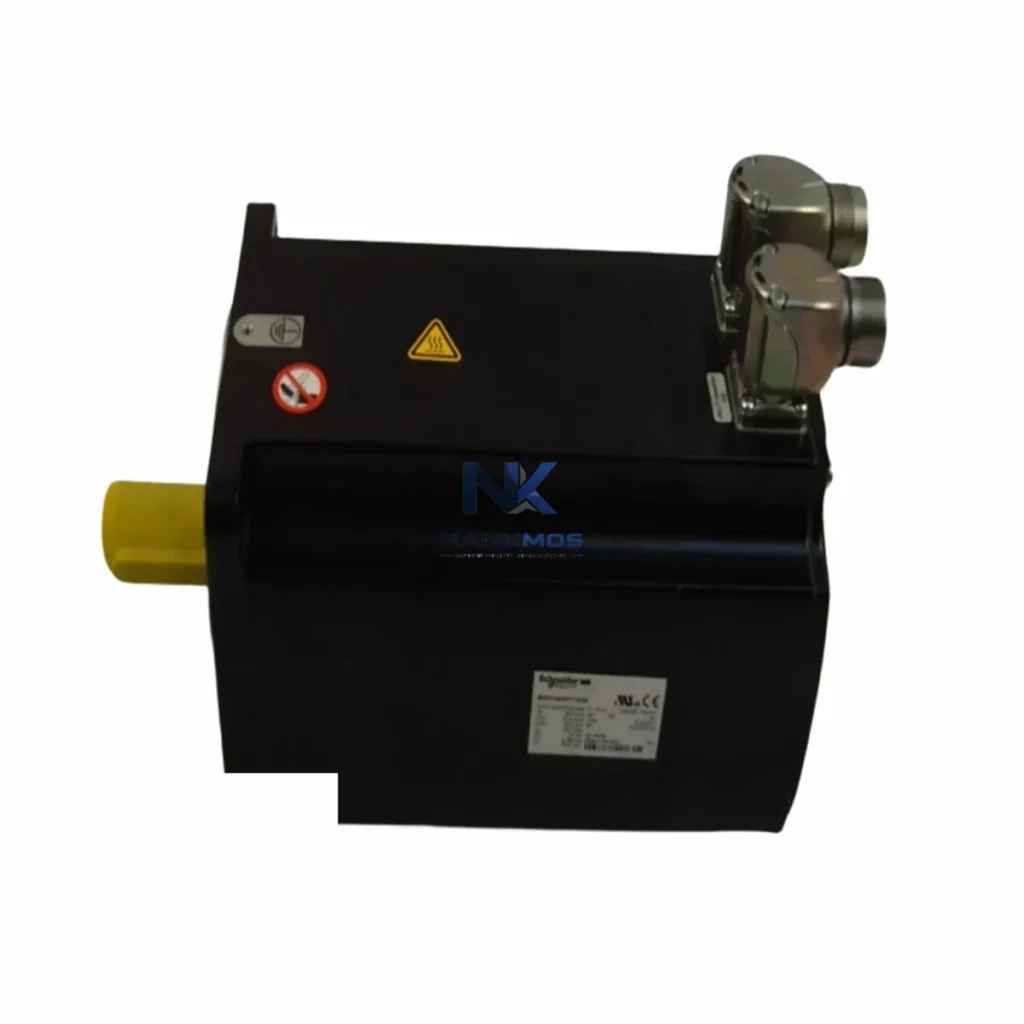

Schneider Electric BMH1403P11A2A Servo Motor

Product Details

BMH1403P11A2A Product Description

The Schneider Electric BMH1403P11A2A is a high-performance Lexium series servo motor engineered for energy-conscious industrial environments. Designed to deliver precise torque and speed control with minimal power waste, this unit is a cornerstone component for factories pursuing measurable reductions in energy consumption, thermal load, and unplanned downtime. With its compact frame, integrated encoder feedback, and compatibility with the Lexium 32 and Lexium 62 servo drive families, the BMH1403P11A2A enables production lines to operate at peak efficiency while maintaining the dynamic response required for demanding motion profiles.

Manufactured in France to Schneider Electric's stringent quality standards, each BMH1403P11A2A unit undergoes pre-shipment functional testing to verify torque linearity, encoder signal integrity, and thermal performance before dispatch. NANKMOS maintains verified stock of this model, ensuring short lead times for MRO replacements and new system builds alike. Every unit is backed by a 12-Month Warranty covering manufacturing defects and performance deviations under rated operating conditions.

Effective energy management in modern production lines depends on the coordinated interaction of motion, control, and monitoring layers. The BMH1403P11A2A is designed to operate as part of a tightly integrated automation architecture rather than as a standalone actuator. When paired with a Lexium 32A (LXM32A) or Lexium 62 (LXM62) servo drive, the motor's regenerative deceleration energy can be fed back into the DC bus, reducing net energy consumption during high-cycle stop-start applications such as pick-and-place or indexing conveyors.

At the control layer, the BMH1403P11A2A integrates seamlessly with Schneider Modicon M340 and Modicon M580 PLCs via EtherCAT or CANopen motion buses. The PLC's motion task scheduler coordinates multi-axis profiles, ensuring that acceleration ramps are optimized to minimize peak current draw — a key factor in reducing transformer and switchgear sizing and lowering facility demand charges. The Modicon TM5 distributed I/O modules handle field-level feedback from proximity sensors, limit switches, and encoder index pulses, feeding real-time position data back to the motion controller without adding latency to the control loop.

For power quality monitoring, the BMH1403P11A2A installation is best complemented by a Schneider PowerLogic PM5000 series power meter or equivalent power monitoring module installed at the motor control center (MCC). This enables plant engineers to correlate servo axis activity with instantaneous kW demand, identify inefficient motion profiles, and benchmark energy consumption per production cycle. When integrated with a Schneider EcoStruxure Machine SCADA Expert or third-party SCADA platform, these metrics feed directly into energy dashboards for continuous improvement programs.

The Magelis HMIGTO series HMI provides operators with real-time visibility into drive status, motor temperature, torque utilization, and alarm states. Displaying thermal load trends on the HMI allows maintenance teams to intervene before thermal derating occurs, preserving both motor life and production throughput. Communication between the HMI, PLC, and drive is handled via Ethernet/IP or Modbus TCP, supported natively by the Lexium drive's onboard communication ports.

In multi-axis gantry or robotic cell applications, the BMH1403P11A2A is frequently deployed alongside BMH series motors of different frame sizes — such as the BMH0703 or BMH2053 — to balance torque and inertia requirements across axes while maintaining a unified drive platform. This reduces spare parts complexity and simplifies energy auditing across the cell. The Lexium 62 ILM integrated servo drive-motor may be used for auxiliary axes where cabinet space is constrained, further reducing wiring losses and panel thermal load.

Industrial facilities operating servo-driven machinery face a compound energy challenge: motors that are oversized for their load, drives that operate in open-loop voltage mode, and control systems that do not coordinate acceleration profiles across axes. The BMH1403P11A2A addresses each of these inefficiencies through its design and ecosystem integration.

The motor's high pole-count synchronous design delivers rated torque at low speeds without the slip losses inherent in induction motors, making it particularly effective in applications with variable load cycles such as winding, tensioning, and press-fit assembly. At partial load — which represents the majority of operating time in most production environments — the Lexium drive's auto-tuning algorithm continuously adjusts current vector angle to minimize copper losses, reducing heat generation and extending bearing and winding life.

Thermal load reduction is a direct outcome of right-sizing the motor to the application. The BMH1403P11A2A's 0.75 kW rating and compact 40 mm frame make it suitable for replacing legacy induction motors in light-duty axes where oversized motors have historically operated at 20–30% of rated load — a regime where induction motor efficiency drops sharply. Replacing these with a correctly sized synchronous servo motor and drive combination can reduce axis-level energy consumption by 15–30% depending on duty cycle.

Production line throughput stability — often called line takt — is directly influenced by the repeatability and settling time of servo axes. The BMH1403P11A2A's high-resolution encoder and the Lexium drive's position loop bandwidth ensure sub-millisecond settling times, allowing tighter inter-station timing and reducing buffer accumulation between stations. Tighter takt control reduces the need for speed bursts to recover from timing deviations, which in turn reduces peak power demand and thermal stress on both the motor and the drive.

Predictive maintenance integration is supported through the Lexium drive's built-in diagnostics, which monitor motor winding temperature (via PTC thermistor input on the BMH1403P11A2A), encoder health, and drive thermal state. These parameters can be polled by the PLC or SCADA system on a configurable cycle, enabling condition-based maintenance scheduling that replaces fixed-interval servicing — reducing both maintenance labor and unplanned downtime events that disrupt energy-optimized production schedules.

NANKMOS supplies the BMH1403P11A2A from verified inventory with pre-shipment electrical and mechanical testing. Units are dispatched with test records confirming encoder signal quality, winding resistance balance, and insulation resistance. This eliminates the commissioning risk associated with untested stock and ensures that energy optimization targets are achievable from day one of installation.

Q1: What energy savings can I expect when replacing an induction motor with the BMH1403P11A2A on a light-duty axis? In applications where the legacy induction motor operates at 20–30% of rated load, switching to a correctly sized BMH1403P11A2A with a Lexium 32A drive typically yields 15–30% reduction in axis-level energy consumption. Actual savings depend on duty cycle, load profile, and the efficiency class of the motor being replaced. A power meter such as the PowerLogic PM5000 installed before and after changeover provides accurate baseline and post-installation measurement.

Q2: Is the BMH1403P11A2A compatible with my existing Modicon PLC and EtherCAT network? Yes. The BMH1403P11A2A is designed for use with Lexium 32 and Lexium 62 drives, both of which support EtherCAT, CANopen, and Modbus TCP communication. These drives integrate natively with Modicon M340, M580, and LMC motion controllers via the SoMachine Motion or EcoStruxure Machine Expert programming environment. No additional gateway hardware is required for standard EtherCAT topologies.

Q3: What is the recommended replacement or cross-reference for the BMH1403P11A2A if it is discontinued or on extended lead time? The BMH1403P11A2A belongs to the Lexium BMH series. Functional equivalents within the same series include the BMH1402P11A2A (lower peak torque variant) or the BMH1404P11A2A (higher continuous torque). Cross-brand replacements require careful verification of frame size, encoder interface, and drive compatibility. NANKMOS technical support can assist with cross-reference validation prior to order placement.

Q4: What does the 12-Month Warranty cover, and what is the process for warranty claims? The 12-Month Warranty covers manufacturing defects, encoder signal failures, winding insulation breakdown, and mechanical defects in the shaft and bearing assembly under rated operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated thermal envelope. To initiate a warranty claim, contact NANKMOS at [email protected] with the unit serial number, purchase date, and a description of the fault. Replacement units are dispatched from verified stock following fault confirmation.
