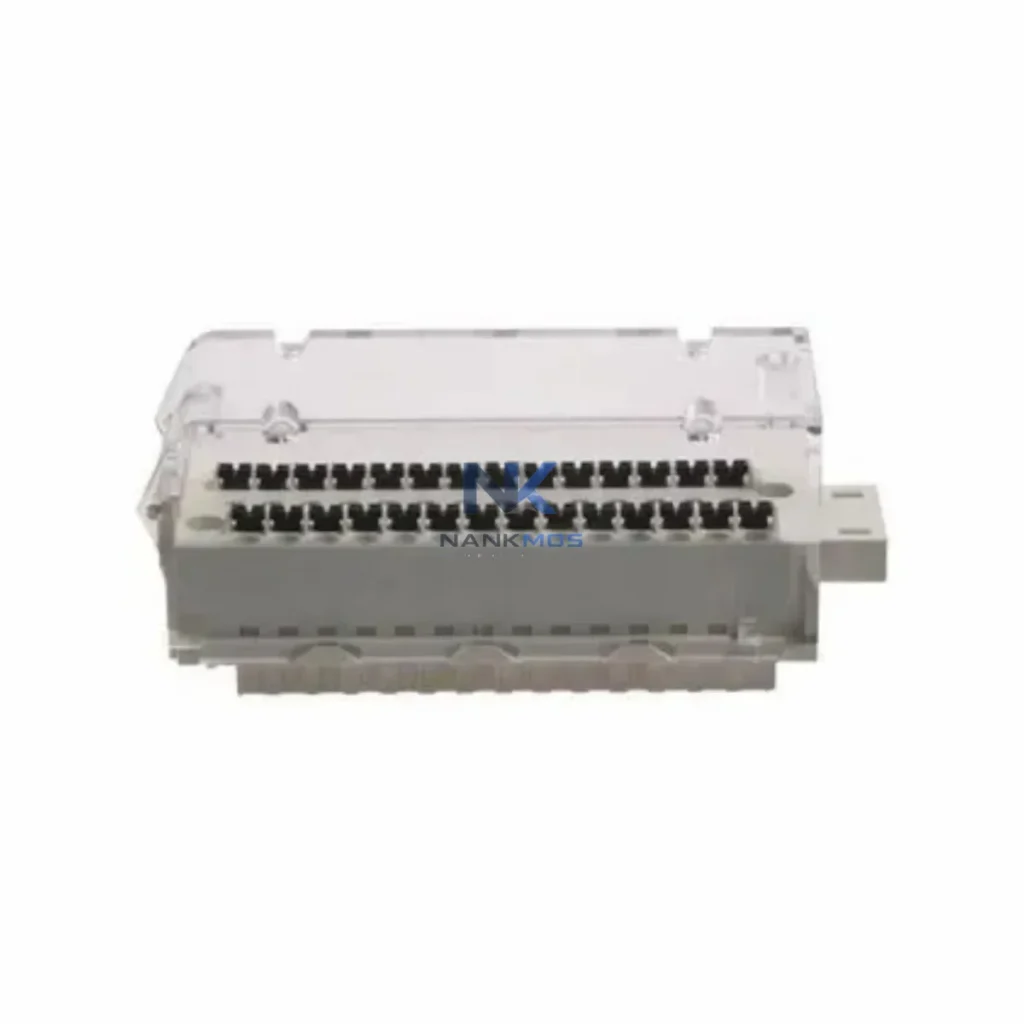

Schneider Electric BMXFTB2820 Network Terminal Block

Product Details

BMXFTB2820 Product Description

The Schneider Electric BMXFTB2820 is a precision-engineered terminal block designed for seamless integration within the Modicon M340 PLC platform. Far beyond a passive wiring component, the BMXFTB2820 serves as a critical node in the industrial data chain — bridging field-level signals from sensors, actuators, and I/O modules directly into the structured communication backbone of a smart factory. Whether deployed in discrete manufacturing, process automation, or utility management, this terminal block ensures signal integrity, wiring consistency, and system-level reliability across every layer of the automation architecture.

In modern smart factory environments, data continuity from the field device to the control room is non-negotiable. The BMXFTB2820 connects directly to Modicon M340 I/O modules such as the BMX DDI 1602 digital input module and the BMX DAO 1605 analog output module, providing a structured, labeled, and mechanically secure termination point for field wiring. This eliminates loose connections, reduces commissioning time, and ensures that every signal — whether a 4–20 mA analog loop from a pressure transmitter or a 24 VDC digital pulse from a proximity sensor — arrives at the PLC backplane with full fidelity.

The BMXFTB2820 is engineered to support the Modicon M340's native communication capabilities, including Modbus TCP/IP over Ethernet, CANopen for distributed I/O, and Modbus serial for legacy device integration. When paired with the BMX NOE 0110 Ethernet communication module, the M340 system gains full network visibility — enabling real-time data exchange with SCADA platforms such as Wonderware, Ignition, or Schneider Electric's own EcoStruxure Operator Terminal Expert. The BMXFTB2820 ensures that the physical wiring layer supporting these communication paths is robust, organized, and maintainable.

A complete smart factory data chain begins at the field device and ends at the enterprise dashboard — and the BMXFTB2820 anchors the most critical junction in that chain: the physical-to-digital handoff. Consider a typical production line scenario: a Telemecanique OsiSense XS inductive proximity sensor detects part presence and sends a 24 VDC signal through the BMXFTB2820 terminal block into a BMX DDI 1602 digital input module. The Modicon M340 CPU — such as the BMX P34 2020 — processes this signal in real time and triggers a downstream actuator command via a BMX DAO 1605 digital output module, again routed through a BMXFTB2820 terminal interface.

Simultaneously, analog signals from a Schneider Electric Zelio pressure transmitter or a Pt100 temperature sensor are wired through the BMXFTB2820 into a BMX AII 0814 analog input module. These values are scaled, filtered, and transmitted over Modbus TCP/IP via the BMX NOE 0110 Ethernet module to an EcoStruxure Operator Terminal Expert HMI panel, where operators monitor real-time process values, trend graphs, and alarm states. The structured wiring provided by the BMXFTB2820 ensures that every analog channel maintains signal isolation and accuracy — critical for closed-loop PID control in temperature, pressure, or flow applications.

At the network layer, the Modicon M340 system communicates upstream to a SCADA server running Ignition or Wonderware InTouch via Modbus TCP/IP. The BMXFTB2820's role in maintaining clean, labeled, and mechanically stable field wiring directly impacts the reliability of this data path. Any loose termination or wiring error at the terminal block level can introduce noise, signal dropout, or false alarms — disrupting the entire data chain from sensor to SCADA. For distributed architectures, the M340 may also communicate with remote I/O islands using CANopen, where Schneider Electric STB island modules extend I/O capacity across the production floor, all feeding data back through the same structured wiring discipline enforced by the BMXFTB2820.

For edge computing and IIoT integration, the Modicon M340 platform supports connectivity to edge gateways such as the Schneider Electric EcoStruxure Machine Advisor or third-party gateways running OPC-UA or MQTT. The BMXFTB2820 ensures that the field wiring feeding these data streams is organized, documented, and maintainable — reducing mean time to repair (MTTR) and supporting predictive maintenance workflows. When combined with a Schneider Electric Altivar 320 variable frequency drive wired through the same terminal discipline, the system achieves full drive-to-cloud data visibility: speed references, current draw, fault codes, and energy consumption all flow through a single, coherent data architecture anchored by reliable field termination.

Protocol Fragmentation: Many industrial sites operate a mix of legacy Modbus RTU devices alongside modern Ethernet-based systems. The Modicon M340 platform, supported by the BMXFTB2820's structured wiring, bridges this gap natively — the BMX NOE 0110 module handles Modbus TCP/IP upstream while the CPU manages Modbus RTU serial communication to legacy field devices, all without protocol conversion gateways or additional hardware costs.

Data Silos and Production Transparency: When field wiring is disorganized or unlabeled, troubleshooting becomes time-consuming and data collection becomes unreliable. The BMXFTB2820's 28-point structured terminal layout enforces wiring discipline, making it straightforward to trace every signal from field device to PLC module. This transparency is the foundation of production line visibility — enabling accurate OEE calculations, cycle time analysis, and downtime tracking in connected MES or SCADA systems.

Remote Monitoring and Alarm Management: With the Modicon M340 system properly wired through BMXFTB2820 terminal blocks, remote diagnostic access via EcoStruxure Machine Advisor or Modbus TCP/IP polling becomes reliable and consistent. Alarm states, I/O status, and module health can be monitored from a central control room or remotely via VPN — reducing the need for on-site intervention and enabling faster fault response.

System Scalability: As production requirements grow, additional I/O modules can be added to the M340 rack and wired through additional BMXFTB2820 terminal blocks without redesigning the control cabinet. This modular scalability — combined with consistent wiring standards — ensures that system expansions are clean, documented, and fully integrated into the existing data architecture.

Q1: Does the BMXFTB2820 support Modbus TCP/IP communication directly?The BMXFTB2820 is a terminal block that provides the physical wiring interface for Modicon M340 I/O modules. Modbus TCP/IP communication is handled by the M340 CPU and the BMX NOE 0110 Ethernet module. The BMXFTB2820 ensures that the field signals feeding into these communication paths are reliably terminated and organized.

Q2: Is the BMXFTB2820 compatible with all Modicon M340 I/O modules?The BMXFTB2820 is designed for specific Modicon M340 I/O modules with 28-point connector compatibility, including select BMX DDI, BMX DAO, BMX AII, and BMX AMO series modules. Always verify module compatibility using the Schneider Electric product reference guide or contact NANKMOS for pre-sale technical confirmation.

Q3: What is the warranty coverage and how is it supported?Every BMXFTB2820 supplied by NANKMOS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our technical team provides pre-shipment testing confirmation and post-sale support. Contact [email protected] for warranty claims or technical assistance.

Q4: Can this terminal block be used in high-noise industrial environments?Yes. The BMXFTB2820 is engineered to Schneider Electric's industrial standards for vibration resistance, thermal stability, and signal isolation. When installed in a properly grounded control cabinet with shielded cabling, it maintains signal integrity in high-EMI environments typical of motor drives, welding equipment, and heavy machinery — ensuring stable data transmission to the Modicon M340 system.
