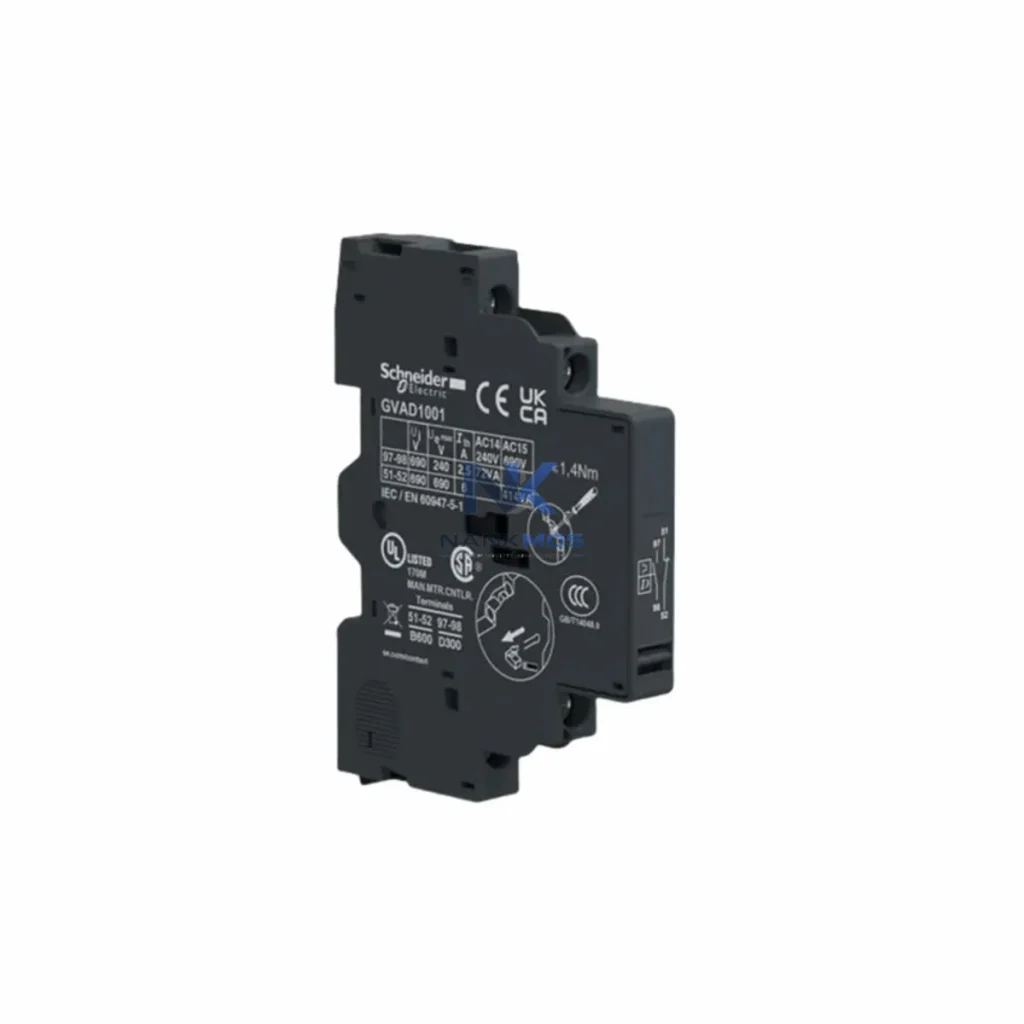

Schneider Electric GVAD1001 Auxiliary Contact Block

Product Details

GVAD1001 Product Description

The Schneider Electric GVAD1001 is a precision-engineered auxiliary contact block designed for the TeSys GV2 and GV3 series motor circuit breakers. In modern industrial environments where energy efficiency and load transparency are non-negotiable, the GVAD1001 delivers real-time device status feedback that forms the backbone of intelligent motor protection and energy-aware automation architectures. By providing reliable auxiliary signaling at the motor starter level, this contact block enables upstream control systems to monitor operational states, reduce unnecessary energy draw, and respond dynamically to load changes across the production line.

The GVAD1001 auxiliary contact block is most effective when integrated into a layered automation architecture where energy visibility drives operational decisions. In a typical smart production line, the GVAD1001 mounts directly onto a TeSys GV2ME or GV2P motor circuit breaker, providing a 1 NO + 1 NC contact output that feeds directly into a Schneider Electric Modicon M221 or M241 PLC digital input module. This closed-loop status signal allows the PLC to confirm motor run/stop states without relying on current sensing alone, reducing polling overhead and enabling faster fault response.

When paired with a Schneider Electric Altivar ATV320 or ATV630 variable frequency drive (VFD), the GVAD1001 contact output can serve as an interlock signal, preventing drive restart commands when the motor circuit breaker has tripped due to overload or short circuit. This coordination between the auxiliary contact block and the VFD eliminates redundant restart attempts that waste energy and accelerate motor thermal wear. The Altivar drive's built-in energy monitoring functions can then log the trip event and adjust ramp-up profiles to reduce inrush current on the next start cycle.

For facilities using Schneider Electric PowerLogic PM5000 or PM8000 power monitoring modules, the GVAD1001 status signal can be mapped through the PLC to flag motor circuit state changes in the energy management dashboard. This integration supports demand-side load management strategies — when multiple motors are monitored simultaneously, the system can stagger start sequences to flatten peak demand curves and reduce utility charges. The auxiliary contact's near-zero idle power draw (under 1 W) ensures it contributes no measurable parasitic load to the monitored circuit.

In distributed I/O architectures using Schneider Electric TM3 or Advantys STB I/O modules, the GVAD1001 output can be wired to a remote I/O node, extending motor status visibility to SCADA systems such as Schneider Electric EcoStruxure Plant or Wonderware InTouch without requiring additional signal converters. HMI panels such as the Magelis HMIGTO series can display real-time motor circuit status derived from the GVAD1001 contact, giving operators immediate visual confirmation of load states across multiple drive zones. Communication modules using Modbus RTU or EtherNet/IP protocols relay this data upstream to the plant energy management system, enabling automated load-shedding routines during peak tariff windows.

In conveyor and packaging line applications, the GVAD1001 works alongside TeSys D LC1D contactors and LRD thermal overload relays to form a complete motor protection and status-reporting assembly. Proximity sensors and encoder feedback from servo drive systems — such as the Schneider Electric Lexium 32 — can be cross-referenced with the GVAD1001 contact state to detect mechanical jams or coupling failures before they escalate into thermal overload trips, supporting a predictive maintenance posture that reduces unplanned downtime and associated energy waste from emergency restarts.

Industrial facilities operating multiple motor-driven loads face a persistent challenge: energy is consumed not only during productive operation but also during idle periods, fault recovery cycles, and uncoordinated start sequences. The Schneider Electric GVAD1001 addresses this challenge at the device level by providing the status transparency that higher-level energy management systems require to act intelligently.

By confirming whether a motor circuit breaker is in the tripped, open, or closed state, the GVAD1001 enables the plant control system to suppress unnecessary drive enable signals, preventing VFDs from maintaining DC bus charge on circuits that are not ready to run. This alone can reduce standby power consumption in multi-drive panels by eliminating the bus pre-charge cycles that occur when drives receive enable commands before the upstream circuit breaker has reset. In facilities with 20 or more motor circuits, this coordination translates into measurable reductions in reactive power demand and associated utility penalties.

The GVAD1001's snap-on installation onto TeSys GV2 or GV3 motor circuit breakers requires no additional wiring harness or panel space, minimizing installation labor and reducing the risk of wiring errors that can introduce ground faults or nuisance trips. Its tool-free mounting also supports rapid replacement during scheduled maintenance windows, keeping production line downtime to a minimum. Each unit shipped from NANKMOS inventory undergoes functional continuity and contact resistance testing prior to dispatch, ensuring that the auxiliary contact operates within Schneider Electric's specified parameters from the first installation.

For production lines targeting ISO 50001 energy management certification or pursuing internal energy KPI targets, the GVAD1001 provides the granular device-level data points that aggregate into meaningful energy consumption profiles. When motor circuit states are logged continuously through the PLC and SCADA layer, maintenance teams can identify circuits with abnormally high trip frequencies — a leading indicator of motor degradation, mechanical overload, or supply voltage instability — and schedule corrective action before a catastrophic failure disrupts production throughput. This predictive maintenance capability, enabled by the reliable status signaling of the GVAD1001, directly supports equipment utilization targets and reduces the energy cost of unplanned restarts and recovery cycles.

All GVAD1001 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects, with stock maintained for immediate dispatch to minimize lead times for MRO and project procurement requirements.

Q1: How does the GVAD1001 contribute to energy savings in a motor control system? The GVAD1001 provides real-time motor circuit breaker status (open/closed/tripped) to the PLC or SCADA layer. This feedback enables the control system to suppress drive enable signals, prevent unnecessary DC bus pre-charge cycles, and coordinate staggered motor starts — all of which reduce peak demand and standby energy consumption across multi-motor installations.

Q2: Which motor circuit breakers and drive systems is the GVAD1001 compatible with? The GVAD1001 is designed for lateral snap-on mounting on Schneider Electric TeSys GV2ME, GV2P, and GV3P motor circuit breakers. Its 1 NO + 1 NC contact output is compatible with standard PLC digital input modules (24 V DC), Modbus RTU and EtherNet/IP I/O interfaces, and interlock inputs on Altivar ATV320, ATV630, and similar variable frequency drives.

Q3: Can the GVAD1001 replace older TeSys auxiliary contact accessories, and what is the testing process before shipment? The GVAD1001 is the current Schneider Electric standard auxiliary contact block for the TeSys GV2/GV3 range and is the recommended replacement for earlier GVAD-series accessories. All units supplied by NANKMOS undergo pre-shipment functional testing including contact continuity verification and resistance measurement to confirm compliance with Schneider Electric specifications before dispatch.

Q4: What warranty and supply lead time should I expect for the GVAD1001? NANKMOS provides a 12-Month Warranty on all GVAD1001 units, covering manufacturing defects under normal industrial operating conditions. Stock is maintained for immediate dispatch, supporting both MRO replacement requirements and project-volume procurement. Contact [email protected] or +86 18359268345 for availability confirmation and lead time on larger quantities.
