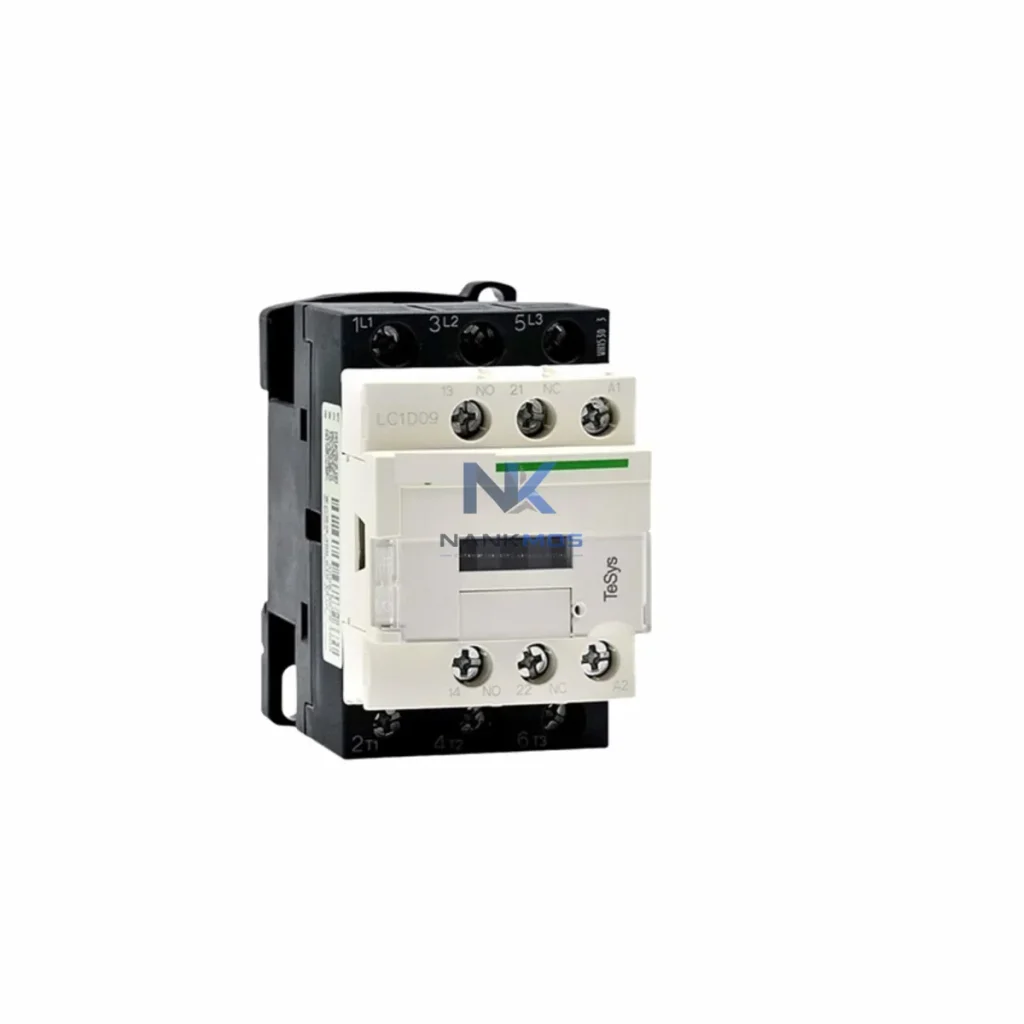

Schneider Electric LC1D09M7C AC Contactor

Product Details

LC1D09M7C Product Description

The Schneider Electric LC1D09M7C is a 9 A three-pole AC contactor from the TeSys D series, engineered for seamless integration into layered industrial control architectures. Rated for AC-3 duty at 4 kW / 400 V, it is designed to operate reliably within motor control centres, distribution panels, and modular automation cabinets where system consistency, signal integrity, and long-term maintainability are primary engineering objectives. With a 220 V AC coil (M7 designation) and a compact 45 mm frame, the LC1D09M7C slots directly into TeSys D-compatible mounting rails and busbar systems, enabling engineers to build scalable, redundancy-ready motor control topologies without compromising panel density or wiring discipline.

In a complete automation architecture, the LC1D09M7C operates at the execution layer — the point where control signals from the PLC or relay logic are translated into physical switching actions on motor loads. Its role is not isolated; it is part of a coordinated signal flow that begins at the controller, passes through I/O modules, travels across the communication network, and terminates at the contactor coil. Understanding this layered relationship is essential for engineers specifying components for manufacturing lines, HVAC systems, water treatment plants, and process control applications where uptime and diagnostic transparency are non-negotiable.

The LC1D09M7C achieves its full engineering value when deployed as part of a coherent, multi-layer automation platform rather than as a standalone switching device. In a typical TeSys D-based motor control centre, the contactor works in close coordination with the following system components:

At the control layer, a Schneider Electric Modicon M221 or M241 PLC issues discrete output commands that energise the LC1D09M7C coil via a relay output module or solid-state output card. The PLC's program logic governs start/stop sequences, interlocking, and fault response — all of which depend on the contactor's reliable switching performance. For larger installations, a Modicon M340 or M580 CPU with Ethernet backplane communication provides the processing backbone for coordinated multi-motor control.

At the I/O layer, TM3 or TM2 expansion I/O modules extend the PLC's digital output capacity to drive multiple LC1D09M7C contactors across a panel. Auxiliary contact feedback from the contactor's 1 NO block is wired back to a digital input module, enabling the controller to confirm contactor state and detect welded-contact faults — a critical diagnostic capability in safety-rated applications.

At the protection layer, the LC1D09M7C is paired with a TeSys D thermal overload relay (LRD series, e.g. LRD14 for 7–10 A range) to form a complete motor starter assembly. The overload relay mounts directly onto the contactor's base without additional wiring, creating a compact, IEC-compliant starter that protects the motor against sustained overcurrent and phase imbalance. For applications requiring electronic motor protection, the TeSys T motor management relay (LTM R) can be integrated to provide MODBUS RTU or EtherNet/IP connectivity, enabling remote trip logging and thermal model monitoring from the SCADA layer.

At the communication layer, the TeSys T relay connected to the LC1D09M7C starter assembly communicates upstream to a Modicon M340 PLC via MODBUS TCP or to a Wonderware / Vijeo Citect SCADA system via OPC-DA or OPC-UA. This communication path enables real-time motor current monitoring, trip history retrieval, and predictive maintenance scheduling — all without requiring physical access to the panel.

At the power layer, an Acti9 iC60N or iC60H circuit breaker upstream of the contactor provides short-circuit protection and isolation capability. The combination of Acti9 breaker, LC1D09M7C contactor, and LRD overload relay forms a Type 2 coordination assembly per IEC 60947-4-1, ensuring that a downstream fault does not damage the contactor contacts or the overload relay — a key requirement for installations where replacement downtime is costly.

At the HMI layer, a Magelis HMIGXU or HMISTO operator panel provides the operator interface for motor start/stop commands, fault acknowledgement, and running-hours display. The HMI communicates with the Modicon PLC over Ethernet, and the contactor's operational state is reflected in real time on the HMI screen via the auxiliary contact feedback loop described above.

For redundancy-critical applications, two LC1D09M7C contactors can be wired in a mechanically and electrically interlocked reversing starter configuration using a LAD9R1 reversing kit, enabling forward/reverse motor control with hardware-enforced interlock — a standard requirement in crane, hoist, and conveyor applications. The interlocking kit eliminates the risk of simultaneous energisation of both contactors, protecting the motor and the power distribution system.

Manufacturing & Assembly Lines: In automotive body-in-white welding lines and general assembly conveyors, the LC1D09M7C controls conveyor drive motors, indexing actuators, and cooling fan circuits. Its 10-million-operation mechanical endurance rating supports the high-cycle-rate demands of continuous production environments. Integration with a Modicon M241 PLC and TM3 I/O modules enables centralised motor management across multi-zone conveyor systems.

Water & Wastewater Treatment: Pump motor control in water treatment plants requires contactors that can withstand frequent start/stop cycles in humid, corrosive environments. The LC1D09M7C, when paired with an LRD14 overload relay and housed in an IP54 or IP65 enclosure, provides reliable pump switching for raw water intake, filtration backwash, and effluent transfer applications. MODBUS connectivity via TeSys T enables remote pump status monitoring from the plant SCADA system.

Power Distribution & Utilities: In medium-voltage substations and LV distribution boards, the LC1D09M7C controls auxiliary motor loads such as cooling fans for dry-type transformers, battery room ventilation fans, and switchgear operating mechanisms. Its IEC/EN 60947-4-1 compliance and UL 508 listing make it suitable for both IEC and NEMA-standard installations.

Oil, Gas & Petrochemical: In hazardous-area motor control applications, the LC1D09M7C is installed inside Ex e or Ex d enclosures to control pump and compressor motors in Zone 2 classified areas. The contactor's robust mechanical construction and high electrical endurance support the demanding duty cycles of hydrocarbon processing facilities, where unplanned motor trips carry significant safety and production consequences.

Mining & Metallurgy: Ore conveyor drives, crusher motor starters, and ventilation fan circuits in underground mining operations benefit from the LC1D09M7C's wide operating temperature range (-40 °C to +60 °C) and its compatibility with TeSys D reversing and star-delta starter kits. Star-delta starting reduces inrush current on large conveyor motors, protecting the mine's power distribution infrastructure.

Q1: Is the LC1D09M7C compatible with TeSys D star-delta starter kits for reduced-voltage starting? Yes. The LC1D09M7C is fully compatible with Schneider Electric's TeSys D star-delta starter kits (LAD6K10 and LAD6K11 series). A standard star-delta configuration uses three LC1D09M7C contactors — one main, one star, one delta — wired with a LAD9R1 mechanical interlock between the star and delta contactors. This configuration reduces motor starting current to approximately 33% of direct-on-line inrush, making it suitable for pump and fan applications where the power distribution system has limited fault current capacity. The PLC controls the star-to-delta transition timing via TM3 digital output modules, with the transition delay typically set between 5 and 15 seconds depending on motor load inertia.

Q2: How does the LC1D09M7C integrate with SCADA and remote monitoring systems for long-term maintenance planning? Direct SCADA integration is achieved by pairing the LC1D09M7C with a TeSys T motor management relay (LTM R controller + LTM E expansion module). The TeSys T relay monitors motor current, thermal state, and trip history, and communicates this data upstream via MODBUS RTU (RS-485) or EtherNet/IP to the plant SCADA system — such as Wonderware InTouch, Vijeo Citect, or Ignition. The SCADA system can display real-time motor current, accumulated running hours, and trip logs, enabling maintenance teams to schedule contactor inspection and overload relay calibration based on actual operational data rather than fixed time intervals. This approach reduces unplanned downtime and extends the service life of the motor starter assembly.

Q3: What does the 12-Month Warranty cover, and what is the stock availability and lead time for the LC1D09M7C? The 12-Month Warranty covers manufacturing defects, coil insulation failures, contact welding attributable to production quality, and electrical performance deviations from published IEC specifications under normal operating conditions. Warranty claims require the unit to be returned with a fault description and installation context. Regarding stock and lead time: the LC1D09M7C is maintained as a standard stocked item due to its widespread use across TeSys D motor control applications. Orders are subject to pre-shipment functional testing — including coil energisation verification, contact resistance measurement, and auxiliary contact continuity check — before dispatch. Customers are advised to confirm current stock levels and lead times directly with NANKMOS at [email protected] or +86 18359268345 to ensure project schedule alignment.
