Schneider Electric LC1D25M7C Contactor

Product Details

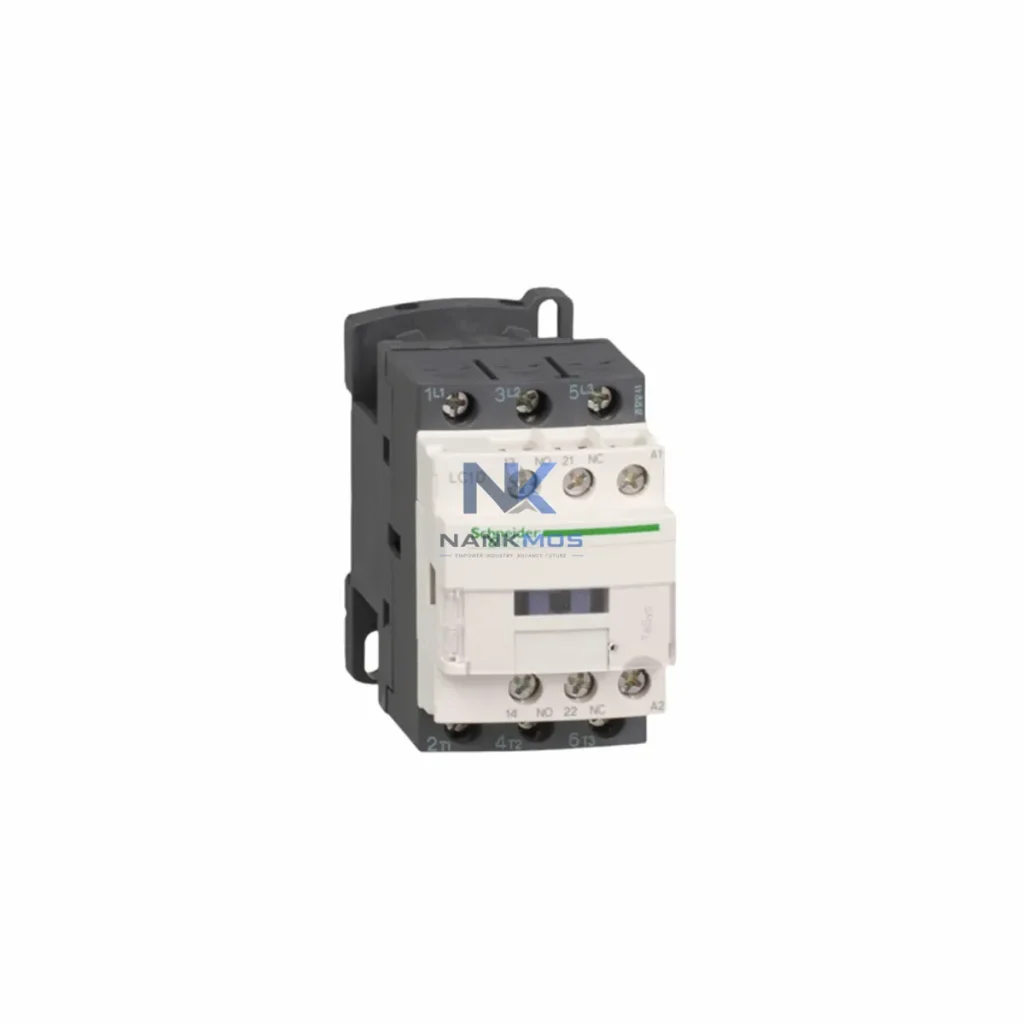

LC1D25M7C Product Description

The Schneider Electric LC1D25M7C is a 25 A three-pole IEC contactor from the TeSys D series, engineered to serve as a precision switching element within layered industrial control architectures. Rated for AC-3 duty at 11 kW / 400 V, it accepts a 220 V AC coil (suffix M7) and is designed for seamless integration across control, power, and protection layers in manufacturing, process, and infrastructure automation systems. Its compact DIN-rail footprint, standardised auxiliary contact interface, and broad accessory ecosystem make it a cornerstone component for system architects who demand consistency, scalability, and long-term maintainability across multi-cabinet installations.

In a complete automation architecture, the LC1D25M7C does not operate in isolation. It sits at the intersection of the control layer and the execution layer, receiving discrete switching commands from a PLC digital output module — such as the Schneider Electric TM3DQ16T or TM3DQ8T — and translating those commands into reliable power switching for motors, pumps, fans, compressors, and resistive loads. The contactor's coil suppression circuit reduces inductive kickback, protecting the PLC output card and extending the service life of both devices. When paired with a TeSys D overload relay such as the LRD22 (16–22 A) or LRD32 (23–32 A), the LC1D25M7C forms a certified motor starter assembly that satisfies IEC 60947-4-1 coordination requirements and simplifies panel certification.

At the communication layer, the LC1D25M7C integrates naturally with Schneider Electric's Modicon M221, M241, or M251 PLCs via hardwired I/O, while auxiliary contact blocks — such as the LADN11 (1NO+1NC) or LADN22 (2NO+2NC) — provide feedback signals for status monitoring, interlock logic, and SCADA diagnostics. These feedback contacts can be wired directly to TM3 digital input modules, enabling real-time contactor state visibility within a Vijeo Designer or EcoStruxure Machine Expert HMI project. For installations requiring remote diagnostics, the contactor assembly can be monitored through an IFM IO-Link master or a Schneider Electric LUCM smart motor controller, surfacing coil voltage, contact wear indicators, and trip history over PROFIBUS DP or Modbus RTU to the supervisory layer.

From a power layer perspective, the LC1D25M7C is typically fed from a Schneider Electric Acti9 iC60N circuit breaker or an NSX100 MCCB, with upstream protection coordinated to achieve Type 2 coordination when combined with the appropriate overload relay. In multi-motor control panels, several LC1D25M7C units are often mounted on a common busbar system alongside LC1D09 and LC1D18 contactors, creating a scalable motor control centre (MCC) that can be expanded without rewiring the power distribution backbone. The TeSys D series' uniform 45 mm DIN-rail pitch simplifies busbar alignment and reduces panel assembly time.

For redundancy-critical applications — such as dual-pump alternation in water treatment, fan duty/standby switching in HVAC, or compressor lead/lag control in process plants — two LC1D25M7C contactors are configured in an electrically and mechanically interlocked pair using the LAD9R1 reversing kit or the LADR2 mechanical interlock accessory. This arrangement prevents simultaneous energisation, satisfies SIL 1 interlock requirements, and is fully supported within EcoStruxure Machine Expert's built-in motor control function blocks. The interlock wiring is standardised across the TeSys D range, meaning maintenance technicians familiar with LC1D09 or LC1D32 assemblies can service LC1D25M7C interlock panels without additional training.

In the protection layer, the LC1D25M7C is compatible with Schneider Electric's LAEB1 surge suppressor and LARC1 RC snubber, both of which mount directly onto the contactor body without additional wiring. These accessories are particularly important in installations where the contactor is located close to sensitive signal wiring or where EMC compliance is required under IEC 61000-4-5. For applications requiring phase-loss protection, the contactor is paired with a RM35TF30 three-phase voltage monitoring relay, which de-energises the coil circuit upon detection of phase asymmetry or undervoltage conditions, protecting downstream motors from single-phasing damage.

Long-term maintenance efficiency is a key design principle of the TeSys D architecture. The LC1D25M7C's contact block is field-replaceable without removing the contactor from the panel, and the coil cartridge can be swapped to change the control voltage rating — for example, from 220 V AC (M7) to 24 V DC (BD) — without replacing the entire contactor body. This modularity reduces spare-parts inventory requirements and allows maintenance teams to standardise on a single contactor frame size across multiple voltage zones within the same installation. Schneider Electric's SoMove software provides coil and contact diagnostics when the contactor is equipped with a LUCM smart module, enabling predictive maintenance scheduling based on actual switching cycle counts rather than fixed calendar intervals.

The LC1D25M7C is manufactured at Schneider Electric's IEC-certified production facilities and is supplied with full CE, RoHS, and REACH compliance documentation. Each unit undergoes factory acceptance testing including coil pull-in/drop-out voltage verification, contact resistance measurement, and dielectric withstand testing before shipment. NANKMOS maintains verified in-stock inventory of the LC1D25M7C and ships with a 12-Month Warranty covering manufacturing defects, coil failure, and contact assembly integrity. Pre-shipment functional testing is performed on every unit, and a test report is available upon request for quality-critical procurement processes.

The LC1D25M7C achieves its full system value when deployed as part of a coordinated automation platform rather than as a standalone switching device. In a typical Schneider Electric EcoStruxure-based motor control architecture, the contactor is commanded by a Modicon M241 or M251 PLC via a TM3DQ16T transistor output module, which provides the 24 V DC pilot signal to an interposing relay before energising the 220 V AC coil circuit. The TM3DI16 digital input module reads the LC1D25M7C's auxiliary contact feedback, enabling the PLC program to confirm contactor state and trigger fault alarms within milliseconds of a contact weld or coil failure event.

For motor protection, the LC1D25M7C is assembled with an LRD22 or LRD32 TeSys D overload relay, forming a certified direct-on-line (DOL) starter. The overload relay's trip signal is wired to a TM3DI8 input module, and the trip event is logged in the Vijeo Designer HMI project running on a HMIG3U or HMIS65 panel PC, providing operators with a timestamped fault record and one-touch reset capability. In variable-speed applications, the LC1D25M7C serves as the bypass contactor in a ATV320 or ATV630 variable frequency drive (VFD) bypass circuit, allowing the motor to run at full speed during drive maintenance without interrupting the process.

Power distribution to the contactor panel is managed through a Schneider Electric Acti9 iC60N 32 A circuit breaker on the incoming feeder, with an A9N26484 Vigi RCD module providing earth-fault protection in wet or outdoor installations. For multi-motor panels, a Linergy BW busbar system distributes the incoming supply across multiple LC1D25M7C and LC1D09 contactors, maintaining a clean, inspectable power distribution architecture. An RM35TF30 three-phase voltage monitoring relay monitors supply quality and inhibits contactor energisation during phase-loss or undervoltage conditions, protecting motors from single-phasing damage across the entire panel.

Manufacturing & Assembly Lines: In automotive body-in-white and general manufacturing lines, the LC1D25M7C controls conveyor drive motors, pneumatic compressors, and coolant pump motors within PLC-managed sequence programs. Its 10-million-operation mechanical endurance supports high-cycle duty in continuous production environments, and its standardised TeSys D footprint allows rapid replacement during scheduled maintenance windows without panel rewiring.

Water & Wastewater Treatment: Municipal water treatment plants deploy the LC1D25M7C in duty/standby pump alternation panels, where two contactors are interlocked via the LAD9R1 reversing kit to prevent simultaneous energisation of primary and backup pumps. The contactor's IP20 rating is supplemented with a LAPC4 protective cover in humid pump rooms, and the auxiliary contact feedback is monitored by a SCADA system over Modbus RTU for remote pump status visibility.

Power & Energy Infrastructure: In MV/LV substation auxiliary systems, the LC1D25M7C switches transformer cooling fans, battery charger feeds, and auxiliary lighting circuits. Its wide operating temperature range (−40 °C to +60 °C) suits outdoor switchgear kiosks, and its CE and IEC 60947-4-1 certification satisfies utility procurement specifications. Coil suppression accessories (LAEB1) are fitted as standard to protect substation control wiring from inductive transients.

Oil, Gas & Petrochemical: In ATEX-classified areas, the LC1D25M7C is installed inside purged and pressurised enclosures (Ex p) to control Ex d motors on pumps and agitators. The contactor's robust contact geometry and high mechanical endurance are well-suited to the frequent start/stop cycles typical of batch process control, and its compatibility with the LUCM smart motor controller enables predictive maintenance data to be surfaced over PROFIBUS DP to the DCS historian.

HVAC & Building Automation: In large commercial HVAC systems, the LC1D25M7C controls air handling unit (AHU) supply and return fans, chiller compressor contactors, and cooling tower fan motors. Integration with a Modicon M221 PLC and EcoStruxure Building Operation platform enables demand-based fan speed scheduling, fault logging, and remote reset — reducing energy consumption and maintenance call-outs across multi-floor building management systems.

Q1: Is the LC1D25M7C compatible with TeSys D overload relays for Type 2 coordination? Yes. The LC1D25M7C is certified for Type 2 coordination with the LRD22 (16–22 A) and LRD32 (23–32 A) TeSys D overload relays per IEC 60947-4-1. The combination forms a factory-certified motor starter assembly. Schneider Electric's coordination tables (available in the TeSys D catalogue) specify the upstream fuse or MCCB rating required to achieve Type 2 coordination for each motor power rating. NANKMOS can supply matched LC1D25M7C + LRD relay pairs with coordination documentation upon request.

Q2: Can the LC1D25M7C coil voltage be changed after installation without replacing the contactor body? Yes, within the TeSys D architecture, the coil cartridge is a field-replaceable module. The M7 (220 V AC) coil can be replaced with a BD (24 V DC), B7 (24 V AC), or other standard TeSys D coil cartridges without removing the contactor from the DIN rail or disconnecting the main power cables. This modularity is a key advantage for installations that undergo control voltage standardisation projects, as it eliminates the need to replace the entire contactor body and re-certify the panel assembly.

Q3: What is NANKMOS's warranty and supply commitment for the LC1D25M7C? NANKMOS provides a 12-Month Warranty on all LC1D25M7C units, covering manufacturing defects, coil failure, and contact assembly integrity from the date of shipment. Each unit undergoes pre-shipment functional testing including coil pull-in/drop-out voltage verification and contact resistance measurement. NANKMOS maintains verified in-stock inventory and supports urgent procurement requirements with same-day or next-day dispatch. Test reports and CE/RoHS compliance documentation are available upon request for quality-critical projects.
