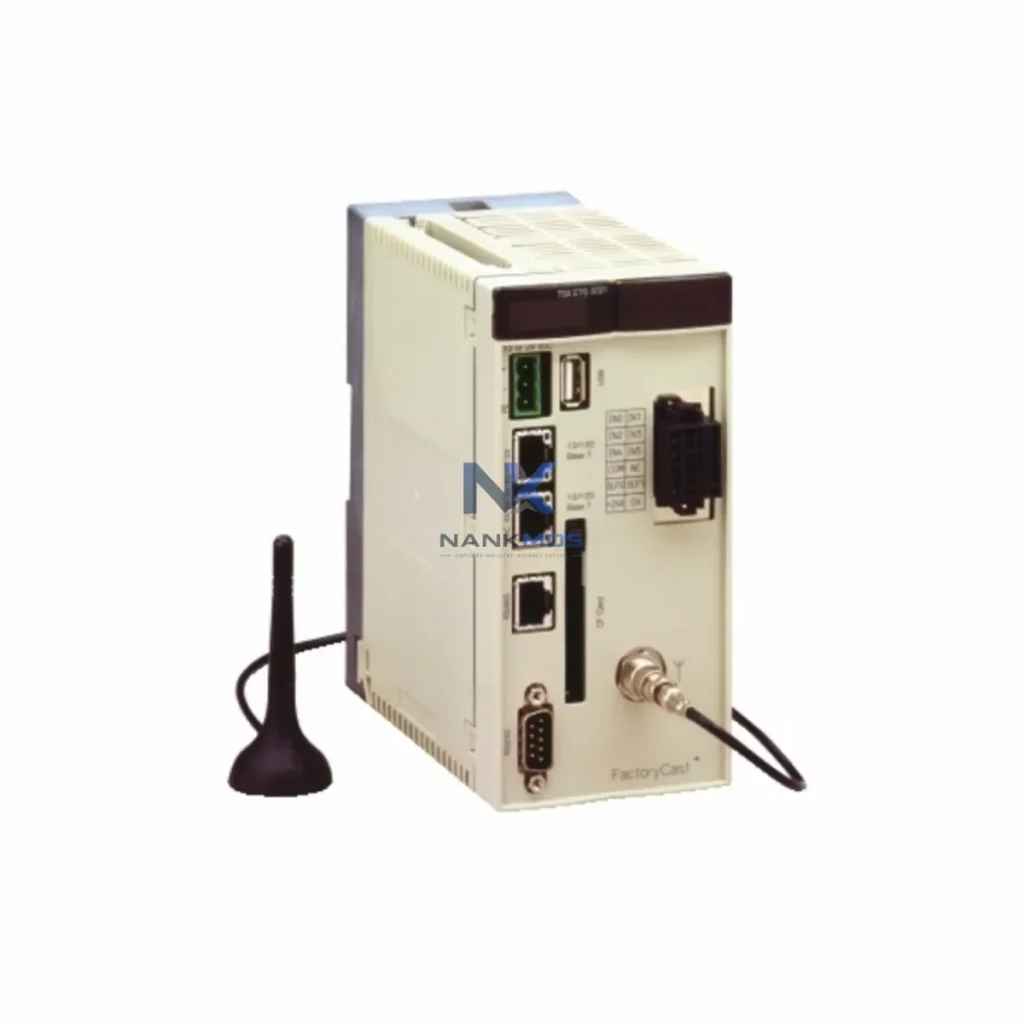

Schneider Electric TSXETG3000 Ethernet Communication Gateway

Product Details

TSXETG3000 Product Description

The Schneider Electric TSXETG3000 is a dedicated Ethernet communication gateway engineered for Modicon Premium PLC platforms, delivering seamless protocol conversion between X-Way and Modbus TCP/IP across industrial Ethernet networks. In smart factory environments where data continuity is non-negotiable, the TSXETG3000 serves as the critical bridge between field-level automation devices and upper-level SCADA, HMI, and MES systems — enabling real-time visibility, remote diagnostics, and plant-wide connectivity from a single, compact module.

Designed for demanding industrial applications in process control, energy management, and discrete manufacturing, the TSXETG3000 integrates directly into the Modicon Premium rack, eliminating the need for external converters or additional wiring infrastructure. Its native support for Modbus TCP/IP ensures compatibility with a broad ecosystem of industrial devices, including Schneider Advantys STB remote I/O islands, Magelis HMI terminals, Vijeo Citect SCADA servers, and third-party Modbus-compliant sensors and actuators. This interoperability makes the TSXETG3000 a foundational component in any multi-vendor industrial network architecture.

Pre-shipment functional testing is performed on every TSXETG3000 unit before dispatch, covering communication link verification, protocol handshake validation, and network parameter integrity checks. Each unit ships with a 12-month warranty, backed by in-stock inventory for rapid deployment across global automation sites.

In a typical smart factory deployment, the TSXETG3000 sits at the heart of the data flow architecture, connecting the Modicon Premium CPU (such as the TSX P57 series processor) to the plant Ethernet backbone. Field signals originating from Schneider Advantys STB distributed I/O modules — covering digital inputs, analog measurements, and relay outputs — are aggregated at the Premium rack and transmitted upstream via the TSXETG3000's Modbus TCP/IP interface.

At the SCADA layer, Vijeo Citect or Wonderware InTouch servers poll the TSXETG3000 at configurable scan rates, pulling real-time process variables including motor speed references from Altivar ATV312 variable frequency drives, temperature readings from Pt100 sensors wired through TSX AEY analog input modules, and pressure feedback from field transmitters connected via Modbus RTU-to-TCP converters. The TSXETG3000 handles the protocol translation transparently, presenting all field data as standard Modbus TCP/IP registers to the SCADA host.

For HMI integration, Magelis GTO and XBTGT touchscreen terminals connect directly to the TSXETG3000 over Ethernet, enabling operators to monitor production KPIs, acknowledge alarms, and adjust setpoints without leaving the control room. The gateway's dual-role client/server architecture allows simultaneous connections from multiple HMI nodes and SCADA clients, supporting redundant monitoring configurations in critical process lines.

Edge connectivity is extended further through Schneider ConneXium industrial managed switches, which segment the factory network into dedicated VLAN zones for PLC traffic, HMI communications, and enterprise data exchange. The TSXETG3000 integrates seamlessly into these segmented topologies, maintaining deterministic communication latency even under high network load conditions. Where legacy Modbus RTU devices — such as older Telemecanique ATS series soft starters or third-party energy meters — remain in service, Modbus RTU/TCP gateways bridge the protocol gap, feeding data into the TSXETG3000's network segment for unified SCADA visibility.

Remote diagnostic capability is a key operational advantage of the TSXETG3000. Maintenance engineers can access the gateway's web-based diagnostic interface from any networked workstation, reviewing communication statistics, error counters, and connection status without physical access to the control panel. This capability is particularly valuable in geographically distributed installations — water treatment facilities, substations, and offshore platforms — where on-site intervention carries significant cost and safety implications. Integration with Schneider EcoStruxure Plant Expert further extends remote monitoring to predictive maintenance workflows, correlating communication anomalies with equipment health trends.

Many industrial sites operating Modicon Premium platforms face a common challenge: the PLC controls the process effectively, but data remains trapped within the automation layer, invisible to production management, quality systems, and enterprise ERP platforms. The TSXETG3000 directly addresses this data isolation problem by providing a standards-based Ethernet interface that makes PLC data accessible to any Modbus TCP/IP-capable system — without requiring PLC program modifications or proprietary middleware.

Protocol fragmentation is another persistent issue in brownfield automation environments. Sites that have evolved over decades often run a mix of X-Way, Modbus RTU, Uni-TE, and Ethernet-based devices, creating communication silos that prevent unified monitoring. The TSXETG3000's X-Way-to-Modbus TCP/IP conversion capability resolves this fragmentation, allowing legacy Premium network segments to participate in modern Ethernet-based architectures alongside newer Modicon M340 or M580 controllers.

For remote monitoring and alarm management, the TSXETG3000 enables SCADA systems to implement event-driven alarm architectures — triggering notifications when process variables exceed defined thresholds, logging alarm timestamps with millisecond resolution, and routing alerts to operator workstations, mobile devices, or email systems. This capability transforms reactive maintenance into proactive intervention, reducing unplanned downtime and improving overall equipment effectiveness (OEE).

Production line transparency is achieved through continuous data streaming from the TSXETG3000 to historian servers and data visualization platforms. Real-time dashboards display cycle times, batch counts, energy consumption per production unit, and equipment utilization rates — giving production managers the operational intelligence needed to optimize throughput and reduce waste. System expansion is straightforward: additional Modicon Premium racks, remote I/O islands, or third-party Modbus devices can be added to the network without disrupting existing TSXETG3000 configurations, supporting phased smart factory rollouts aligned with capital investment cycles.

Q1: What communication protocols does the TSXETG3000 support, and is it compatible with third-party Modbus TCP/IP devices?The TSXETG3000 supports Modbus TCP/IP as its primary Ethernet protocol and X-Way (UNI-TE) for communication with Modicon Premium network segments. It is fully compatible with any standard Modbus TCP/IP client or server device, including third-party SCADA servers, HMI terminals, energy meters, and remote I/O systems that conform to the Modbus TCP/IP specification.

Q2: How does the TSXETG3000 perform in high-traffic industrial networks, and what is the expected communication latency?The TSXETG3000 operates on a 10/100 Mbps Ethernet interface and supports simultaneous connections from multiple clients. In properly segmented industrial networks — using managed switches with QoS prioritization — typical Modbus TCP/IP transaction latency is under 10 ms, suitable for real-time SCADA polling and HMI refresh cycles in most process and discrete manufacturing applications.

Q3: Can the TSXETG3000 be used for remote diagnostics, and what tools are available for network troubleshooting?Yes. The TSXETG3000 provides a built-in web-based diagnostic interface accessible via standard browser over the plant Ethernet network. Engineers can monitor communication statistics, active connections, error rates, and network parameters remotely. Integration with Schneider EcoStruxure architecture further enables centralized asset monitoring and predictive maintenance workflows without requiring on-site access.

Q4: What warranty and pre-shipment testing does the TSXETG3000 include?Every TSXETG3000 unit undergoes pre-shipment functional testing covering communication link verification, Modbus TCP/IP protocol handshake validation, and network parameter integrity checks before dispatch. Each unit is covered by a 12-month warranty from the date of shipment, with in-stock inventory available for immediate delivery to global automation sites.
