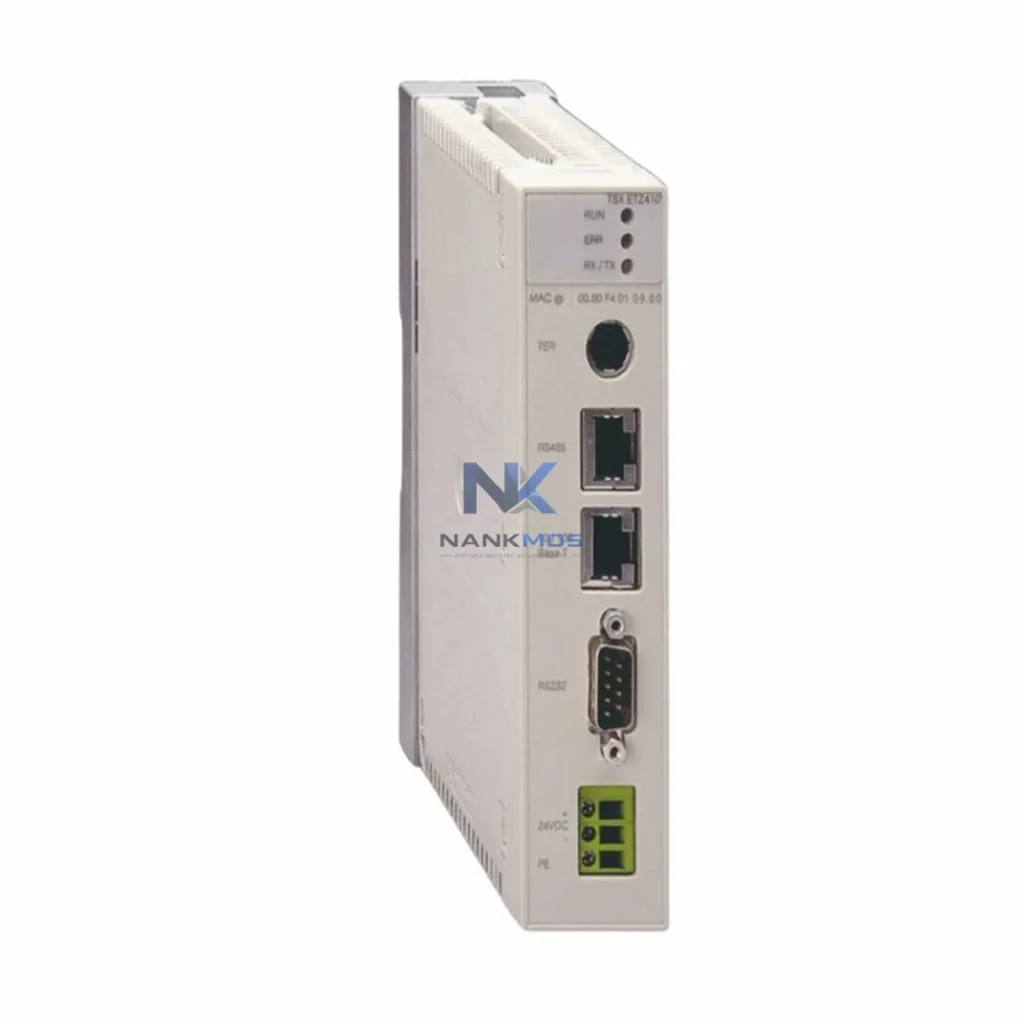

Schneider Electric TSXETZ410 Communication Gateway

Product Details

TSXETZ410 Product Description

The Schneider Electric TSXETZ410 is a high-performance Ethernet TCP/IP communication gateway engineered for Modicon Premium PLC platforms, delivering seamless protocol bridging, real-time data transmission, and deep integration across smart factory automation networks. Designed to serve as the critical communication backbone between field devices and supervisory systems, the TSXETZ410 enables industrial sites to eliminate data silos, unify heterogeneous network segments, and achieve full production transparency from sensor to SCADA.

In modern smart factory environments, the ability to move data reliably across protocol boundaries is no longer optional — it is the foundation of operational intelligence. The TSXETZ410 addresses this need directly, supporting Ethernet TCP/IP and Modbus TCP communication protocols that allow Modicon Premium controllers to exchange real-time process data with HMI terminals, SCADA platforms, remote I/O stations, and enterprise MES systems without protocol mismatch or data loss. Its dual-role capability as both a network interface and a protocol converter makes it an indispensable component in multi-tier automation architectures.

The TSXETZ410 sits at the intersection of field-level control and plant-wide data infrastructure, enabling a continuous and reliable data flow from the production floor to supervisory and enterprise layers. In a typical smart factory deployment, field sensors and actuators feed process signals into Modicon Premium PLCs — such as the TSX P57 454M or TSX P57 554M CPU modules — where the TSXETZ410 module bridges the PLC backplane to the Ethernet network, converting internal UNI-TE messaging into standard Modbus TCP frames that any connected system can consume.

Upstream from the PLC, the TSXETZ410 connects directly to industrial Ethernet switches — for example, Schneider Electric ConneXium managed switches or equivalent DIN-rail Ethernet switches — that segment and route traffic across production zones. This structured network topology ensures that time-sensitive control data is prioritized while diagnostic and monitoring traffic flows in parallel without interference. Remote I/O stations, such as Modicon STB island bus modules or TSX Momentum distributed I/O, extend the data collection perimeter to remote machine cells, feeding analog and digital signals back through the Ethernet backbone to the Premium PLC and onward to SCADA.

At the supervisory layer, SCADA platforms — including Schneider Electric Vijeo Citect or third-party systems like Wonderware InTouch — subscribe to Modbus TCP data published by the TSXETZ410, enabling real-time process visualization, alarm management, and trend logging. HMI terminals, such as Schneider Electric Magelis XBTGT series panels, connect to the same Ethernet segment and display live process values sourced directly from the Premium PLC via the TSXETZ410 gateway interface. This eliminates the need for dedicated serial communication cables between HMI and PLC, simplifying wiring and reducing latency.

For drive and motion integration, variable frequency drives — including Schneider Electric Altivar ATV312 or ATV630 series — equipped with Ethernet communication cards can be monitored and parameterized through the same network segment managed by the TSXETZ410. Speed references, fault codes, energy consumption data, and run-hour counters are all accessible in real time, enabling predictive maintenance workflows and energy optimization routines to run automatically within the SCADA or MES environment.

Edge gateway devices and data acquisition modules further extend the TSXETZ410's reach into IIoT architectures. By connecting an edge computing node — such as a Schneider Electric EcoStruxure Machine Advisor gateway or a compatible third-party edge device — to the Ethernet segment, plant engineers can aggregate Modbus TCP data from multiple Premium PLCs, apply local analytics, and push structured datasets to cloud-based dashboards or enterprise ERP systems. This architecture supports full production transparency, from individual sensor readings to plant-wide KPI dashboards, all anchored by the reliable protocol bridging capability of the TSXETZ410.

Many industrial sites operate with a fragmented communication landscape: legacy PLCs running proprietary protocols, isolated machine cells with no network connectivity, and SCADA systems unable to access real-time field data. The TSXETZ410 directly resolves these challenges by providing a standards-based Ethernet TCP/IP and Modbus TCP interface for Modicon Premium controllers, allowing them to participate fully in modern industrial network architectures without requiring controller replacement or costly rewiring.

Protocol Unification: Sites running mixed Modbus RTU and Ethernet environments can use the TSXETZ410 to bridge legacy serial segments into the Ethernet backbone, eliminating the protocol mismatch that causes data gaps between older field devices and newer supervisory systems.

Remote Monitoring and Diagnostics: With the TSXETZ410 in place, maintenance engineers can access PLC diagnostic data, I/O status, and fault registers remotely via standard Modbus TCP clients — without requiring physical access to the control panel. This capability dramatically reduces mean time to repair (MTTR) and supports proactive maintenance scheduling.

Production Line Transparency: By connecting Modicon Premium PLCs to SCADA and MES platforms through the TSXETZ410, production managers gain real-time visibility into cycle times, reject rates, machine utilization, and energy consumption — enabling data-driven decisions that improve OEE and reduce unplanned downtime.

Alarm Tracking and Event Logging: The TSXETZ410 enables SCADA systems to poll PLC alarm registers in real time, ensuring that fault events are captured, timestamped, and logged for root cause analysis. This closes the alarm management gap that exists when PLCs operate in isolation from supervisory systems.

System Scalability: As production capacity grows, additional Modicon Premium PLCs, remote I/O stations, and HMI terminals can be added to the Ethernet network without disrupting existing communication paths. The TSXETZ410's standard Ethernet interface ensures forward compatibility with future network expansions and protocol upgrades.

Q1: What communication protocols does the TSXETZ410 support, and is it compatible with third-party SCADA systems? The TSXETZ410 supports Ethernet TCP/IP, Modbus TCP, and UNI-TE protocols. Modbus TCP is an open standard supported by virtually all major SCADA and HMI platforms, including Schneider Electric Vijeo Citect, Wonderware, iFIX, and Ignition, ensuring broad third-party compatibility without custom drivers or middleware.

Q2: How does the TSXETZ410 perform in high-traffic industrial networks with multiple simultaneous connections? The TSXETZ410 is designed for industrial-grade network environments and supports multiple concurrent Modbus TCP connections, allowing SCADA servers, HMI terminals, and remote diagnostic clients to access PLC data simultaneously. Network stability is maintained through standard Ethernet QoS mechanisms and managed switch configurations that prioritize control traffic.

Q3: Can the TSXETZ410 be used for remote diagnostics and firmware access over a WAN or VPN connection? Yes. Because the TSXETZ410 uses standard Ethernet TCP/IP, it is fully compatible with VPN-secured remote access architectures. Plant engineers can connect to the Modicon Premium PLC remotely using Unity Pro or PL7 Pro programming software over a VPN tunnel, enabling remote diagnostics, program uploads, and parameter adjustments without on-site visits.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the TSXETZ410? Every TSXETZ410 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify communication interface integrity, protocol response, and physical connector condition before dispatch. In-stock units are available for immediate shipment, and our technical team provides post-sale support for integration and commissioning queries.
