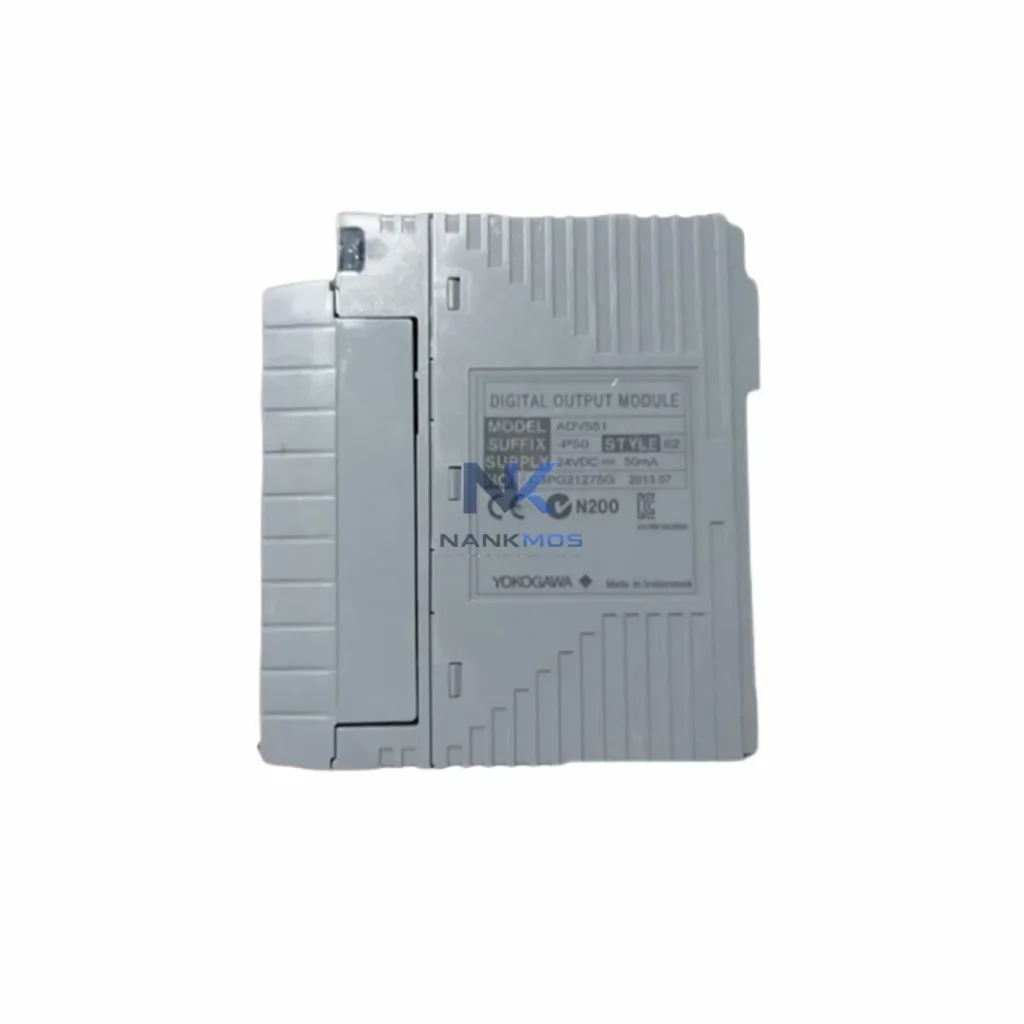

Yokogawa ADV551-P60 Digital Output Module

Product Details

ADV551-P60 Product Description

The Yokogawa ADV551-P60 is a high-reliability digital output module engineered for the CENTUM VP and CENTUM CS 3000 distributed control systems. Designed to meet the rigorous demands of smart manufacturing environments, this module delivers precise load switching, deterministic signal output, and low-power standby operation — making it a cornerstone component in energy-aware industrial automation architectures. With 32 isolated digital output channels and robust field-side isolation, the ADV551-P60 enables plant engineers to implement granular load management strategies that directly reduce unnecessary energy consumption across motor starters, solenoid valves, actuators, and relay-driven field devices.

In modern production facilities where energy cost and carbon footprint are under increasing scrutiny, the ADV551-P60 provides the output-side intelligence needed to coordinate with upstream energy monitoring and control layers. Its deterministic scan-cycle performance ensures that output commands from the CENTUM VP controller are executed with minimal latency, supporting tight production rhythm control and reducing the risk of energy-wasting false starts or prolonged actuator hold times.

The ADV551-P60 does not operate in isolation — its energy-control value is fully realised when integrated within a coordinated automation architecture. In a typical CENTUM VP-based plant, the module receives output commands from the Yokogawa ACM11 CPU module, which executes the control logic and energy management sequences defined in the DCS engineering environment. Field-side, the ADV551-P60 drives loads such as motor contactors, solenoid valve banks, and relay panels, all of which are monitored for current draw and thermal state by Yokogawa power monitoring modules installed in the same I/O nest.

For motor-driven applications, the ADV551-P60 output signals are frequently used to command variable frequency drives (VFDs) — such as the Yaskawa GA700 or Siemens SINAMICS G120 series — enabling soft-start and speed-ramp sequences that dramatically reduce inrush current and mechanical stress. This coordination between the digital output module and the drive system is one of the most impactful energy-saving strategies available in process automation, as it eliminates the peak-demand spikes that inflate energy billing and stress distribution infrastructure.

On the input side, the ADV551-P60 works in tandem with Yokogawa ADV151 digital input modules, which feed back field device status — valve open/closed confirmation, motor run/stop feedback, and interlock signals — into the CENTUM VP controller. This closed-loop feedback architecture ensures that output commands are confirmed and that energy is not wasted holding actuators in transitional states. Alongside the digital I/O layer, Yokogawa AAI141 analog input modules provide continuous process variable data — temperature, pressure, flow — that the DCS uses to modulate output duty cycles and reduce unnecessary actuator activity during stable process conditions.

For facilities implementing SCADA-level energy dashboards, the ADV551-P60's output state data is aggregated through the Yokogawa FAST/TOOLS SCADA platform or third-party OPC-UA clients, enabling real-time visibility into load switching patterns, actuator cycle counts, and energy consumption trends. HMI terminals running on Yokogawa Exaopc OPC server infrastructure display this data to operators, supporting informed decisions about load shedding, shift scheduling, and predictive maintenance intervals. Communication between the CENTUM VP field control station and the plant network is handled by the Yokogawa ACF11 communication module, which supports Ethernet-based integration with MES and ERP systems for enterprise-level energy reporting.

In safety-instrumented applications, the ADV551-P60 is deployed alongside Yokogawa ProSafe-RS safety I/O modules, ensuring that energy-control sequences do not conflict with safety shutdown logic. The separation of standard and safety output channels, managed through the CENTUM VP and ProSafe-RS integration layer, guarantees that load management optimisations never compromise functional safety integrity levels.

Production line energy optimisation begins at the output layer. Every unnecessary actuator activation, every prolonged solenoid hold, and every uncoordinated motor start represents wasted energy and accelerated component wear. The ADV551-P60 addresses this at the hardware level by providing fast, reliable, and isolated digital output switching that responds precisely to DCS control logic — eliminating the timing slop and contact bounce that cause energy-wasting re-trigger events in older relay-based output systems.

In batch manufacturing and continuous process environments alike, the ADV551-P60 enables load-shedding sequences to be implemented directly in CENTUM VP control logic. During low-demand production windows — shift changeovers, scheduled maintenance holds, or recipe transition periods — the DCS can systematically de-energise non-critical field devices through the ADV551-P60 output channels, reducing the facility's base load and lowering thermal stress on electrical distribution equipment. This capability is particularly valuable in facilities operating under time-of-use electricity tariffs, where demand reduction during peak pricing windows delivers direct cost savings.

The module's low-power backplane design also contributes to overall panel thermal management. By minimising heat generation within the I/O nest, the ADV551-P60 reduces the cooling load on control room HVAC systems — a frequently overlooked source of energy waste in large DCS installations. Combined with the thermal monitoring capabilities of the CENTUM VP system health diagnostics, plant engineers can track I/O nest temperatures and proactively schedule maintenance before thermal degradation affects module performance or triggers unplanned shutdowns.

From a predictive maintenance perspective, the ADV551-P60's output channel diagnostics — accessible through the CENTUM VP engineering environment — provide cycle count data and output state history that can be used to identify field devices approaching end-of-life. Replacing a failing solenoid valve or contactor before it causes a process upset eliminates the energy waste and production loss associated with unplanned downtime. This proactive approach to asset management, enabled by the ADV551-P60's integration with the CENTUM VP diagnostic framework, is a key pillar of modern energy-efficient production line strategy.

All ADV551-P60 units supplied by NANKMOS are sourced from authorised distribution channels, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty. In-stock availability ensures that replacement or expansion projects can proceed without the lead-time delays that force plants to operate with degraded I/O capacity — a situation that invariably leads to manual workarounds, increased operator intervention, and higher energy consumption per unit of output.

Q1: How does the ADV551-P60 contribute to measurable energy savings on a production line? The ADV551-P60 enables the CENTUM VP DCS to implement precise load switching sequences, eliminating unnecessary actuator energisation during idle or transition periods. When combined with VFD soft-start commands and SCADA-level load monitoring, facilities typically observe reductions in peak demand charges and improved overall equipment effectiveness (OEE) through fewer energy-related process upsets.

Q2: Is the ADV551-P60 compatible with both CENTUM VP and CENTUM CS 3000 systems? Yes. The ADV551-P60 is designed for use within Yokogawa CENTUM VP and CENTUM CS 3000 field control stations. It slots into standard Yokogawa I/O nests and is recognised by the CENTUM engineering environment without additional configuration. For integration with ProSafe-RS safety systems, a gateway or dedicated safety I/O layer is recommended.

Q3: What is the recommended replacement or upgrade path if the ADV551-P60 is discontinued or unavailable? For direct replacement, NANKMOS recommends verifying the CENTUM VP I/O nest slot compatibility and cross-referencing with Yokogawa's current digital output module lineup, including the ADV551-P00 and ADV551-P10 variants where applicable. Our technical team can assist with compatibility verification and sourcing of equivalent modules to minimise downtime during replacement projects.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted? Every ADV551-P60 unit supplied by NANKMOS undergoes functional output channel verification, isolation resistance testing, and backplane connector inspection prior to dispatch. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test documentation upon request. Contact [email protected] for warranty claims or technical support.
