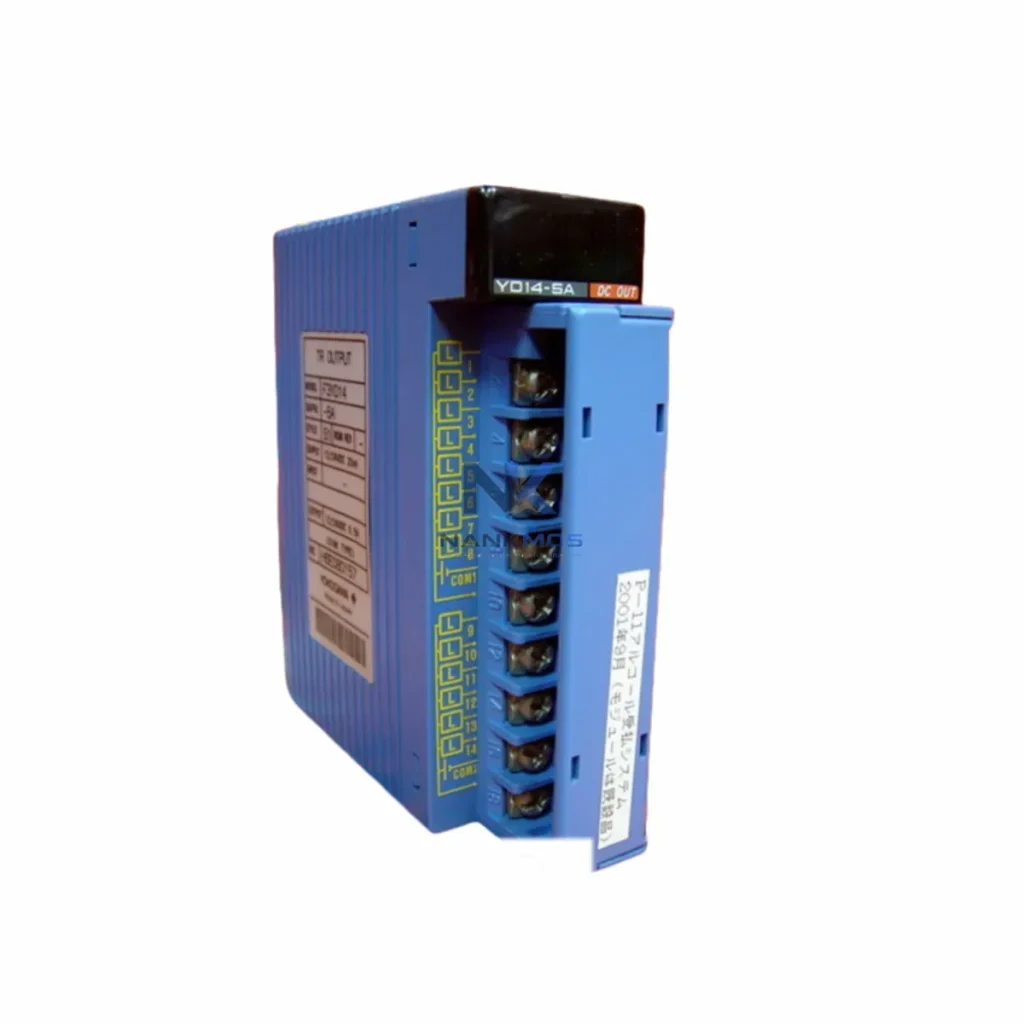

Yokogawa F3YD14-5A Transistor Output Module

Product Details

F3YD14-5A Product Description

The Yokogawa F3YD14-5A is a 14-point NPN transistor output module engineered for the FA-M3 modular PLC platform. Designed to minimize switching losses and reduce unnecessary load cycles, the F3YD14-5A delivers precise, high-speed digital output control that directly supports energy-efficient factory automation. With a rated output current of 0.5 A per point and a maximum aggregate load capacity matched to the FA-M3 backplane power budget, this module enables production engineers to implement load-aware output sequencing — eliminating the energy spikes that occur when multiple actuators energize simultaneously. Its solid-state transistor switching eliminates contact wear, reduces heat generation, and lowers the thermal load on control panel enclosures, contributing to measurable reductions in cooling energy demand across the production floor.

The F3YD14-5A is fully compatible with the Yokogawa FA-M3 R-series CPU modules, including the F3SP71-4N and F3SP76-7N, and integrates seamlessly into multi-slot FA-M3 base units. Its deterministic scan-cycle response supports tight synchronization with servo drives, variable frequency drives (VFDs), and motion controllers — enabling production line beat-time optimization without sacrificing output reliability. Whether controlling conveyor motor starters, solenoid valves, indicator lamps, or relay coils, the F3YD14-5A provides the switching precision required for energy-conscious automation strategies.

In a fully integrated FA-M3 control architecture, the F3YD14-5A transistor output module operates as the final command layer between the PLC logic and field devices. The FA-M3 CPU — such as the F3SP76-7N — executes energy-optimized ladder or structured text programs that sequence output activation based on real-time load conditions. Paired with the F3XD32-3A digital input module, the system achieves closed-loop feedback on actuator states, preventing redundant energization of solenoids or motor contactors when the process does not require it.

For motor-driven loads, the F3YD14-5A output points interface directly with Yokogawa's compatible variable frequency drive (VFD) run/stop command inputs, enabling the PLC to issue speed-change or start/stop commands with millisecond precision. This tight coupling between the transistor output module and the drive system eliminates the energy waste associated with across-the-line motor starting and supports soft-start sequencing that reduces inrush current peaks — a key factor in lowering peak demand charges in industrial facilities.

The F3YD14-5A also works in conjunction with the F3LC11-1F MELSECNET/H communication module and the F3LE01-5T Ethernet module to relay output status data upstream to SCADA systems and energy management platforms. When integrated with a power monitoring module such as the Yokogawa WT series power analyzer or a third-party DIN-rail power meter connected via Modbus RTU, plant engineers gain real-time visibility into load consumption at the output-point level. This data feeds predictive maintenance algorithms that flag abnormal current draw — indicating a failing actuator or a jammed conveyor — before a fault causes unplanned downtime.

On the HMI side, the F3YD14-5A output states are visualized through Yokogawa's ProSafe-RS or compatible third-party HMI panels running on the FA-M3 network, giving operators a live view of which output channels are active, which are idle, and which are approaching thermal limits. The F3WD13-0N analog output module complements the transistor output layer by providing proportional control signals to positioners and control valves, while the F3AD08-6R analog input module feeds process variable data back to the CPU for closed-loop energy optimization. Together, these modules form a cohesive, power-aware automation strategy that reduces idle energy consumption, shortens production cycle times, and extends the service life of field devices.

Factory energy audits consistently identify two primary sources of avoidable consumption: unnecessary actuator energization during idle periods and excessive inrush current during uncoordinated equipment starts. The Yokogawa F3YD14-5A addresses both through its integration with FA-M3 PLC scan-cycle management and output interlock logic. By programming output activation sequences that stagger motor and solenoid starts across multiple F3YD14-5A modules, production engineers can flatten the facility's demand curve — reducing peak kW draw without slowing throughput.

The module's low leakage current in the OFF state (≤ 0.1 mA per point) ensures that de-energized outputs do not contribute phantom loads to the 24 VDC field power supply. Over a 14-point module operating across a three-shift production schedule, this characteristic translates into measurable annual energy savings compared to relay output alternatives, which also generate heat from coil resistance. The elimination of relay coil heat reduces the ambient temperature inside control panels, lowering the duty cycle of panel air conditioners and further reducing facility energy consumption.

Predictive maintenance integration is another key energy optimization lever. By monitoring the switching frequency and load current of each F3YD14-5A output point through the FA-M3 CPU's diagnostic functions, maintenance teams can identify actuators that are cycling more frequently than expected — a sign of process instability or mechanical wear. Early intervention prevents the energy-intensive consequences of unplanned stops: emergency restarts, scrap generation, and the energy cost of reheating process equipment from cold. The F3YD14-5A's photocoupler isolation also protects the PLC backplane from field-side voltage transients, reducing the risk of CPU faults that would halt the entire production line.

For facilities pursuing ISO 50001 energy management certification or carbon reduction targets, the F3YD14-5A provides the output control granularity needed to implement time-of-use energy strategies — scheduling high-load operations during off-peak tariff windows and reducing output activity during peak demand periods. All units are shipped after full functional and load testing, and are backed by a 12-Month Warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Q1: How does the F3YD14-5A contribute to measurable energy savings on a production line? The F3YD14-5A's solid-state transistor switching eliminates relay coil power consumption and contact arcing heat. Its low OFF-state leakage current (≤ 0.1 mA/point) prevents phantom loads on the 24 VDC field supply. When used with FA-M3 CPU interlock logic to stagger actuator starts, it reduces inrush current peaks and flattens facility demand curves — directly lowering energy costs and peak demand charges.

Q2: Which FA-M3 CPU and communication modules is the F3YD14-5A compatible with? The F3YD14-5A is compatible with all FA-M3 R-series CPU modules, including the F3SP71-4N and F3SP76-7N, and mounts in any FA-M3 base unit slot. It communicates with SCADA and energy management systems via FA-M3 network modules such as the F3LE01-5T Ethernet module and the F3LC11-1F MELSECNET/H module, supporting standard industrial protocols including Modbus TCP and MELSECNET/H.

Q3: Can the F3YD14-5A replace an existing relay output module without hardware redesign? In most FA-M3 installations, the F3YD14-5A can replace relay output modules for DC load applications (5–24 VDC, ≤ 0.5 A per point) without changes to the base unit or CPU configuration. Field wiring to NPN-compatible loads (solenoids, relay coils, VFD command inputs, indicator lamps) connects directly to the module's terminal block. For AC loads or high-current applications, a relay output module such as the F3YR08-0N remains the appropriate choice.

Q4: What does the 12-Month Warranty cover, and how is stock availability managed? All F3YD14-5A units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and operational failures under normal industrial conditions. Each unit undergoes pre-shipment functional and load testing to verify output switching performance and isolation integrity. Stock is maintained for prompt dispatch; lead times and current inventory levels are confirmed at the time of inquiry. Contact [email protected] or +86 18359268345 for availability and order processing.
