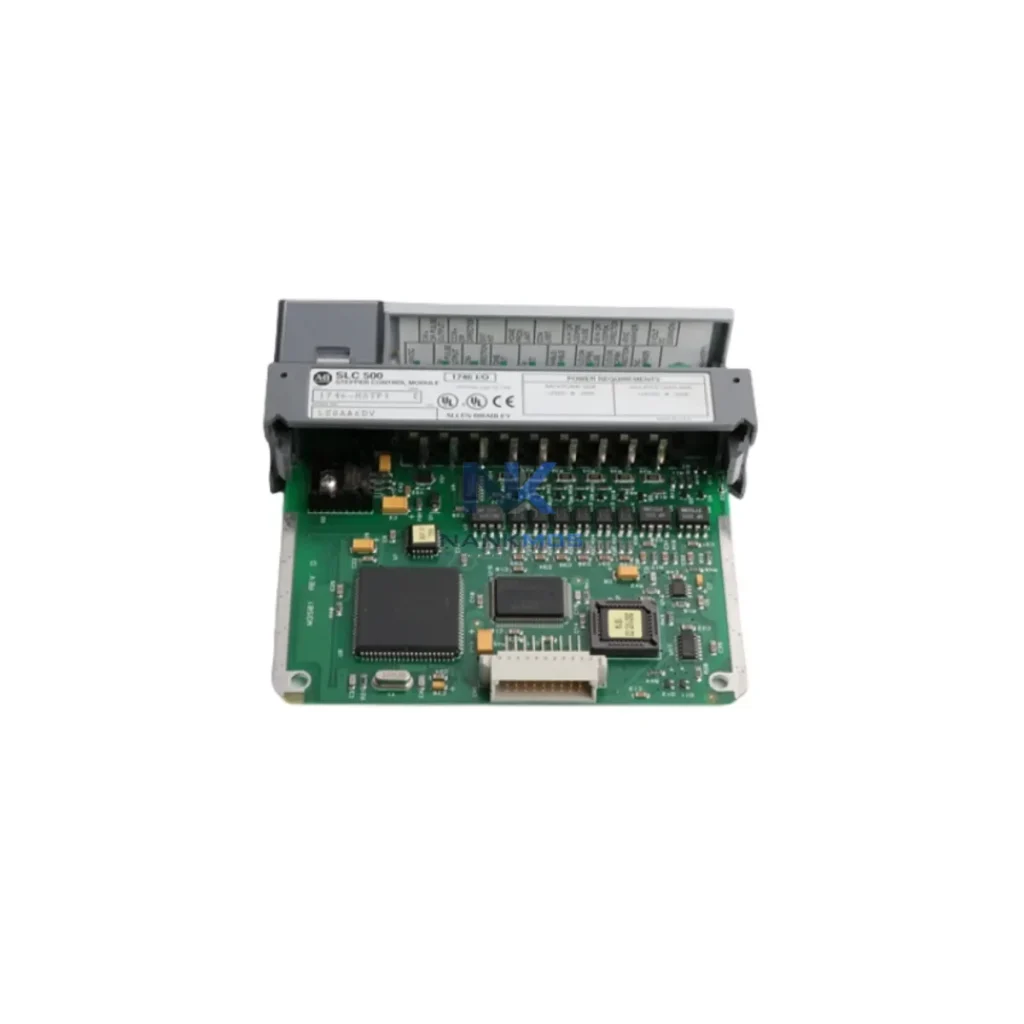

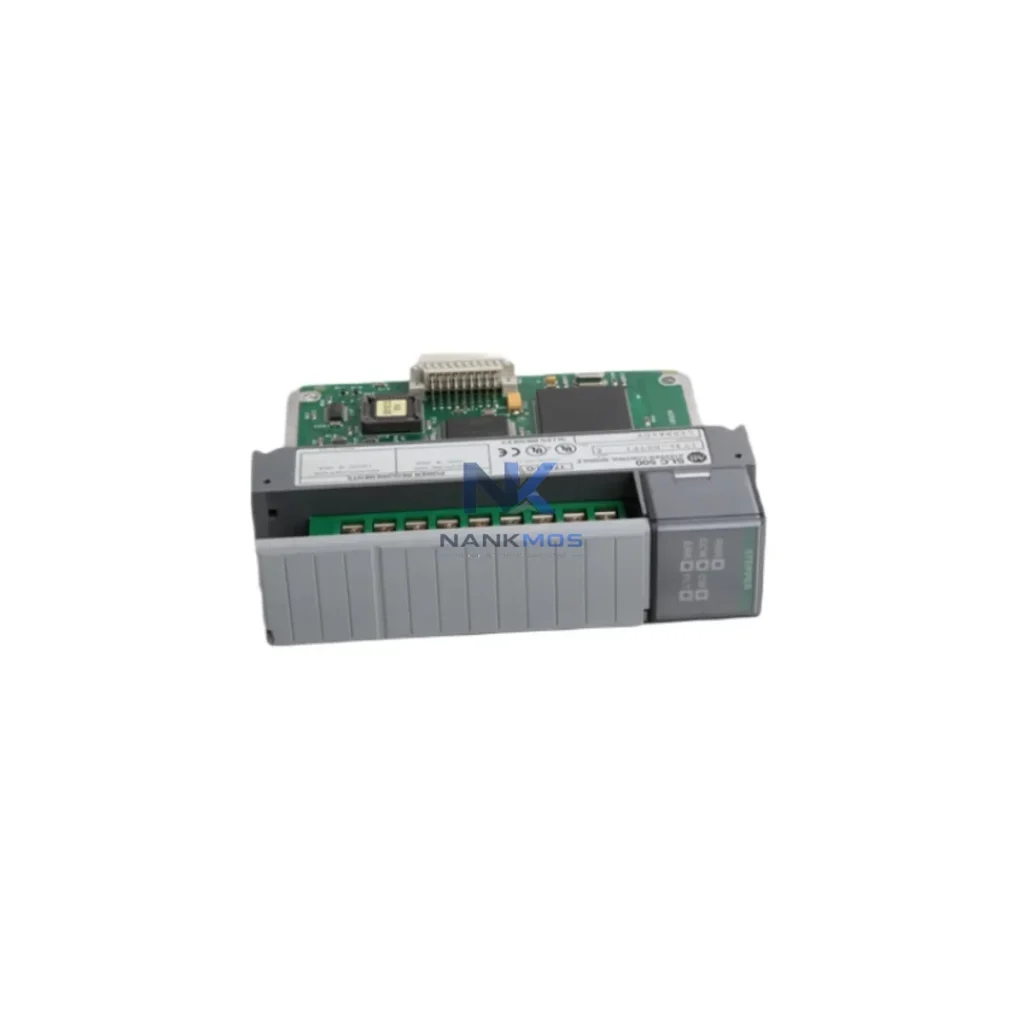

Allen-Bradley 1746-HSTP1 Stepper Control Module

Product Details

1746-HSTP1 Product Description

The Allen-Bradley 1746-HSTP1 is a high-speed stepper controller module engineered for seamless integration within the SLC 500 modular control platform. Designed by Rockwell Automation, this module occupies a single slot in the 1746 chassis and delivers precise open-loop stepper motor control directly from the SLC 500 processor backplane. Its architecture-native design eliminates the need for external motion controllers, consolidating motion sequencing, position indexing, and velocity profiling within the same rack environment as the main CPU — a critical advantage for compact machine control, packaging lines, and precision positioning applications where panel space and wiring complexity must be minimized.

The 1746-HSTP1 outputs pulse and direction signals at rates up to 250 kHz, supporting a wide range of stepper drives and motor combinations. It interfaces directly with the SLC 500 processor — such as the 1747-L532 or 1747-L543 — through the 1746 backplane, enabling deterministic scan-cycle coordination between motion commands and ladder logic execution. This tight coupling between the motion module and the CPU ensures that position commands, fault responses, and I/O interlocks are processed within the same scan cycle, improving system responsiveness and reducing the risk of motion errors during process transitions.

The 1746-HSTP1 achieves its full potential when deployed within a complete SLC 500 control architecture. At the control layer, the 1747-L532 or 1747-L543 SLC 500 CPU manages ladder logic execution and coordinates motion commands to the stepper module via the 1746 backplane. Power integrity is maintained by the 1746-P2 or 1746-P4 power supply module, which provides regulated backplane voltage to all installed modules — a prerequisite for stable high-frequency pulse output from the 1746-HSTP1.

At the I/O layer, discrete input modules such as the 1746-IB16 (16-point 24VDC input) capture limit switch signals, home sensor feedback, and operator commands, while output modules like the 1746-OB16 drive auxiliary actuators, brake solenoids, and status indicators in synchronization with stepper motion sequences. For analog process feedback — such as load cell or encoder analog output — the 1746-NI4 analog input module can be co-located in the same chassis, enabling closed-loop process correction at the PLC level even when the stepper axis itself operates open-loop.

Communication expansion is handled through the 1747-SDN DeviceNet Scanner or the 1747-SCNR Remote I/O Scanner, allowing the SLC 500 system to extend its I/O footprint across distributed control cabinets or interface with variable frequency drives, smart sensors, and operator panels on the plant floor network. For HMI integration, the 2711-T10C8 PanelView 550 or 2711P-T10C4D8 PanelView Plus 1000 connects via DH-485 or DF1 protocol to the SLC 500 CPU, providing operators with real-time position status, fault diagnostics, and motion sequence control from a panel-mounted touchscreen.

In applications requiring relay output isolation — such as driving stepper drive enable signals or emergency stop circuits — the 1746-OW16 relay output module provides dry-contact switching within the same chassis, eliminating the need for external relay panels. For installations where signal isolation between the SLC 500 backplane and field devices is critical, inline signal isolators or the 1492-AIFM analog interface module family can be integrated at the terminal block level, protecting the 1746-HSTP1 output signals from field-side transients and ground loops.

Packaging and Labeling Lines: The 1746-HSTP1 is widely deployed in intermittent-motion packaging machinery — including label applicators, form-fill-seal machines, and carton erectors — where precise index distances and repeatable dwell positions are required at high throughput rates. The module's deterministic backplane communication with the SLC 500 CPU ensures that motion commands are synchronized with upstream and downstream conveyor interlocks, reject mechanisms, and vision system triggers without requiring a separate motion controller.

Manufacturing and Assembly Automation: In discrete manufacturing environments, the 1746-HSTP1 controls rotary indexing tables, pick-and-place gantries, and screw-driving stations where position accuracy within ±1 step is acceptable and servo-level feedback is not required. Its integration within the SLC 500 rack reduces panel wiring complexity and simplifies spare parts management for maintenance teams operating large fleets of similar machines.

Water and Wastewater Treatment: Valve actuator positioning and chemical dosing pump indexing in water treatment facilities benefit from the 1746-HSTP1's ability to execute pre-programmed move profiles triggered by process conditions monitored through co-located analog and discrete I/O modules in the same SLC 500 chassis. The module's robust operating temperature range and DIN rail mounting make it suitable for outdoor control panel installations in water infrastructure projects.

Mining and Material Handling: Conveyor diverter gates, weigh-belt feeders, and sampling system actuators in mining operations use the 1746-HSTP1 for reliable open-loop positioning in dusty, high-vibration environments. The SLC 500 platform's proven reliability in harsh industrial conditions, combined with the module's backplane-native architecture, reduces the risk of communication failures that can occur with externally networked motion controllers.

Process Control and Energy: In power generation and petrochemical facilities, the 1746-HSTP1 supports auxiliary positioning tasks — such as damper actuator control, valve sequencing, and metering pump indexing — within existing SLC 500 control systems, extending the useful life of installed platforms without requiring full system migration to newer architectures.

Q1: Is the 1746-HSTP1 compatible with all SLC 500 chassis and CPU combinations? The 1746-HSTP1 is compatible with all standard 1746-series chassis (1746-A4, A7, A10, A13) and is supported by SLC 500 CPUs from the 1747-L20 through the 1747-L553 series. It occupies a single I/O slot and is configured via RSLogix 500 using the module's dedicated configuration file. No additional communication interface is required — the module communicates directly over the SLC 500 backplane. Ensure the chassis power supply (1746-P1, P2, or P4) provides sufficient current budget when co-locating multiple I/O and specialty modules in the same rack.

Q2: What stepper drives and motors are compatible with the 1746-HSTP1 output signals? The 1746-HSTP1 outputs standard pulse-and-direction signals (5V differential or single-ended, depending on wiring configuration) compatible with the majority of two-phase and microstepping drives from manufacturers including Parker, Applied Motion, and Leadshine. The maximum output frequency of 250 kHz supports microstepping resolutions up to 25,000 steps/rev at moderate speeds. For high-resolution applications, verify the stepper drive's minimum pulse width specification against the 1746-HSTP1 output timing to ensure reliable step capture at maximum velocity.

Q3: What warranty and supply conditions apply to NANKMOS stock of the 1746-HSTP1? All 1746-HSTP1 units supplied by NANKMOS carry a 12-Month Warranty covering functional defects under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify pulse output integrity, backplane communication, and configuration register operation before dispatch. NANKMOS maintains in-stock inventory of the 1746-HSTP1 to support urgent replacement and project commissioning timelines. For volume orders, system integration packages, or cross-platform compatibility consultation, contact [email protected] or call +86 18359268345.
