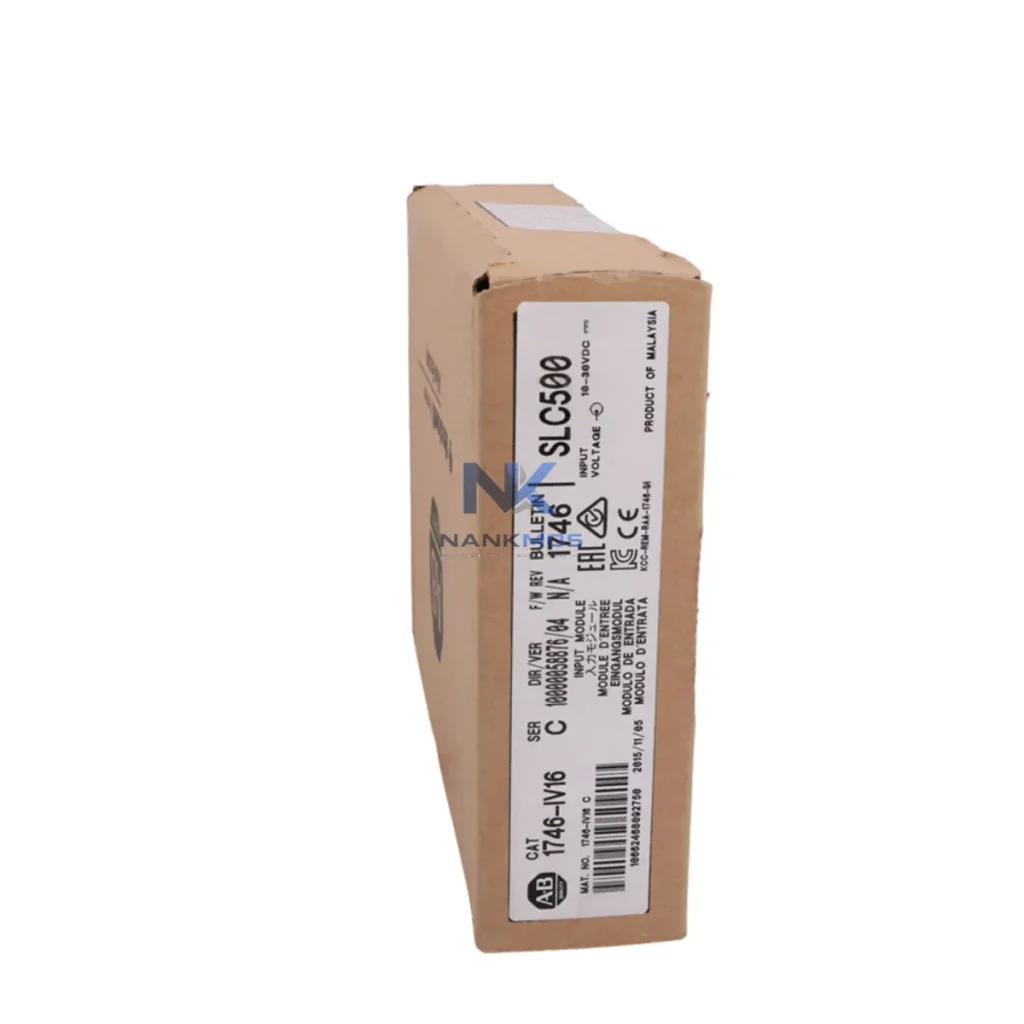

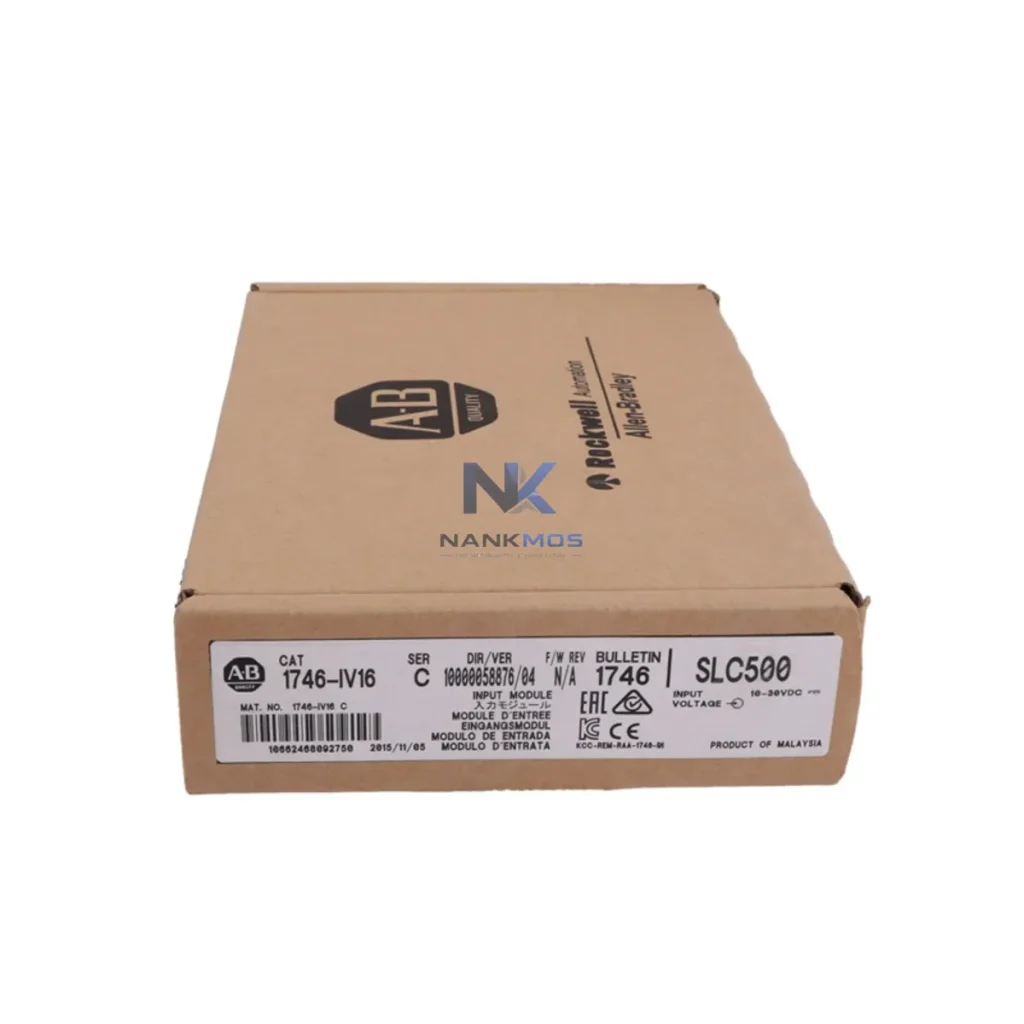

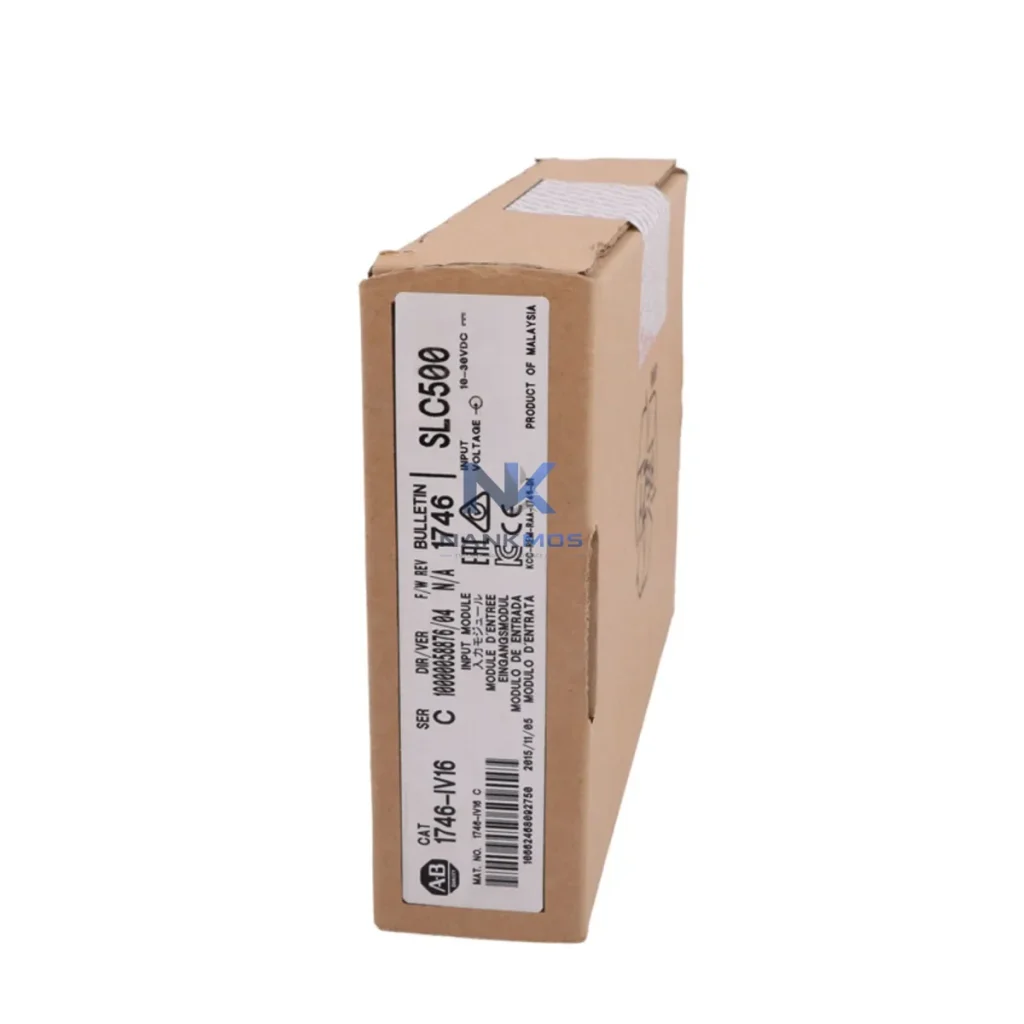

Allen-Bradley 1746-IV16 Digital Input Module

Product Details

1746-IV16 Product Description

The Allen-Bradley 1746-IV16 is a 16-point DC input module engineered for seamless integration within the SLC 500 modular control platform. Designed to serve as a reliable signal acquisition layer in distributed and centralized automation architectures, the 1746-IV16 delivers consistent digital input performance across demanding industrial environments. Whether deployed in a standalone SLC 5/03 or SLC 5/05 processor-based rack or as part of a multi-rack I/O expansion system, this module provides the signal density, electrical compatibility, and diagnostic transparency required for high-availability production lines.

In modern industrial control architecture, the digital input layer is not merely a passive signal receiver — it is the foundational interface between field devices and the control logic that governs process behavior. The 1746-IV16 fulfills this role with precision, supporting 24V DC field signals and providing optically isolated inputs that protect the backplane and processor from electrical transients, ground loops, and surge events common in manufacturing, energy, and process environments.

The 1746-IV16 achieves its full engineering value when deployed within a coherent SLC 500 control architecture. At the processor layer, the SLC 5/04 or SLC 5/05 CPU module manages ladder logic execution and coordinates all I/O data across the backplane. The 1746-IV16 feeds real-time field status — limit switches, proximity sensors, pushbuttons, and flow switches — directly into the processor's input image table, enabling deterministic scan-cycle response.

Power integrity is maintained by the 1746-P4 or 1746-P7 power supply module, which provides regulated 5V DC backplane power and 24V DC field power to support the input module's sensor supply requirements. In multi-rack configurations, the 1746-BAS or remote I/O adapter modules extend the I/O bus across physical distances, allowing the 1746-IV16 to be installed in expansion racks without compromising scan-cycle timing or signal fidelity.

On the output side, the 1746-OW16 relay output module or 1746-OB16 DC output module completes the discrete control loop, translating processor decisions into actuator commands. For analog process variables, the 1746-NI4 analog input module or 1746-NO4I analog output module can be co-installed in the same chassis, enabling mixed discrete-analog architectures within a single rack footprint.

Communication gateways such as the 1747-SDN DeviceNet Scanner or the 1747-AENTR EtherNet/IP adapter extend the SLC 500 platform into networked automation environments, allowing the 1746-IV16's input data to be shared with SCADA systems, MES platforms, or supervisory HMI stations running FactoryTalk View SE. Terminal block assemblies and pre-wired cable systems compatible with the 1746 wiring arm standard simplify field wiring and reduce commissioning time, while also supporting structured maintenance and future I/O reconfiguration without disturbing adjacent modules.

The 1746-IV16 is deployed across a broad spectrum of industrial sectors where reliable digital signal acquisition is critical to process integrity and operational continuity.

In discrete manufacturing environments — automotive assembly, electronics production, and packaging lines — the module monitors conveyor position sensors, part-present detectors, and safety interlock signals, feeding real-time status to the SLC 500 processor for sequencing and fault detection logic.

In power generation and electrical distribution facilities, the 1746-IV16 captures breaker status, relay feedback, and protection trip signals, providing the control layer with accurate switchgear state information essential for load management and fault isolation routines.

In water and wastewater treatment plants, the module interfaces with level switches, pump run-feedback contacts, and valve position indicators, supporting the SLC 500's role as a distributed process controller across pump stations and treatment stages.

In oil, gas, and petrochemical applications, the 1746-IV16 operates within hazardous-area-adjacent control panels, monitoring field device status across wellhead, pipeline, and refinery automation systems where signal reliability and electrical isolation are non-negotiable requirements.

In mining and metallurgical operations, the module supports crusher control, conveyor monitoring, and ore-handling automation, where high-vibration and electrically noisy environments demand robust input isolation and consistent scan-cycle performance.

Q1: Is the 1746-IV16 compatible with all SLC 500 chassis and processor generations?The 1746-IV16 is compatible with all standard SLC 500 modular chassis, including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 backplanes. It operates with all SLC 500 processor variants — SLC 5/01 through SLC 5/05 — and is addressed through the standard I/O configuration in RSLogix 500 or Studio 5000 Logix Designer (for legacy migration projects). No special firmware or configuration adapter is required for standard slot installation.

Q2: How does the 1746-IV16 support long-term maintenance and system expandability in aging SLC 500 architectures?The 1746-IV16's modular slot-based design allows hot-swap replacement within the chassis without disturbing adjacent modules or requiring full system shutdown in non-safety-critical applications. Its per-point LED indicators enable rapid field diagnostics, reducing mean-time-to-repair in production environments. For long-term architecture planning, the module's compatibility with remote I/O expansion racks and DeviceNet-networked configurations supports phased system expansion without requiring processor replacement. Our 12-Month Warranty covers the module against manufacturing defects and ensures post-shipment support for integration and commissioning queries.

Q3: What pre-shipment testing and quality assurance processes apply to the 1746-IV16?Each 1746-IV16 unit undergoes functional verification prior to shipment, including input channel continuity checks, optical isolation integrity testing, and backplane connector inspection. Units are tested for correct LED indicator operation across all 16 input points. Packaging is inspected for ESD protection compliance and physical integrity. The 12-Month Warranty commences from the date of shipment and covers defects in materials and workmanship. Technical support for installation, RSLogix 500 I/O configuration, and system architecture questions is available through our engineering team at [email protected].
