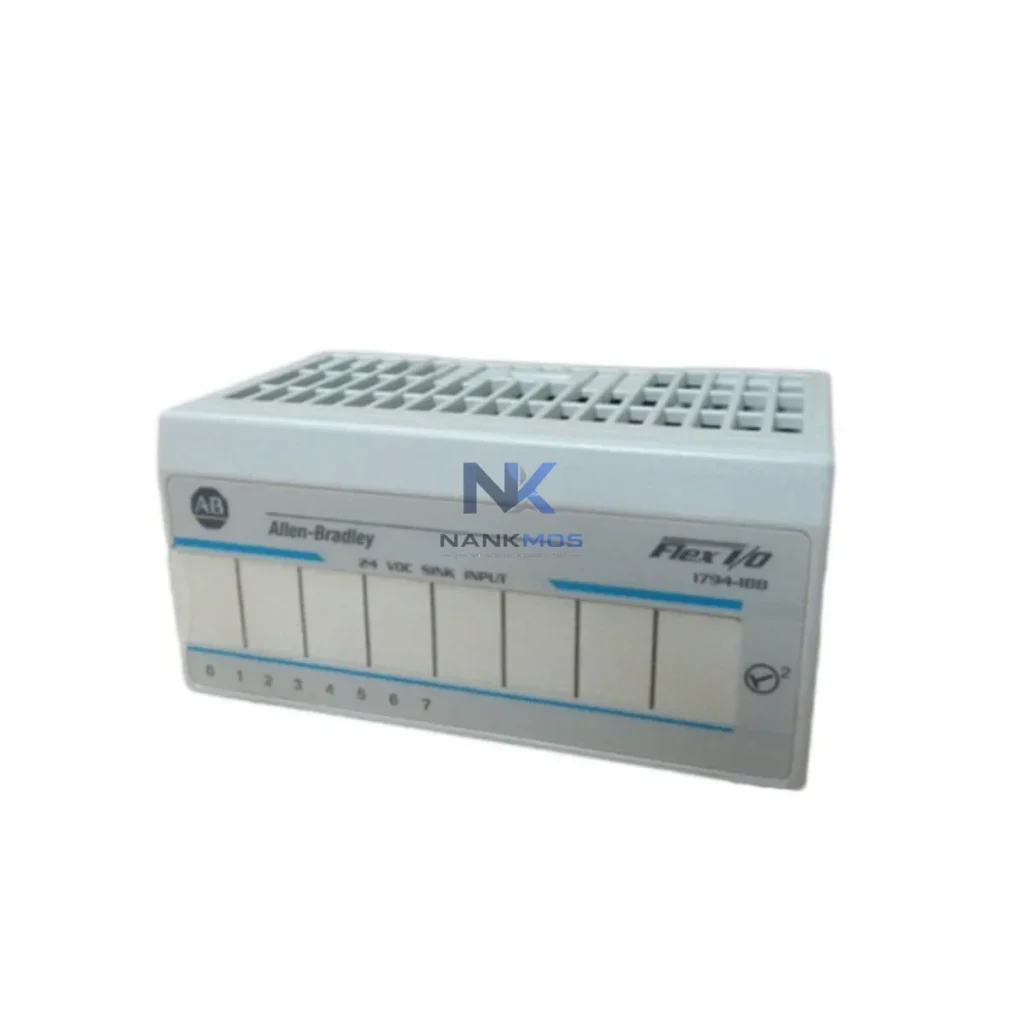

Allen-Bradley 1794-IB8 Digital Input Module

Product Details

1794-IB8 Product Description

The Allen-Bradley 1794-IB8 is an 8-point, 24VDC sourcing digital input module engineered for the Flex I/O platform — a distributed I/O architecture designed to deliver deterministic signal acquisition, modular scalability, and seamless integration across multi-tier industrial control systems. As a field-proven component in Allen-Bradley's ControlLogix, CompactLogix, and FlexLogix control ecosystems, the 1794-IB8 serves as a critical signal-entry node at the I/O layer, translating discrete field-level signals into structured data streams that feed directly into the control layer for real-time decision-making.

In modern automation architectures, the integrity of the I/O layer determines the reliability of the entire control loop. The 1794-IB8 addresses this requirement with robust input filtering, high-density channel grouping, and a compact DIN-rail-compatible form factor that minimizes panel footprint without sacrificing diagnostic transparency. Each channel provides individual LED status indication, enabling rapid visual fault isolation during commissioning and routine maintenance — a feature that directly reduces mean time to repair (MTTR) in high-availability production environments.

The 1794-IB8 is not a standalone component — it is a functional node within a layered automation architecture. Its value is fully realized when deployed alongside complementary modules and controllers that share the same Flex I/O backplane and ControlLogix control platform.

At the control layer, the 1794-IB8 interfaces directly with Allen-Bradley ControlLogix CPUs such as the 1756-L73 or 1756-L85E, which execute ladder logic and function block programs that consume the discrete input data delivered by the module. For smaller machine-level applications, the CompactLogix 1769-L33ER provides an equally capable control backbone with a reduced footprint. The controller's scan cycle processes the 1794-IB8's input states in real time, enabling deterministic response to field events such as limit switch closures, proximity sensor triggers, and pushbutton activations.

At the communications layer, the 1794-IB8 relies on a Flex I/O adapter to bridge backplane data to the plant network. The 1794-AENT EtherNet/IP adapter is the most widely deployed option, enabling the module to participate in a standard TCP/IP network topology alongside other EtherNet/IP devices. For legacy installations, the 1794-ADN DeviceNet adapter and 1794-ACN15 ControlNet adapter provide backward-compatible connectivity. These adapters determine the module's network identity, I/O connection parameters, and diagnostic reporting capabilities within the RSLogix 5000 / Studio 5000 programming environment.

At the power layer, the 1794-IB8 requires a stable 24VDC field power supply. The 1794-PS13 power supply module, mounted on the same Flex I/O rail, provides regulated field power to the I/O modules, ensuring consistent input threshold performance across all eight channels. For applications requiring power redundancy, dual-feed configurations using Allen-Bradley power conditioners or third-party 24VDC redundant PSUs are recommended to eliminate single points of failure at the power layer.

At the I/O expansion layer, the 1794-IB8 coexists on the same backplane with output modules such as the 1794-OB8 (8-point digital output) and analog modules such as the 1794-IE8 (8-channel analog input) or 1794-OE4 (4-channel analog output). This mixed-module configuration allows a single Flex I/O rack to serve as a complete field interface node — handling discrete inputs, discrete outputs, and analog signals within a unified backplane segment. The modular architecture supports up to 8 I/O modules per adapter, enabling high-density field wiring consolidation in junction box or marshalling cabinet installations.

At the HMI layer, operator interface terminals such as the PanelView Plus 7 (2711P series) connect via EtherNet/IP to the same ControlLogix controller that processes the 1794-IB8's input data. This allows operators to monitor real-time input states, acknowledge alarms triggered by discrete input transitions, and view historical trend data — all without requiring additional hardware between the HMI and the I/O module. The seamless data path from field sensor → 1794-IB8 → ControlLogix CPU → PanelView Plus 7 exemplifies the end-to-end integration that defines the Rockwell Automation Integrated Architecture.

At the protection layer, surge protection devices and signal isolators — such as the Phoenix Contact TRABTECH or Weidmüller ACT series — are commonly installed upstream of the 1794-IB8 input terminals in high-noise environments such as motor control centers, variable frequency drive (VFD) panels, and outdoor field junction boxes. These devices protect the module's input circuitry from transient overvoltages and ground loop interference, extending service life and reducing nuisance faults in electrically harsh installations.

Discrete Manufacturing: In automotive body-in-white and general assembly lines, the 1794-IB8 collects position feedback from inductive proximity sensors, photoelectric sensors, and mechanical limit switches mounted on robotic tooling, conveyor systems, and fixture clamps. The module's 1 ms input filter eliminates contact bounce artifacts, ensuring that the ControlLogix controller receives clean, debounced input signals that accurately reflect the physical state of each tooling element. This signal fidelity is essential for maintaining cycle time consistency and preventing false-positive fault conditions that would trigger unnecessary line stops.

Power Generation and Utilities: In substation automation and power plant auxiliary systems, the 1794-IB8 monitors discrete status signals from circuit breakers, motor starters, isolation switches, and protection relay output contacts. The module's 500VAC field-to-backplane isolation provides the electrical separation required by IEC 61850 and NERC CIP compliance frameworks, ensuring that high-voltage transients on the field wiring cannot propagate into the control system backplane. The EtherNet/IP adapter enables integration with SCADA systems via standard OPC-UA or Modbus TCP gateways.

Oil, Gas, and Petrochemical: In process plant control rooms and remote field panels, the 1794-IB8 interfaces with solenoid valve position feedback, emergency shutdown (ESD) system input contacts, and process interlock signals. When deployed in SIL-rated safety architectures, the module is typically paired with a dedicated safety PLC (such as the Allen-Bradley GuardLogix 1756-L7SP) for the safety-critical signal path, while the 1794-IB8 handles non-safety process monitoring inputs on the standard control network.

Water and Wastewater Treatment: In pump station and filtration plant control panels, the 1794-IB8 collects run/stop status from motor control centers, high/low level float switch signals, and valve open/closed position feedback. The module's compact form factor and DIN-rail mounting make it well-suited for installation in NEMA 4X stainless steel enclosures used in wet process environments. Remote I/O capability via EtherNet/IP eliminates the need for long home-run cable runs from field devices to the central control room.

Mining and Metals: In conveyor drive systems, crusher control panels, and ore processing lines, the 1794-IB8 monitors belt alignment switches, pull-cord emergency stops, speed sensor outputs, and bearing temperature switch contacts. The module's wide operating temperature range (0°C to +55°C) and vibration tolerance make it suitable for installation in mobile equipment control panels and fixed plant junction boxes exposed to mechanical shock and ambient temperature variation.

Q1: Which Flex I/O adapters are compatible with the 1794-IB8, and how does adapter selection affect network topology? The 1794-IB8 is compatible with all standard 1794-series adapters, including the 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), 1794-ACN15 (ControlNet), and 1794-ACNR15 (redundant ControlNet). Adapter selection determines the network protocol, connection type (cyclic, change-of-state, or polled), and the module's integration path into the Studio 5000 project. For new installations, the 1794-AENT is recommended for its standard TCP/IP compatibility, web-based diagnostics, and support for Device Level Ring (DLR) topology, which provides network-level redundancy without additional hardware.

Q2: Can the 1794-IB8 be used in a redundant control architecture, and what configuration is required? Yes. In ControlLogix redundancy systems using the 1756-RM2 redundancy module, the 1794-IB8 can be connected via a 1794-ACNR15 redundant ControlNet adapter, which provides dual-path communication to the primary and secondary controller chassis. Alternatively, in EtherNet/IP architectures, DLR topology with the 1794-AENT adapter provides ring-based network redundancy. The module itself does not require special configuration for redundant operation — the redundancy logic is managed at the adapter and controller level within the Studio 5000 redundancy configuration.

Q3: What warranty and supply assurance does NANKMOS provide for the 1794-IB8? NANKMOS provides a 12-Month Warranty on all 1794-IB8 units, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify input channel integrity, backplane communication, and LED indicator operation. NANKMOS maintains ready stock of the 1794-IB8 to support urgent replacement requirements, with standard lead times of 3–7 business days for international shipments. For volume procurement or long-term supply agreements, contact [email protected] or call +86 18359268345 to discuss inventory reservation and pricing.
