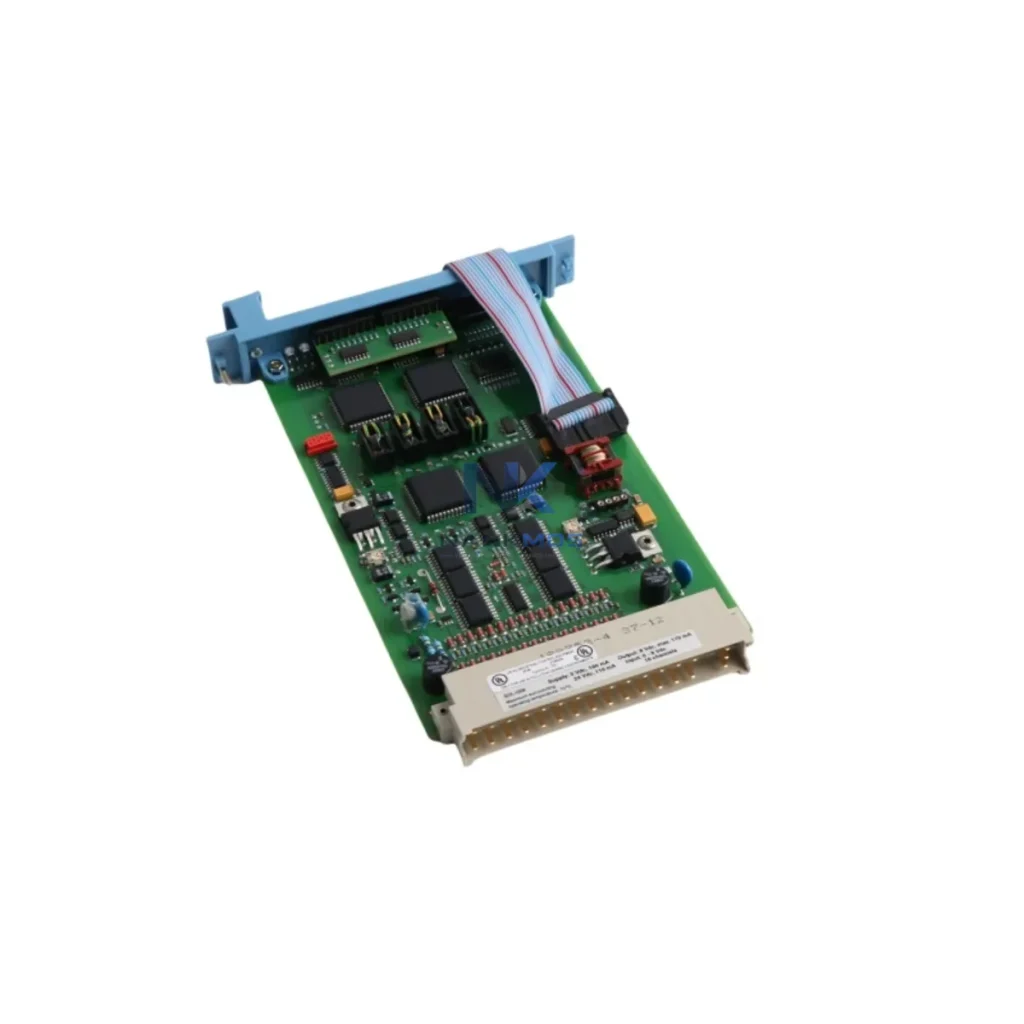

Honeywell FS-SMSB-ST-120 FTE Safety Communication Module

Product Details

FS-SMSB-ST-120 Product Description

The Honeywell FS-SMSB-ST-120 is a Fault Tolerant Ethernet (FTE) Safety Communication Module engineered for Honeywell Safety Manager (SM) systems deployed in process-critical and safety-instrumented environments. Designed to bridge field-level safety logic with plant-wide supervisory networks, the FS-SMSB-ST-120 delivers deterministic, redundant Ethernet communication across the full automation stack — from field devices and safety PLCs to SCADA platforms, HMI workstations, and enterprise data systems.

In modern smart factory architectures, safety systems can no longer operate as isolated islands. The FS-SMSB-ST-120 addresses this directly by enabling the Safety Manager controller to participate in the plant's FTE backbone — a dual-redundant, fault-tolerant Ethernet network that ensures continuous data flow even during single-path failures. This makes it a foundational component for facilities pursuing integrated safety and process control, where real-time visibility into safety loop status, alarm states, and diagnostic data is essential for both operational efficiency and regulatory compliance.

The FS-SMSB-ST-120 sits at the intersection of safety logic execution and plant-wide data communication. In a typical smart factory deployment, field instruments — pressure transmitters, temperature sensors, gas detectors, and final control elements such as solenoid valves — feed their signals into the Honeywell Safety Manager SM controller, where safety logic is executed in accordance with IEC 61511 SIL requirements. The FS-SMSB-ST-120 module then carries the resulting status data, alarm states, and diagnostic information across the FTE network to upstream systems.

At the supervisory layer, Honeywell Experion PKS servers receive real-time safety system data via the FTE backbone, enabling operators to monitor safety loop integrity, view bypass states, and track trip histories from a unified SCADA/HMI console. This eliminates the traditional gap between the safety instrumented system (SIS) and the basic process control system (BPCS), giving control room engineers a single-pane view of both process and safety data.

For facilities running mixed automation environments, the FS-SMSB-ST-120 supports OPC DA/UA data publishing, allowing third-party SCADA platforms, historian servers such as the Honeywell Uniformance PHD, and MES systems to subscribe to safety system tags without requiring proprietary integration middleware. This is particularly valuable in brownfield sites where legacy DCS platforms — including Honeywell TPS/TDC 3000 nodes — must coexist with modern Safety Manager deployments.

Remote I/O expansion within the Safety Manager architecture is handled through dedicated I/O modules such as the FS-SDO-0824 digital output module and FS-SDI-1624 digital input module, which communicate with the SM controller over the internal safety bus. The FS-SMSB-ST-120 then aggregates this I/O data and presents it to the FTE network, enabling remote diagnostic access to individual channel states, fault codes, and module health indicators — all without requiring a technician to be physically present at the marshalling cabinet.

In edge computing scenarios, the FTE network can interface with Honeywell Connected Plant edge gateways, which buffer and forward safety system data to cloud-based analytics platforms. This supports predictive maintenance workflows where safety valve cycle counts, trip frequency trends, and sensor drift patterns are analyzed to anticipate failures before they trigger unplanned shutdowns. The FS-SMSB-ST-120's deterministic FTE communication ensures that edge gateway data subscriptions receive consistent, timestamped updates — a prerequisite for reliable anomaly detection algorithms.

For alarm management and remote diagnostics, the module's integration with Experion PKS enables configuration of safety-specific alarm priorities, suppression logic, and audit trails compliant with IEC 62682 and EEMUA 191 standards. Maintenance teams can remotely interrogate the Safety Manager's diagnostic registers via the FTE link, retrieving module-level fault data, communication error counters, and redundancy switchover logs — reducing mean time to repair (MTTR) and supporting continuous improvement in safety system availability.

Protocol Fragmentation: Many process plants operate with a mix of legacy serial protocols — Modbus RTU, HART, Foundation Fieldbus — alongside modern Ethernet-based systems. The FS-SMSB-ST-120, as part of the Safety Manager FTE architecture, provides a standardized Ethernet gateway that consolidates safety system data into OPC-compatible formats, eliminating the need for custom protocol converters between the SIS and SCADA layers.

Data Silos Between SIS and BPCS: Historically, safety systems were deliberately isolated from process control networks for security and integrity reasons. The FS-SMSB-ST-120 enables controlled, read-only data sharing from the Safety Manager to the Experion PKS BPCS via the FTE backbone, maintaining SIL integrity while giving process engineers visibility into safety system states — breaking down the data silo without compromising functional safety boundaries.

Remote Monitoring in Hazardous Areas: For offshore platforms, remote pipeline stations, and unmanned substations, physical access to safety system cabinets is costly and sometimes impossible. The FTE connectivity provided by the FS-SMSB-ST-120 enables full remote diagnostics — including module health checks, communication status, and I/O channel verification — via the plant's WAN or satellite link, reducing the need for on-site inspection visits.

Production Line Transparency and Alarm Tracking: In continuous process industries such as refining, petrochemicals, and LNG, safety system alarm floods can obscure root-cause analysis. By integrating Safety Manager alarm data into the Experion PKS alarm management system through the FS-SMSB-ST-120 FTE link, facilities can implement rationalized alarm prioritization, shelving workflows, and long-term alarm KPI tracking — directly supporting ISA-18.2 compliance programs.

System Scalability: As production capacity expands, additional Safety Manager cabinets and I/O modules can be added to the FTE network without disrupting existing communication paths. The FS-SMSB-ST-120's plug-in architecture within the SM chassis supports incremental system growth, making it a future-proof investment for facilities planning phased automation upgrades.

Q1: What communication protocols does the Honeywell FS-SMSB-ST-120 support?The FS-SMSB-ST-120 operates on Honeywell's Fault Tolerant Ethernet (FTE) protocol, which provides dual-redundant Ethernet communication with automatic failover. It also supports OPC DA/UA data publishing and Modbus TCP for integration with third-party SCADA, historian, and MES systems. This makes it compatible with a wide range of industrial automation platforms beyond the Honeywell ecosystem.

Q2: How does the FTE network ensure communication stability and redundancy?FTE uses two independent Ethernet paths operating simultaneously. If one path experiences a fault — due to cable damage, switch failure, or electromagnetic interference — the system automatically continues on the surviving path with no data loss or communication interruption. This deterministic failover behavior is critical for safety-instrumented systems where communication gaps could mask alarm conditions or delay safety responses.

Q3: Can the FS-SMSB-ST-120 be used for remote diagnostics without on-site access?Yes. When connected to the FTE backbone and integrated with Experion PKS or a compatible OPC client, the FS-SMSB-ST-120 exposes Safety Manager diagnostic registers remotely. Maintenance engineers can retrieve module fault codes, communication error logs, redundancy switchover histories, and I/O channel states from any networked workstation — supporting remote troubleshooting for unmanned or hazardous-area installations.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the FS-SMSB-ST-120?Every Honeywell FS-SMSB-ST-120 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify communication integrity, module identification, and hardware condition before dispatch. In-stock units are available for immediate shipment, supporting urgent maintenance and unplanned replacement scenarios in process plant environments.
