Honeywell FS-TSHART-1620m Safety Controller

Product Details

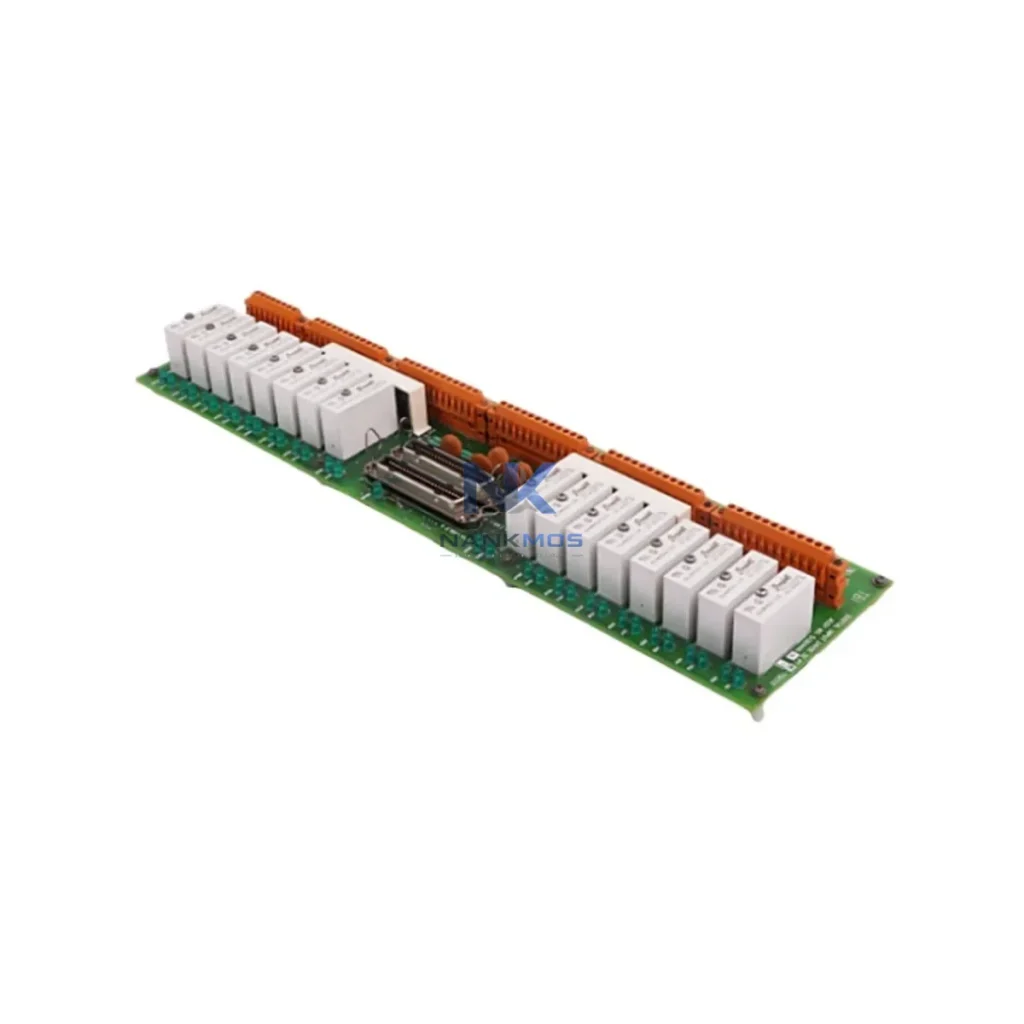

FS-TSHART-1620m Product Description

The Honeywell FS-TSHART-1620M is a high-integrity, SIL 3-rated safety controller engineered for demanding industrial environments where energy efficiency, load management, and production continuity are mission-critical. As part of Honeywell's proven Safety Manager FS Series, the FS-TSHART-1620M delivers deterministic control logic execution with built-in diagnostics that actively reduce unnecessary energy consumption, minimize thermal load on control cabinets, and stabilize production line throughput across continuous process, discrete manufacturing, and hybrid automation architectures.

Designed for integration into modern energy management systems, the FS-TSHART-1620M operates as a central safety and control node that coordinates energy-aware shutdown sequences, load-shedding routines, and equipment state feedback — enabling plant engineers to achieve measurable reductions in idle-state power draw without compromising functional safety integrity.

The FS-TSHART-1620M is engineered to function as the safety backbone of a power-aware automation architecture. In a typical smart production line deployment, it interfaces directly with the Honeywell Safety Manager SC main controller chassis, receiving real-time process data from field-level Honeywell FS-SDO-0824 digital output modules and FS-SAI-1620M analog input modules to execute energy-optimized safe-state transitions without triggering unnecessary full-plant shutdowns.

On the drive side, the FS-TSHART-1620M communicates safe-stop and speed-reduction commands to variable frequency drives (VFDs) — such as those in the Honeywell or compatible third-party drive families — via hardwired safety relays or PROFIBUS DP, enabling controlled motor deceleration that reduces inrush current spikes and associated thermal stress on both the drive and motor windings. This coordinated approach to motor control directly lowers energy consumption during production transitions and shift changeovers.

For power monitoring, the controller integrates with power measurement modules and energy metering gateways connected to the plant's SCADA layer, allowing operators to correlate safety events with energy consumption trends in real time. When paired with Honeywell Experion PKS or equivalent DCS platforms, the FS-TSHART-1620M enables automated load-shedding sequences that prioritize critical process equipment while safely de-energizing non-essential loads — a key strategy for reducing peak demand charges in energy-intensive facilities.

At the I/O level, the module works alongside Honeywell FS-SDI-1620M digital input modules to monitor equipment status signals from sensors, pressure transmitters, and thermal detectors. These inputs feed the controller's safety logic, which can trigger pre-emptive load reduction before a thermal trip occurs — protecting both the equipment and the energy budget. Communication to the plant HMI layer is handled through the Safety Manager's integrated Modbus TCP gateway or dedicated OPC-UA communication modules, ensuring that energy and safety data are visible to operators on the control room display in real time.

In high-throughput manufacturing and process environments, unplanned safety trips are among the most costly sources of energy waste — not because of the trip itself, but because of the energy consumed during uncontrolled restarts, equipment re-homing cycles, and thermal recovery periods. The Honeywell FS-TSHART-1620M addresses this directly by executing structured, logic-driven safe-state sequences that bring equipment to a controlled low-energy standby condition rather than a hard de-energization.

This approach delivers several measurable production line benefits. First, it reduces the frequency and duration of full-line restarts by enabling partial-zone safe states — only the affected segment of the production line enters a safe condition while adjacent zones continue operating. Second, the controller's high-speed diagnostic cycle (typically sub-10ms) detects developing faults before they escalate, allowing maintenance teams to intervene during scheduled windows rather than during peak production hours. This predictive maintenance posture directly reduces unplanned downtime and the associated energy cost of emergency restarts.

Third, by coordinating with servo drives and VFDs through hardwired or fieldbus safety channels, the FS-TSHART-1620M enables Safe Torque Off (STO) and Safe Stop 1 (SS1) functions that bring motors to a controlled stop without full power removal — preserving drive state and eliminating the energy overhead of drive re-initialization. For facilities operating multiple production shifts, this capability alone can represent a significant reduction in daily energy consumption.

The module is stocked and available for fast global dispatch. Each unit undergoes functional testing and output verification prior to shipment, ensuring that the FS-TSHART-1620M arrives ready for immediate integration into your safety and energy management architecture. With a 12-month warranty covering both hardware integrity and functional performance, procurement teams can plan with confidence across project timelines.

Q1: How does the FS-TSHART-1620M contribute to measurable energy savings on a production line? The FS-TSHART-1620M reduces energy waste by executing structured safe-state sequences that avoid hard shutdowns and uncontrolled restarts. By enabling partial-zone safe states and coordinating STO/SS1 functions with connected drives, it minimizes the energy overhead of restart cycles and reduces idle-state power draw across the line. Integration with power monitoring modules and SCADA systems allows plant engineers to quantify these savings in real time.

Q2: Which control systems and communication protocols is the FS-TSHART-1620M compatible with? The FS-TSHART-1620M is designed for use within the Honeywell Safety Manager FS Series architecture and supports PROFIBUS DP, Modbus RTU/TCP, and OPC-UA communication pathways. It is compatible with Honeywell Experion PKS DCS platforms and can be integrated into third-party SCADA environments via standard industrial communication gateways. For specific protocol compatibility with your existing control platform, contact our technical team prior to ordering.

Q3: Can the FS-TSHART-1620M replace an existing safety controller in a running system, and what is the recommended replacement process? Direct replacement is possible within the Safety Manager FS Series chassis, provided the replacement unit matches the original module's firmware revision and I/O configuration. The recommended process includes: (1) exporting and backing up the existing safety application, (2) performing a controlled safe-state shutdown of the affected zone, (3) installing the FS-TSHART-1620M and verifying hardware diagnostics, and (4) reloading and validating the safety application before returning the zone to production. Our team can provide pre-shipment configuration support upon request.

Q4: What does the 12-month warranty cover, and how is inventory availability managed for critical projects? The 12-month warranty covers hardware defects and functional performance failures under normal operating conditions. Each unit is tested and output-verified prior to shipment. For critical projects with defined installation windows, we recommend confirming stock availability and lead times at the time of inquiry. Priority allocation is available for time-sensitive procurement. Contact [email protected] or +86 18359268345 to confirm current inventory status and arrange expedited dispatch.
